1, equipment introduction
This equipment is used for the longitudinal cutting of positive and negative electrode slices after nickel, nickel, cadmium, lithium ion and other batteries coating, with neat section edges, no burrs, high dimensional precision and no dedusting. It is an important equipment in the processing of battery electrode slices.
2, Equipment featuresThis machine is composed of upper and lower hob, gear, pulley, reducer, motor and frame.The main parts are the upper and lower hob, which is composed of the interval with the rubber knife.Features:
A)simple structure, convenient installation and debugging.The machine is provided with the cutting pole size by the buyer. The hob can be customized according to the size.
B) simple operation, users only need to pay attention to safety can use;
C) high cutting precision and less dedusting.The cutting size is determined by the knife making without adjustment.
D) simple and clear maintenance, few wearing parts and reliable work.
3, technical parameters
motor power: 0.75kw 1400 RPM;
B) speed ratio of reducer: 20:1;
C) hob linear speed: 20m/ min;
D) hob diameter: 84 mm Ø;
E) rolling width: user's own;
F) maximum roll cutting width: 500mm;
G) weight: about 200KG;
H) overall size: length: 850× width: 620× height: 1000 (mm)

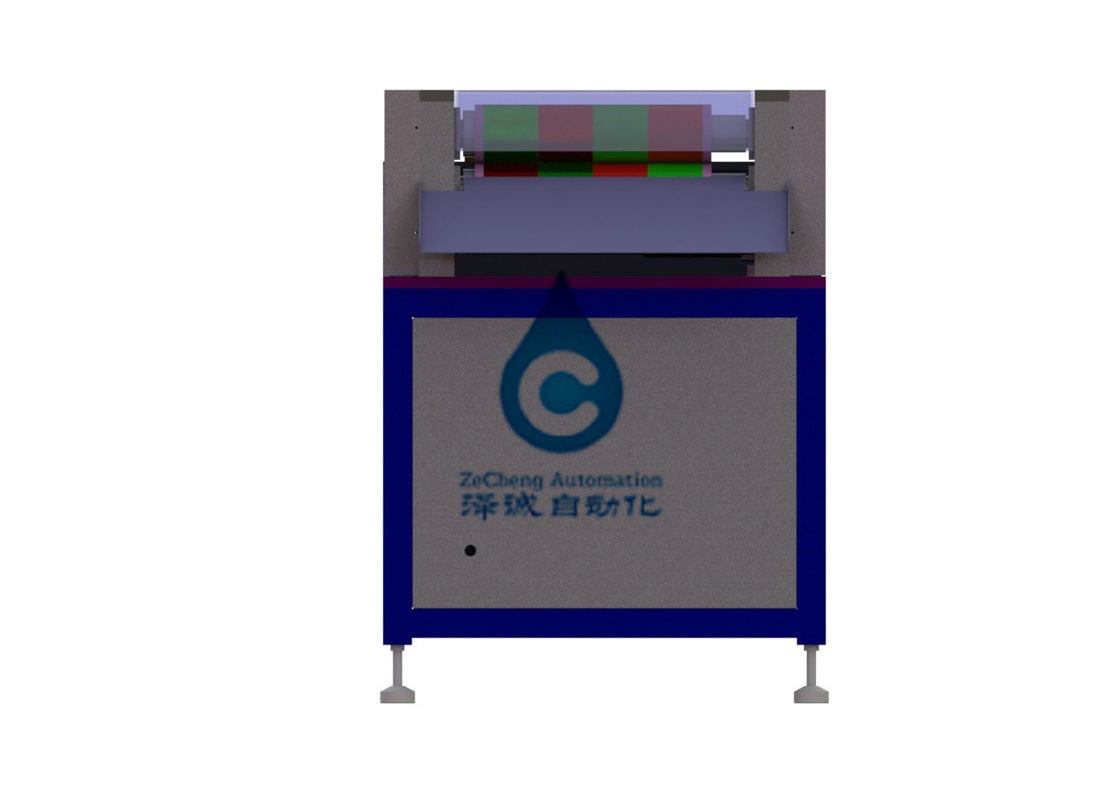

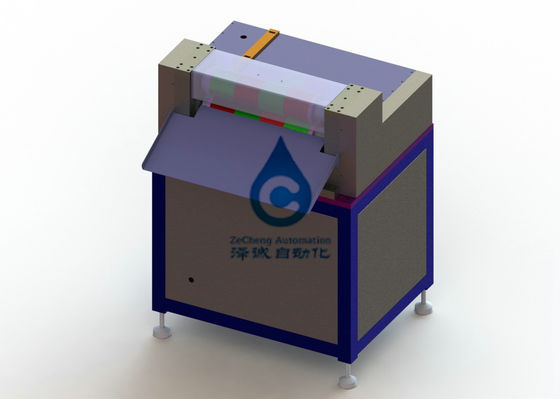

4. Equipment schematic drawing (for reference only)
