Lithium-Ion Battery Pack BMS Testing Machine

MOQ:	1 pcs
Price:	1000-100000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	5-15days
Payment Method:	L/C,D/A,D/P,T/T
Supply Capacity:	100 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

PBTS24-120

Number Of Test Series:

1-24 Series

Payment:

L/C D/A D/P T/T Western Union

Delivery Time:

7-15days

Product Description

Lithium-Ion Battery Pack BMS Testing Machine

Product description:

The battery pack BMS test system is mainly used to test various functional indicators of the lithium-ion battery BMS, evaluate whether the various parameters are within the design range, and then judge whether the BMS are qualified and usable.

Features:

1. With BMS short-circuit protection test function, it refers to the real short-circuit protection test, microsecond level.

2. It has a single string self-consumption current test function, which refers to the cell current consumed by each string protection board.

3. It has balanced current and balanced voltage test functions, can accurately test the balanced current and balanced voltage.

Specication:

Test Items	Test Scope	Accuracy
Number of test series	1-24 series
Reference voltage	LiCoO2(3.8V) LiFePO4(3.0V)
Overcharge protection voltage	0.5-5V	±5mV
Over discharge protection current	1-120A	±0.1A
Equalizing opening voltage	0.5-5V	±5mV
Over discharge protection delay	0-20S	±1mS
Short circuit protection (More than 6 series)	0-9999us	±1uS
Application	All hardware scheme protection boards and some software boards in the market (Special test items need to be communicated)

Picture:

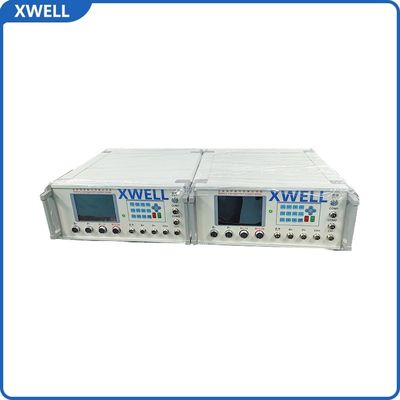

Lithium-Ion Battery Pack BMS Testing Machine 0
