Lithium Battery Pack 1-24 Series Protective Plate PCB Tester
  • name

Lithium Battery Pack 1-24 Series Protective Plate PCB Tester

MOQ: 1 pcs
Price: 1000-100000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 5-15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 100 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
PBTS24-120
Number Of Test Series:
1-24 Series
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
7-15days
Product Description

Lithium Battery Pack 1-24 Series Protective Plate PCB Tester



3 Types of protection boards supporting the test: LiFePO4,LiMn2O4,LiCoO2



3. Technical Parameter

3.1 High current module: The current level is 120A and the current accuracy is 0.1A.
3.2 Voltage module: Voltage range 0.5-5V, programmable output 0.5-5V, voltage accuracy
5mV.
3.3 Short circuit module: Super capacitor, which fully simulates the pack battery voltage,
instantly short circuits the protection board, and accurately captures the short-circuit time and

current.


Specication:
Test Items Test Scope Accuracy
Number of test series 1-24 series
Reference voltage LiCoO2(3.8V) LiFePO4(3.0V)
Overcharge protection voltage 0.5-5V ±5mV
Over discharge protection current 1-120A ±0.1A
Equalizing opening voltage 0.5-5V ±5mV
Over discharge protection delay 0-20S ±1mS
Short circuit protection (More than 6 series) 0-9999us ±1uS
Application All hardware scheme protection boards and
some software boards in the market (Special test items need to be communicated)

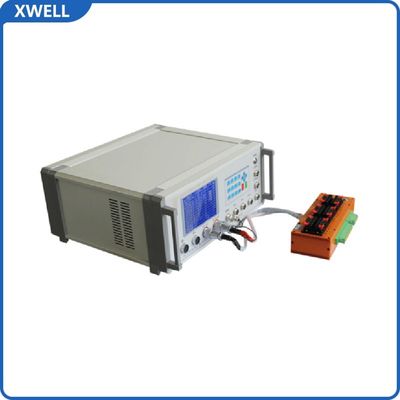

Picture:

Lithium Battery Pack 1-24 Series Protective Plate PCB Tester 0

Tags:

battery testing equipment,

battery tester,

battery testing machine
