Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester
  • name

Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester

MOQ: 1 pcs
Price: 1000-100000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 5-15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 100 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
PBTS24-120
Number Of Test Series:
1-24 Series
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
7-15days
Product Description

Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester



2. Main Performance
2.1 Routine test items:
Internal resistance test, overcharge and discharge test, overcharge recovery, overcharge and
discharge recovery test, overcurrent test (Charging overcurrent and discharge overcurrent),
overcharge protection voltage, overcharge recovery voltage, overcharge and discharge

protection voltage, overcharge recovery voltage, overcurrent protection, etc.

2.2 Special test items:
Short circuit protection test (Refers to the real short circuit protection test of microsecond level).
Single section self power consumption test (Refers to the true and accurate self power
consumption of each section).
Equalizing current and equalizing voltage (Can accurately grasp the equalizing current and
equalizing opening voltage).
Infrared scanning (Bar code scanning) scans the ID number of each protection board and stores

the record.


Specication:
Test Items Test Scope Accuracy
Number of test series 1-24 series
Reference voltage LiCoO2(3.8V) LiFePO4(3.0V)
Overcharge protection voltage 0.5-5V ±5mV
Over discharge protection current 1-120A ±0.1A
Equalizing opening voltage 0.5-5V ±5mV
Over discharge protection delay 0-20S ±1mS
Short circuit protection (More than 6 series) 0-9999us ±1uS
Application All hardware scheme protection boards and
some software boards in the market (Special test items need to be communicated)
Picture:

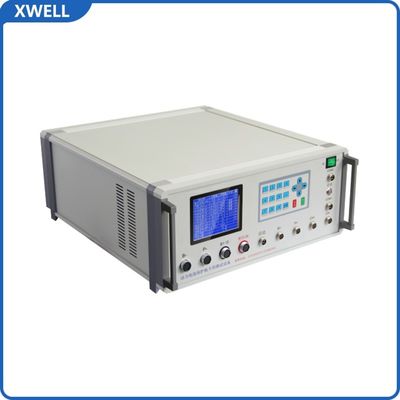

Lithium Battery Pack 1-24 Series Protective Plate (BMS) PCB Tester 0
