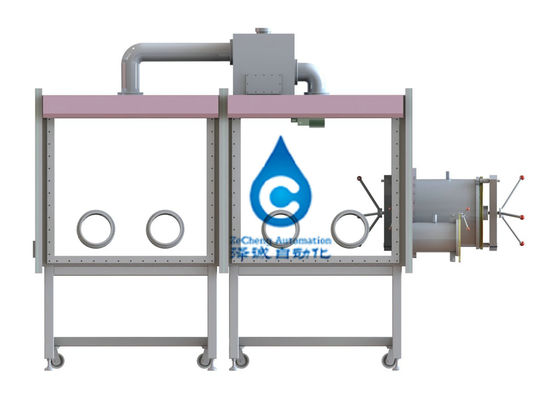

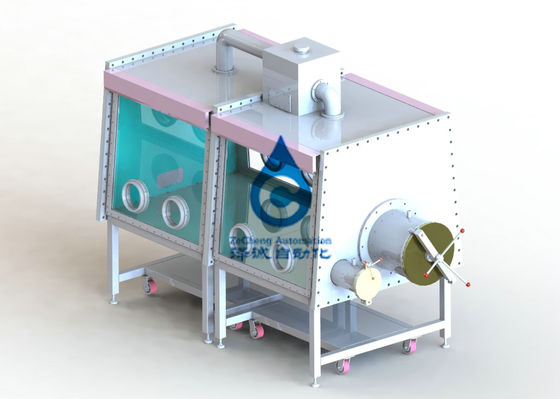

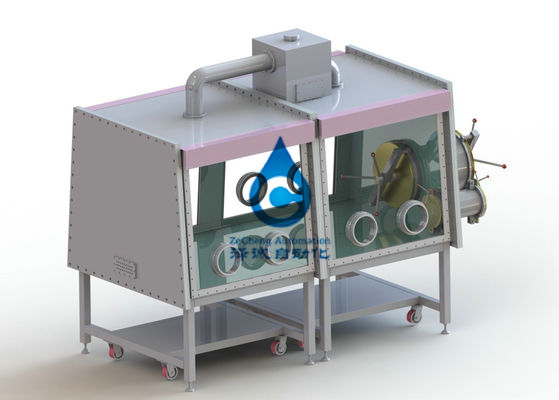

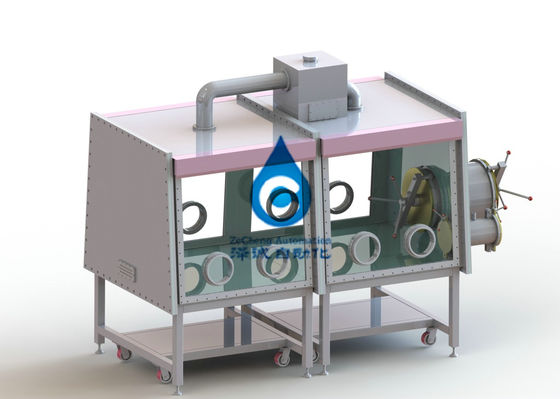

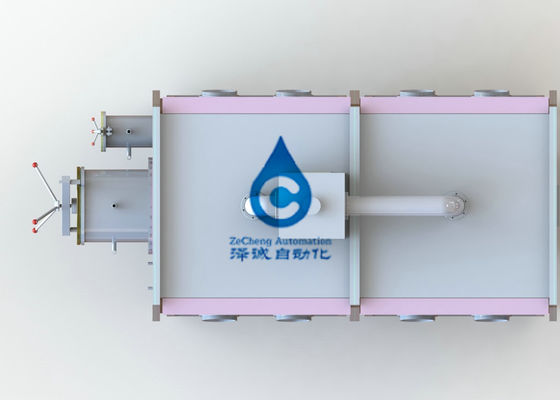

1, the box body 1.1,size: two glove boxes of 1220mm (length) ×900mm (height) ×750mm (bottom width) are connected by a t-shaped transition cabin in the middle. 1.2 material: all stainless steel structure (Type 304), thickness 3mm. 1.3 glove mouth: diameter: ∅220mm, hard aluminum alloy material, after anti-corrosion treatment. 1.4 gloves: American North, caliber 8 inches, thickness 0.4 mm, butyl rubber material. 1.5 window: inclined operating surface, detachable 8 mm safety toughened glass front window, wear resistance, corrosion resistance, good light transmittance, seal ring with 3/8 inch thick OMEGA seal ring. 1.6 certain positive and negative pressure (-12mbar -12mbar) can be maintained when used. 1.7 the cabinet is equipped with anti-reflection lighting energy-saving lamps with soft light. 1.8 one porous power strip is preset in the box (power supply: 220V±10% 50Hz±10%) 1.9 the cabinet is equipped with several standard kf-40 interfaces for easy access to liquid, gas and signal. 1.10 there are 2 shelves in the box. 1.11 bracket: casters included, 950mm high.Casters have the functions of leveling, moving and fixing.
2. Transition cabin 2.1 shape: T (304 stainless steel), connected with glove box, controlled by valve. 2.2 size: 360 mm diameter, 600 mm long transition tank, piston, transition for slide tray, polishing, case a small transition tank, the other set specifications for: Ф 100 mm x 300 mm. 2.3 pallet: stainless steel 300mm ×450mm, free to move and extend (large transition cabin configuration). 2.4 vacuum degree: ≤ -0.1mpa (large and small right transition tanks require the vacuum belt display), the vacuum pressure gauge is selected from Germany . 3. Control system 3.1 methods: including self-diagnosis, power failure and self-starting features, with pressure control and adaptive functions.Automatic control, circulation control, password protection, vacuum chamber control with LCD display.Control unit adopts German Siemens PLC touch screen, operation menu optional: Chinese. 3.2 pressure control: control the pressure of the cabinet and transition cabin at a certain set value. 3.3 foot pedal: can control the pressure of glove box, easy to operate. 4. Circulating purification system 4.1 control: water, oxygen <1ppm, designed purification column absorption capacity: water 1.3kg oxygen 30 liters. 4.2 adjustment device: PLC touch adjustment (heating, extraction, purification, regeneration), the whole process without human monitoring. 4.3 working gas: N2 or Ar (gas cycle). 4.5 circulating fan: German Siemens high-speed variable frequency fan, flow rate 0-100m3 / h, microprocessor control, pressure tested stainless steel device. 4.6 single purification column: German BASF deoxidizing material, American UOP highly effective water absorbing material. 4.7 cleaning valve: Burkert, Germany, fully automatic electropneumatic valve.Modular design. 4.8 filter: high efficiency filter with 0.3 micron aperture filter mesh according to HEPA standard. 5,Regenerative systemUsed for reusing and activating the purification system;Regeneration requires a mixture of N2/H2 or Ar/ H2, of which H2 accounts for 5-10%. 6. Display systemThe control unit adopts German Siemens PLC touch screen, operation menu: Chinese. 7. Vacuum systemAutomatic pneumatic electroplating plate;The vacuum pump adopts the British Edwards vacuum pump, and the flow rate is 8m/h.The transition chamber can be vacuumed separately and controlled separately at any time.
