512 Channel 5V 3A 5A 6A Cylindrical Battery Capacity Tester Grading Machine

512 Channel 5V 3A 5A 6A Cylindrical Battery Capacity Tester Grading Machine

Battery Tester with recaperate energy during discharger cycle functiont is the latest generation of energy-saving battery formation detection equipment based on PWM high-frequency power feedback technology, which has been developed by our company for many years and launched in 2013. It can be widely used in the production and testing of lithium-ion battery, nickel metal hydride nickel cadmium battery. This series of equipment completely subverts the working principle and power consumption mode of the traditional battery forming and testing equipment. Compared with the traditional secondary battery forming and capacity dividing equipment, the electric power is saved by 40% when the battery is used for charging, and the comprehensive power saving efficiency is more than 60%.

At present, Energy-saving power battery automatic detection equipment has been widely used in many domestic well-known manufacturers of lithium-ion batteries and Ni MH Ni Cd batteries, and is well received. From the perspective of application, the operation effect is very good. It is superior to other similar products in the current market in terms of power saving effect, power harmonic quality, heating capacity, reliability and stability of equipment and battery capacity sharing effect.

2. Product features

(1) Subverting the traditional battery charging and discharging mode

▲ The traditional linear regulated power supply charging mode is changed to PWM switching chopping charging mode, which greatly improves the charging conversion efficiency of the battery;

▲ The discharged electric energy of the battery is recycled to the AC power grid by the electric energy feedback technology to realize the electric energy reuse, which effectively overcomes the shortcomings of the traditional battery discharge mode. The traditional mode of discharge is to convert the discharged electric energy of the battery into heat and waste it.

▲ On the realization method of electric energy feedback, the high-frequency PWM rectifier technology can realize bidirectional energy transfer, which is ingeniously applied to the field of electric energy recovery. In principle, it can overcome the phenomenon that the traditional thyristor phase control device is prone to reverse and cause DC circuit.

Specification:

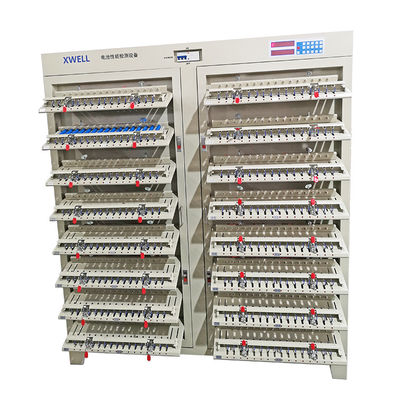

Machine picture:
