5V 100A Energy-Feedback Prismatic Cell Charge Discharge Tester
  • name

5V 100A Energy-Feedback Prismatic Cell Charge Discharge Tester

MOQ: 1 pcs
Price: $4000-$6000
Standard Packaging: wooden case
Delivery Period: 7-15days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 100PCS a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-5V100A64CH
Warranty:
1
Brand:
XWELL
Current Range:
120A
Voltage:
5V
Highlight:

5V 100A battery charge discharge tester

,

prismatic cell grading machine

,

energy-feedback battery tester with warranty

Product Description

  5V 100A Energy-Feedback Prismatic Cell Charge Discharge Tester





The equipment structure is mainly composed of the following parts:
1.Independent CPU board, double keyboard board, front and back double side operation, the whole cabinet unified transmission control;
2.2-channel constant current and constant voltage control module
3.Two way AC / DC invertor module;
4.Flat head clamp, movable clamping tray mode, electric open clamp.

Structure and working principle of the system
System composition
1. Lithium battery formatting and capacity grading equipment.
2. Computer with USB interface (self provided).
3. USB to 485 interface converter and communication line or five kinds of conmunication line and crystal head.
4. Battery scanning system.
5. ACEY product software.





Technical Parameters



Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery





Product Details

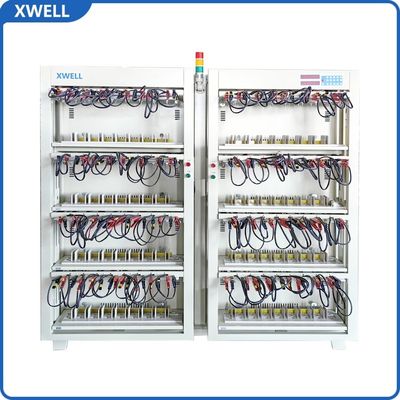

5V 100A Energy-Feedback Prismatic Cell Charge Discharge Tester 0
