Name: 32 Channel Prismatic Battery Testing Machine Cell Grading Machine
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-5V120A32CH
Price: 5,000.00 USD
Availability: InStock

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V120A32CH

Model:

XW-5V120A32CH

Brand:

XWELL

Current Range:

120A

Voltage:

Place Of Origin:

China

Compliance:

CE Certified

Product Description

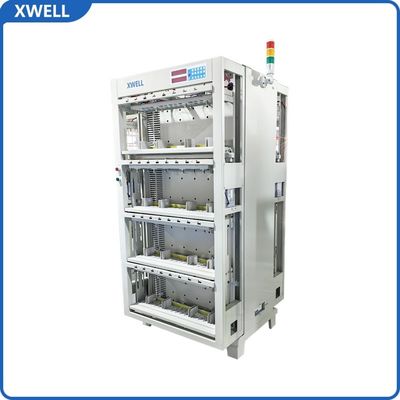

32 Channel Prismatic Battery Testing Machine Cell Grading Machine

1. System features:

Single point independence, each battery has an independent constant current and constant voltage source, which is stable without impact.

The accuracy of the equipment is 0.05% and the stability is high.

The software has powerful functions and friendly man-machine interface.

Four wire test interface to ensure high measurement accuracy.

Modular design concept, easy to maintain.

The equipment structure is mainly composed of the following parts:

1,Independent CPU board and supporting keyboard board, front and rear double-sided independent operation, and the whole cabinet sends control uniformly ;

2,4-channel constant current and constant voltage control module ;

3,Bidirectional AC/DC inverter module.

4,Flat head clamp, electric automatic unclamping. Compatible crocodile clip.

2. System composition:

1. Lithium battery into capacity sharing equipment.

2. Computer with USB interface (self provided).

3,USB to 485 interface converter and conmmunication line.

4,Battery scanning system

5,Software.

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery

Product Details
