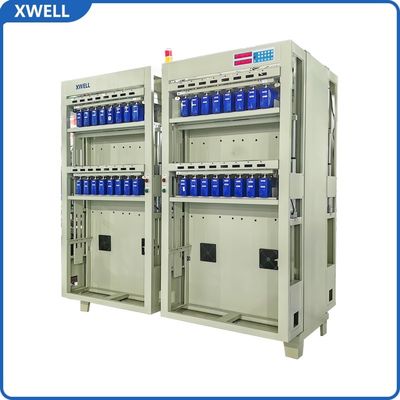

64 channel 5V 100A Prismatic Battery Charge Discharge Tester

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V100A64CH

Battery Types:

Prismatic Battery

Brand:

XWELL

Current Range:

Voltage:

Highlight:

64 channel battery charge discharge tester

5V 100A prismatic battery tester

battery grading machine with warranty

Product Description

64 channel 5V 100A Prismatic Battery Charge Discharge Tester

Description

Prismatic Battery Charge Discharge Tester is mainly composed of computer, communication interface and battery testing cabinet. Battery testing cabinet consists of a jig and a board body for placing the jig, constant current and constant voltage source, sampling circuit, dividing capacity control circuit, microcontroller and control panel. It is mainly used for power battery capacity separation, capacity testing and Cycle life testing, and is the mainstream in the field of power battery testing equipment to meet the needs of power battery.

Key Features

The single point is independent, and the charging and discharging steps can be set independently for each battery test channel.
The accuracy of the equipment is 0. 05%,the data recording time is 1s / time, and the stability is high.
The software has powerful function and friendly man- machine interface.
Four wire test interface ensures high measurement accuracy. Modular design concept, easy to mintain.

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery

Product Details
