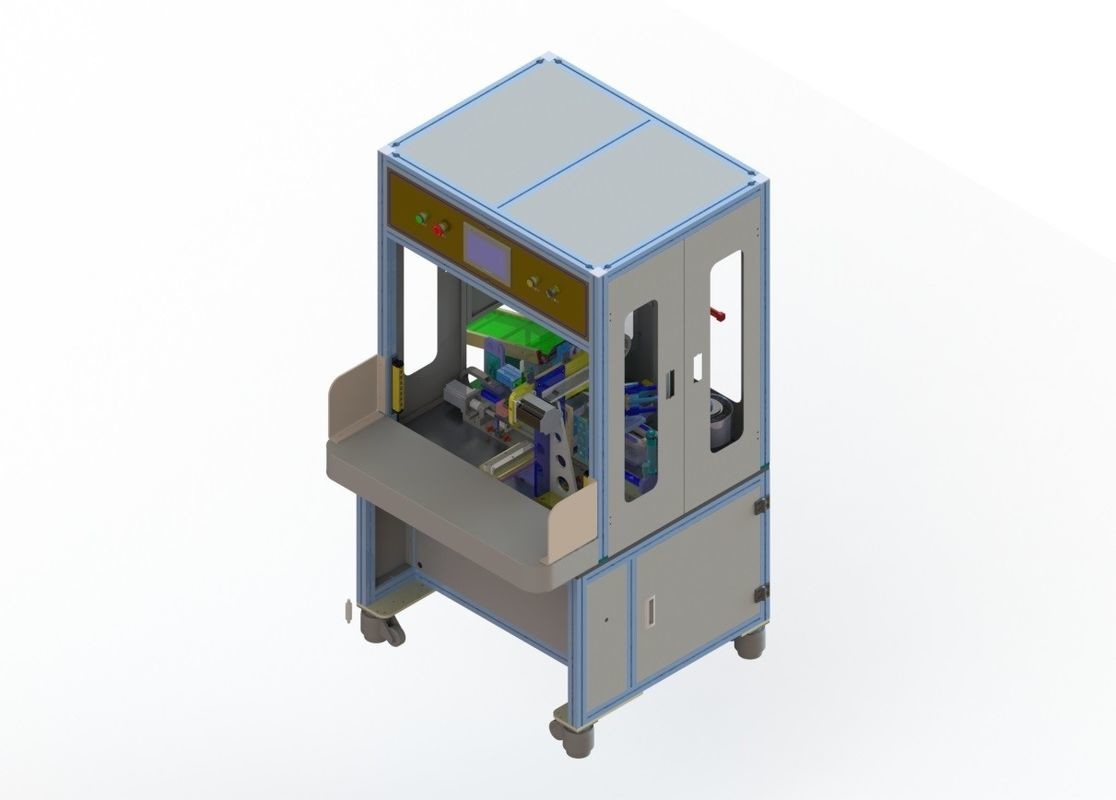

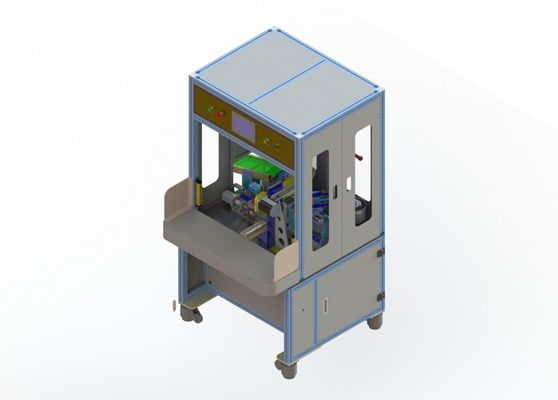

Name: 100Ah-280Ah Prismatic Lithium Battery Cell Stacking Machine
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-12
Price: 505,000.00 USD
Availability: InStock

MOQ:	1 pcs
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7- 15days
Payment Method:	L/C,D/A,D/P,T/T
Supply Capacity:	50 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-12

Input Power:

1.5kw

Warranty:

One Year Warranty With Lifetime Support

Payment:

T/T

Highlight:

280Ah cell stacking machine

Battery cell stacking machine

100Ah Prismatic Battery Compress Machine

Product Description

Prismatic Lithium Battery Cell Stacking Machine

Ⅱ,Equipment performance parameters :

2.1 Applicable battery model:Prismaitc cell:100Ah-280Ah；

2.2 Module compatible size specifications:Length:200-900mm,width:100-320mm,height:80-250mm；

2.3 Probability of equipment damage to products:≤0.1%；

2.4 Equipment program control method: PLC control；

2.5 Capacity speed:≥8ppm(Specific depends on manual operation)；

2.6 NG equipment failure rate:≤1%(Malfunctions caused solely by equipment)；

2.7 Squeeze pressure range:0-500kg,Squeezing reaches the set upper limit value, with a red buzzing light alarm function；

2.8 Squeeze stroke range 0-110mm adjustable；

2.9 Using high-precision pressure load gauges,Accuracy:0.1%；

2.10 Squeezing and moving with repeated positioning accuracy:±0.05mm；

2.11 Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC；

Ⅲ,Equipment environmental conditions requirements :

3.1 Ambient temperature:5ºC-35 ºC

3.2 Humidity:20%-90%

3.3 Air Pressure :0.5～0.6 Mpa

3.4 Supply voltage:220V-50Hz/60Hz

3.5 Area to weight ratio:≤200kg/M²

3.6 Grounding type: direct grounding type

Specication

Equipment Efficiency	50 groups/hour (10PCS battery cells)
Equipment grafting rate	≥98%
Extrusion stroke	1000mm
Stacking maximum pressure	100KG
Adaptable size range	L:50~250mm；W:20~100mm；H:100~300 mm
Pressure control error	0.1KG
Control system	PLC+touch screen
Input power supply	AC220V/50HZ
Weight	300kg
Equipment appearance reference size	LWH=15705001400mm
