Prismatic Lithium Battery Cell Stacking Machine
  • name

Prismatic Lithium Battery Cell Stacking Machine

MOQ: 1 pcs
Price: 10000-1000000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 7- 15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 50 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-12
Input Power:
1.5kw
Warranty:
One Year Warranty With Lifetime Support
Payment:
T/T
Brand:
XWELL
Highlight:

prismatic lithium battery stacking machine

,

prismatic battery compress machine with warranty

,

lithium battery cell stacking equipment

Product Description
Prismatic Lithium Battery Cell Stacking Machine

Advanced automated solution for precise stacking of prismatic lithium battery cells with real-time monitoring and adjustable parameters.

Equipment Environmental Conditions
  • Ambient temperature: 5ºC-35ºC
  • Humidity: 20%-90%
  • Air Pressure: 0.5～0.6 Mpa
  • Supply voltage: 220V-50Hz/60Hz
  • Area to weight ratio: ≤200kg/M²
  • Grounding type: direct grounding type
  • Venue requirements: No pollution and strong electromagnetic interference
  • Installation environment: Flat, without vibration and impact
  • Equipment noise: ≤80db
Equipment Parameters
  • Dimensions (L×W×H): 1931mm × 750mm × 1500mm (subject to actual conditions)
  • Weight: Approximately 180Kg
  • Appearance color: Computer white (adjustable according to requirements)
  • Total power: ≤1.5KW
  • Real-time monitoring of extrusion distance and pressure with adjustable parameters through PLC
Specifications
Parameter Value
Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1000mm
Stacking maximum pressure 100KG
Adaptable size range L:50~250mm; W:20~100mm; H:100~300mm
Pressure control error 0.1KG
Control system PLC+touch screen
Input power supply AC220V/50HZ
Weight 300kg
Equipment appearance reference size L×W×H=1570×500×1400mm
Product Image

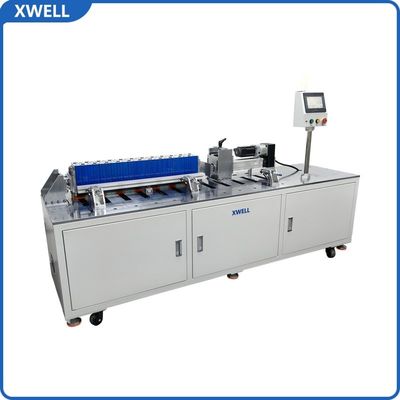

Prismatic Lithium Battery Cell Stacking Machine 0
