Prismatic Battery Cell Stacking And Compression Machine
  • name

Prismatic Battery Cell Stacking And Compression Machine

MOQ: 1 pcs
Price: 10000-1000000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 7- 15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 50 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-12
Model:
XW-PC
Supply Voltage:
220V-50Hz/60Hz
Input Power:
1.5kw
Warranty:
One Year Warranty With Lifetime Support
Payment:
T/T
Highlight:

prismatic battery stacking machine

,

battery cell compression equipment

,

prismatic battery compression tool

Product Description
Prismatic Battery Cell Stacking And Compression Machine
Product Description

The battery stacking and pressing machine is specially designed for prismatic lithium batteries, and can realize the integrated operation of stacking, extrusion forming and bundling. Its core drive architecture adopts a servo motor linked screw module and a planetary reducer, which can output a stable extrusion thrust of more than 500KG through precise control of the pressure controller.

Key Features
  • Computer controlled, easy to operate
  • Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type
  • Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG
  • Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy
Technical Specifications
Parameter Value
Equipment Efficiency 50 groups/hour (10PCS battery cells)
Equipment grafting rate ≥98%
Extrusion stroke 1000mm
Stacking maximum pressure 100KG
Adaptable size range L:50~250mm；W:20~100mm；H:100~300 mm
Pressure control error 0.1KG
Control system PLC+touch screen
Input power supply AC220V/50HZ
Weight 300kg
Equipment appearance reference size L*W*H=1570*500*1400mm

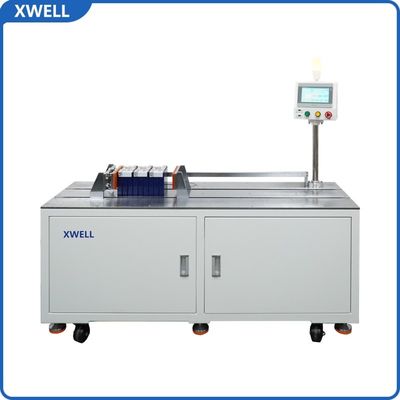

Product Image
Prismatic Battery Cell Stacking And Compression Machine 0
