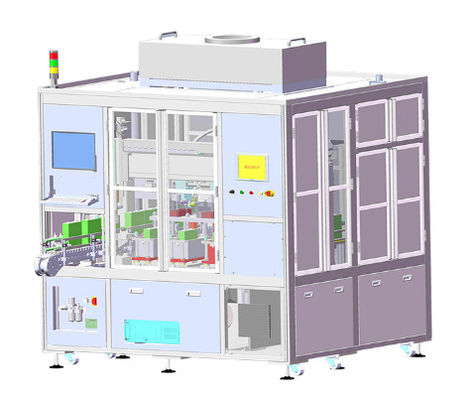

High Reliability Lithium Ion Battery Assembly Line OCV Test Sorting Machine

High Reliability Lithium Ion Battery Assembly Line OCV Test Sorting Machine

1. Design requirements of OCV test separator for soft-pack battery:

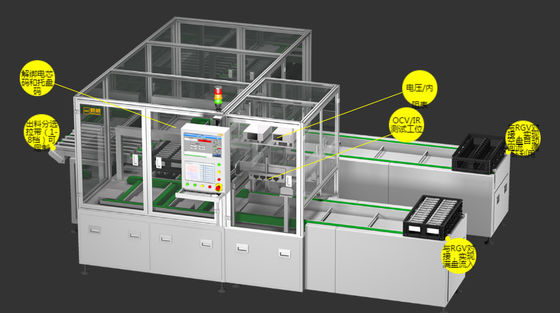

• This equipment is a soft package battery OCV test separator technology based on the design requirements, based on the industrial design and manufacture of soft package 4.0 battery intelligent automatic OCV test separator, this production line includes: feeding conveyor line, feeding manipulator, tray collection station, voltage resistance measurement location on a single manipulator, voltage resistance measurement location, separation feeding manipulator, sorting feeding box

• Process flow:

1.3. Conditions of use:

1.3.1 power supply conditions: main power supply: 220V±15%

1.3.2 compressed air: ≥ 0.5mpa, 10L/30Min

1.3.3 ambient temperature: 0℃ ~ 40℃.

1.3.4 relative humidity: 10 ~ 60%RH

1.4.Production requirements:

1.4.1 appearance requirements:

1.4.1.1 uniform appearance, no deformation;

1.4.1.2 no pinhole, flow mark, or other defects;

1.4.2 size requirements:

1.4.2.1. Product width 35-100mm.

1.4.2.2 product length: 50-150mm

1.4.2.3 product wall thickness: 3.8-12mm

2, Main equipment configuration
