Automatic Three Dimensional Steel Tape Punch Lithium Battery Production Line


1. Technical requirements for steel tape puncher

1.1. The equipment is perforated by the steel band of bag-type battery. The machine can automatically uncoil, automatically feed, automatically punch and automatically receive the whole coil after the manual loading. The equipment has a high degree of automation, stable and reliable operation, and can meet the requirements of 24-hour continuous production.

1.2. Working process: manual winding → automatic puncture → automatic feeding → manual blanking

1.3. Product model and specification: (unit: mm)


NO. The length (mm) The width (mm) Thickness (mm)
1 coil 22.9 0.1
2 coil 23 0.1
3 coil 23 0.1


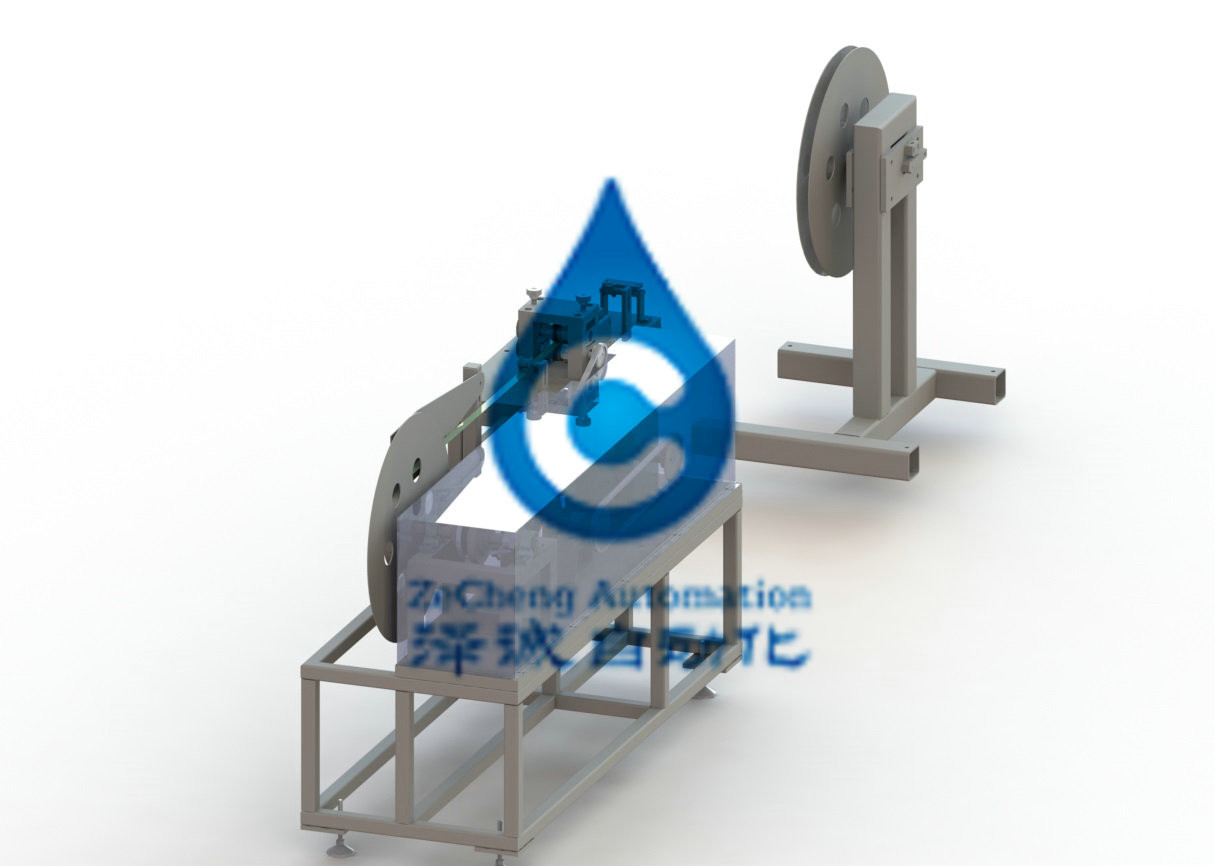

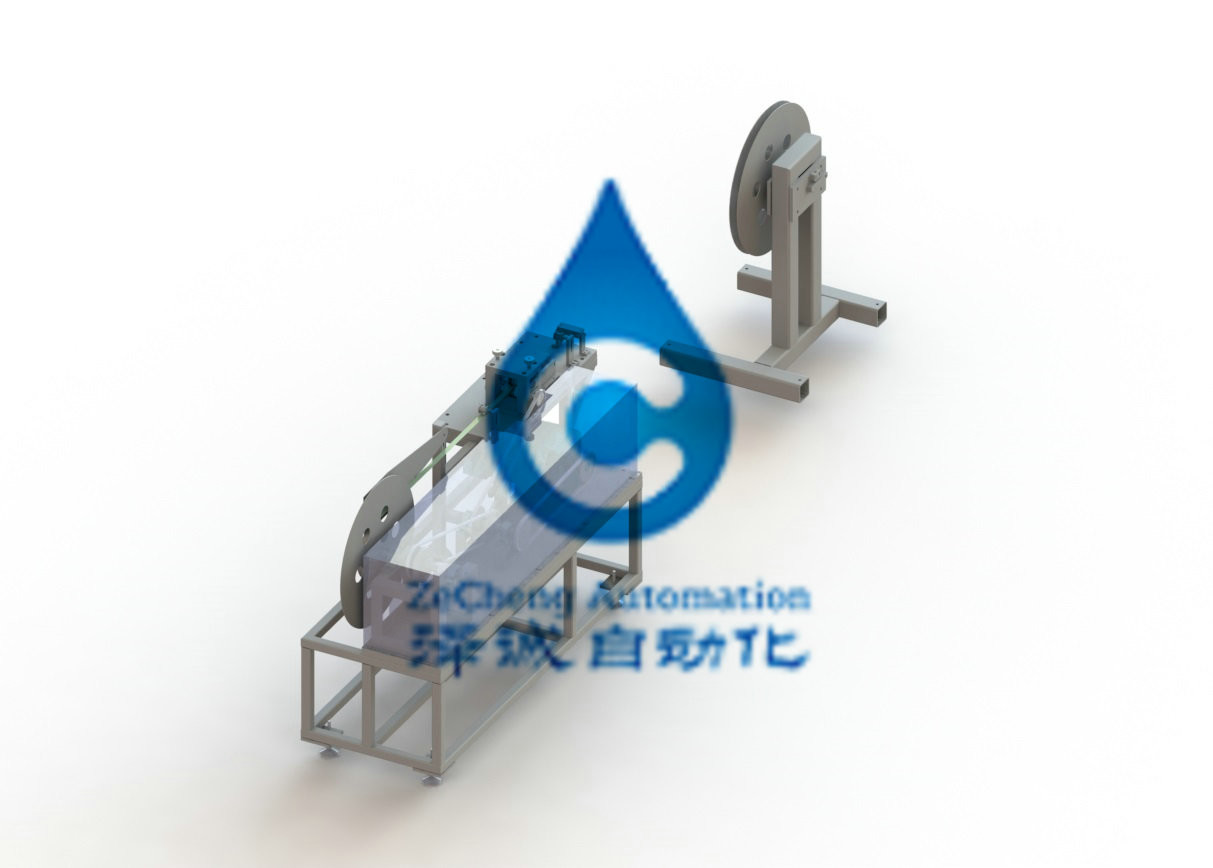

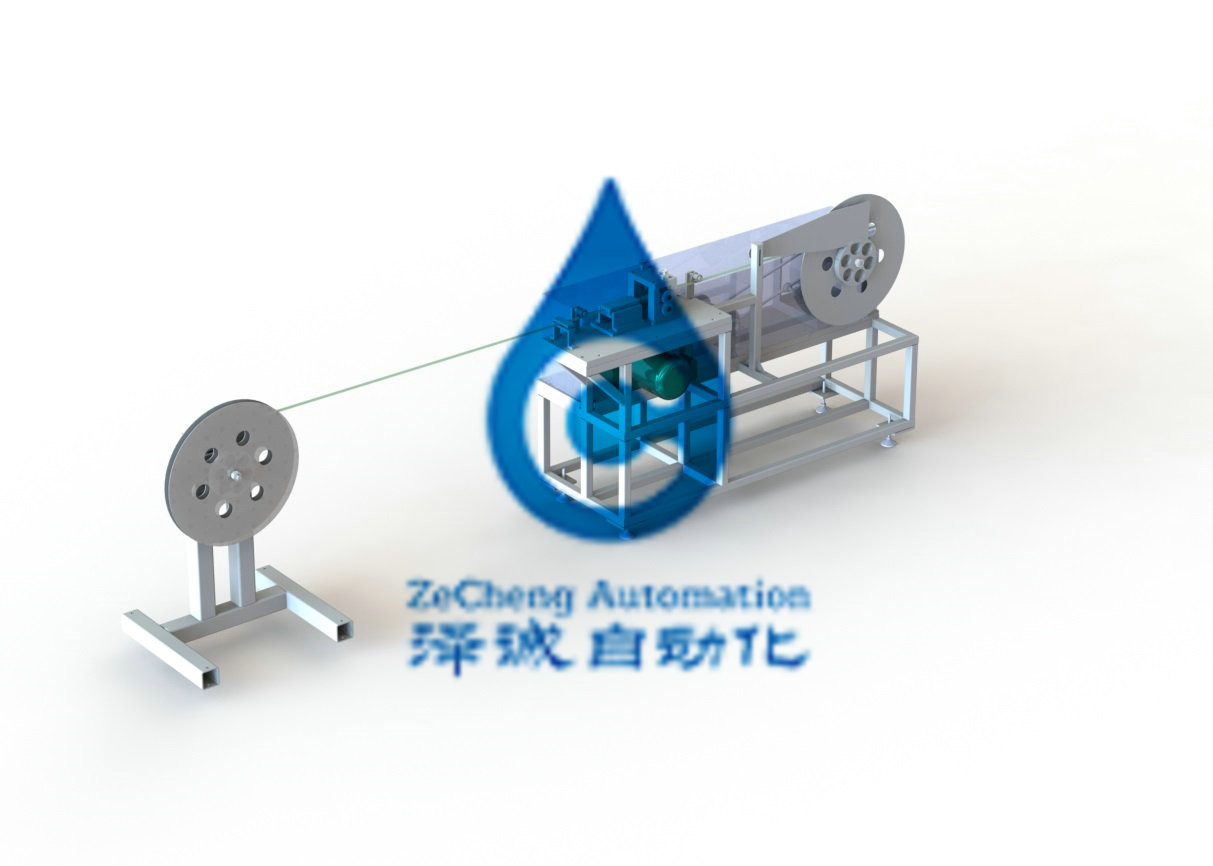

Product drawings

1.3.1 type1



The equipment is supplied with 1 set of each of the above specifications, 3 sets in total.

1.4. Efficiency: 2m/min.

1.5. Reliable equipment, low maintenance rate, convenient maintenance and durability. Electrical appliances, switches, sockets equipped with dust cover.

1.6. Put the steel belt into the winding rack manually, wear the material manually and receive the material automatically

2. Complete machine description of plate bending feed

2.1. Table of main components of plate bending feeder equipment

NO. System composition The system configuration The number of
1 Rack system   1 set of
Welded skeleton construction 1
Countertops A3 chrome plated 1
2 Feeding system   1 set of
stents 1
bearing 2
Baffle plate 2
Tensioning shaft 1

Guide wheel system



  1 set of
Guide wheel 5
bearing 10
Guide plate 2
4 Perforation system   1 set of
Punch round 2
Guide plate 1 set of
bearing 8
5 Winding system   1 set of
The motor 1
pulley 2
Adjustment plate 1
6 Electrical system   1 set of
Electrical system 1

2.2. Technical parameters of the equipment

Machine specifications


Technical parameters The production efficiency 2m/min
Compressed air system Air source provided by party a
Total power (kw) 1.7
Normal operating power (kw) 1.5


2.3. Main equipment components

2.3.1. Frame system: made by 40x40x3 square welding, the surface of the paint, the main color of the equipment appearance is gsb05-1426-2001

8 PB07 light (iron) blue color. The substrate is electroplated with 25mm steel plate, the overall appearance is beautiful and the structure is stable.

2.3.2. Unwinding system: composed of 40*40 square welding, friction unwinding. After the steel belt is installed, the baffle plate is positioned.

2.3.3. Guide system: precise guide plate and guide wheel guide to prevent steel belt from deviating.

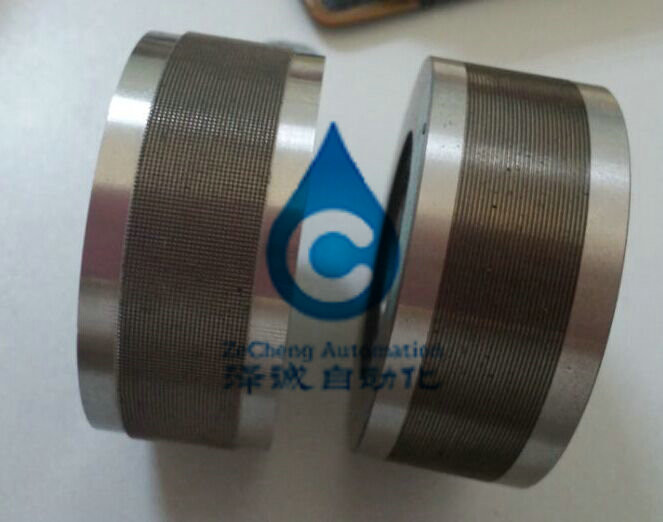

2.3.4. Perforation system: the precision perforation wheel is positioned in the axial direction. The steel belt passes through the middle of the two wheels.

2.3.5 rewinding system: the motor drives the magnetic powder clutch to drive the rewinding of the receipt tray, and the rewinding force can be adjusted.

2.3.6. Control system: the machine shall be equipped with an electrical panel, leakage switch, dc stability power supply and other power circuit components, control relays, solenoid valve control devices, etc. And external connection, using connectors and terminal table. Cables and air ducts between other equipment are wired and piped below. The entire control system, switch, plug, socket use dust treatment, to prevent electrical short circuit.

2.4. Energy media

Against 2.4.1. The power supply Voltage AC380V, single phase, frequency 50HZ; Voltage fluctuation is less than ±10%.

2.4.2 air Pressure 0.4 ~ 0.6mpa, clean dry compressed air.


1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
