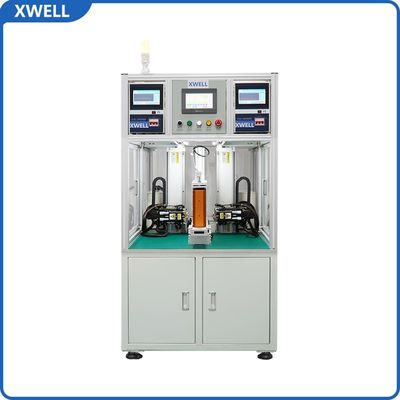

Name: 5000A Battery Spot Welding Machine Automatic Double Side Resistance
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-ADW
Price: 505,000.00 USD
Availability: InStock

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Warranty:

1 Year

Order(Moq):

1set

Payment:

L/C D/A D/P T/T Western Union

Delivery Time:

7 Days

Highlight:

Battery Spot Welding Machine Automatic

5000A Battery Spot Welding Machine

26650 battery cell welder

Product Description

Automatic Double-side Cylindrical Batteries Pack Spot Welding Machine

Product Description

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features

High-precision full-servo welding head, fast speed, high precision and good stability.
Less spark spatter, beautiful and firm solder joints, no blackening, uniform size of solder joints without burrs.
High welding efficiency, taking 18650 as an example: about 2000-3000PCS cells/hour
High-definition touch screen, simple programming, fool-proof configuration, easy for ordinary employees to operate
Manual input, array, CAD graphics three kinds of file programming
It can store up to 99 sets of welding ranges, and it is convenient to change the wire and adjust the machine
One-key calibration function for overall offset of solder joints
Easy to adjust and use, the welding pin spacing and pressure are independently adjustable
Welding power source (inverter DC, transistor) can be selected according to customer requirements
Automatic alarm and cut-off system, display the fault location, and continue to work after clearing the fault

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm


5000A Battery Spot Welding Machine Automatic Double Side Resistance 0
