Cylindrical Spot Welding Machine For Battery Pack Automatic Double Side

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Delivery Time:

7 Days

Highlight:

Cylindrical spot welding machine for battery pack

Automatic spot welding machine for battery pack

Double Side battery pack welder

Product Description

Automatic Double-side Cylindrical Batteries Pack Spot Welding Machine

Product Description

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.

Features

1.1 Power:6.2KW,AC 380V,50HZ

1.2 Air pressure; 0.4-0.8Mpa

1.3 Applied range: Series and parallel combination of power battery core 18650/26650, multi-parallel and multi-series combination, electric tool battery, swing car battery, storage battery pack, 26650 battery pack, 32650 battery pack, electric bicycle battery, etc.

1.4 Max stoke: example the 18650 battery core, max stroke: X-axis 35pcs core* Y-axis 20pcs core, if need a larger stroke, it needs to be customized.

1.5 Suitable welding needle: Diameter 4-4*6 imported flat head welding needle (bulge point welding), diameter 1.7*100mm(spot welding)

1.6 Suitable nickel width: Forming nickel

1.7 Can be customized spot welding mold front in and back out type(Suitable for automatic production line using)

1.8 Suitable nickel thickness: 0.1mm---0.3mm (0.21—0.3mm thickness, nickel needs to be slotted)

1.9 Production efficiency: about 4000PCS-5000PCS per hour

1.10 Welding machine:BT-8000A model, two sets

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm

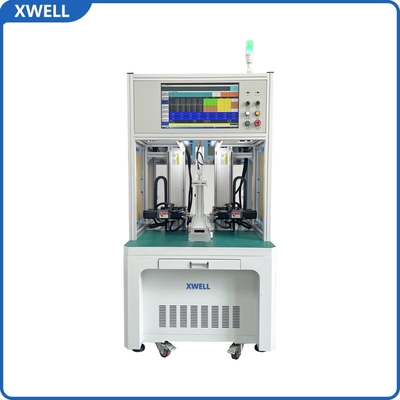

Cylindrical Spot Welding Machine For Battery Pack Automatic Double Side 0
