3.3mm 5.5mm Battery Plate Making Machine Lithium Ion Battery Assembly
Nickel Iron Battery Plate Assembly Line Nickel Cadmium Battery Plate Production Line
Product specifications:
1． Design requirements for production line of battery plate of bag type

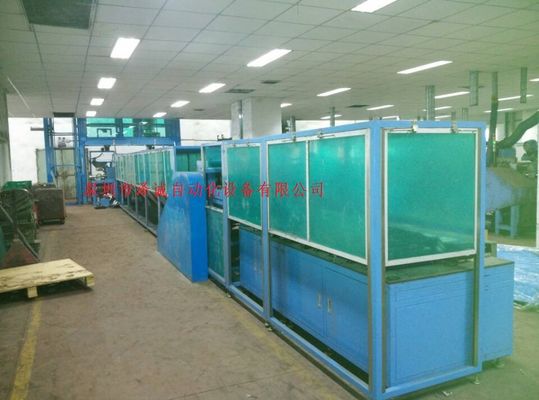

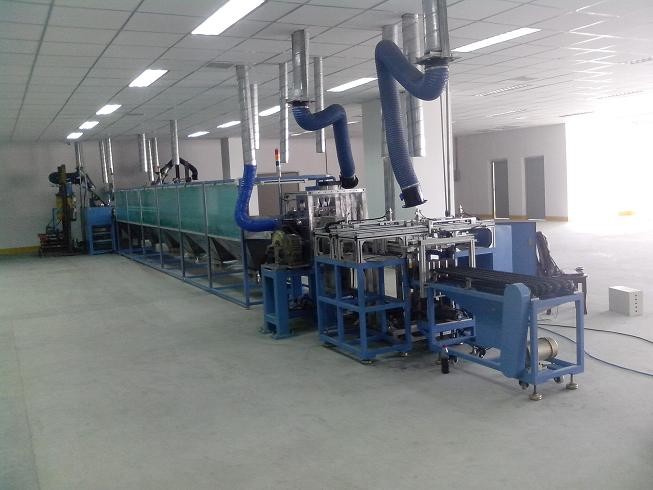

1.1．Based on the manufacturing requirements of plates provided by ****, this project designs and produces the blank production line for the plate of bag battery. The automatic production line of pad roughing of bag battery includes two automatic material feeder, two independent and mirror symmetrical installation of powder feeder, one loading table (small strip storage), and one embossing shearing machine.

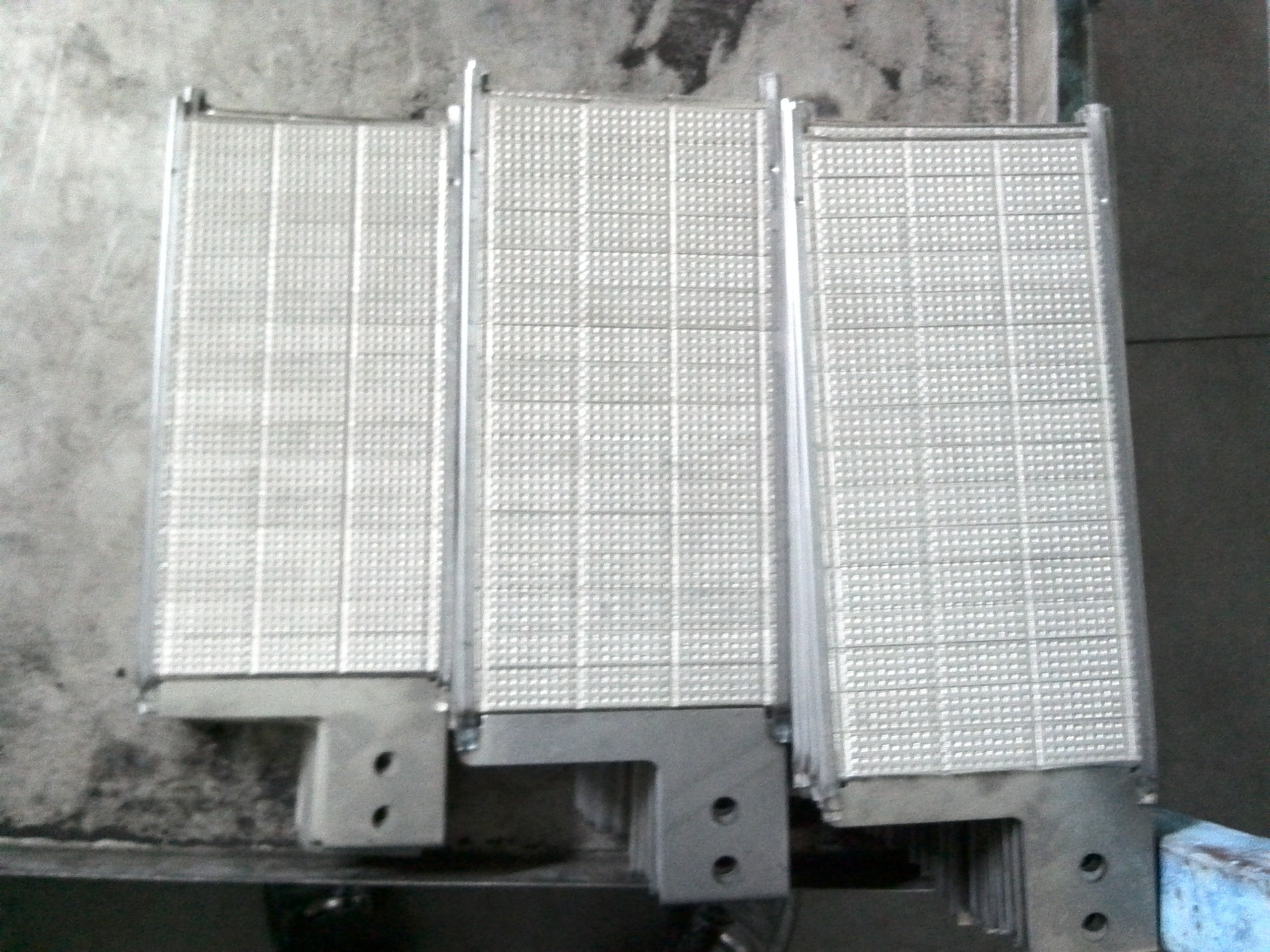

1.2．Plate blank production process: the steel strip under the frame and the strip shape to fill a powder, powdered and secondary filling powder scraper (-) – The up with frame - up and down the strip the merger - oriented - arm in the mouth - blank holder to bend (- > clear powder), crowded mouth - cut off - loading (small storage) workbench (9 m) - article spell - the embossing - cut - plate continues the delivery. The negative plate blank production line only needs seasoning once, no secondary packing and powder.
1.3．Production capacity and process parameters of the plate blank production line: the production speed of small strips is adjustable by 20m/min, and the length of small strips is 8m + / 0.5/ strip adjustable. The thickness of the strip is adjustable from 3.3 to 5.5mm. Small bar weight 2.6g ~ 6.5g/50mm adjustable; Applicable steel belt: 0.1 x 21 x L; 0.1 * 23 * L; 0.1 x 25 x L. The width of plate strip is adjustable from 60 to 400 mm, and the shear length of strip is adjustable from 80 to 200 mm. After embossing, the thickness is adjustable from 1.4 to 5.0m, and the shear rate is greater than 25 times /min.
1.4．Performance requirements of plate blank production line: 1.3 under normal production conditions. Requirements of the clause; Each regulation part, feeding mechanism, powder feeding and packing mechanism, forming combination mechanism, pressure shear mechanism, requirements of stability and reliability, easy to operate; All moving parts shall have reasonable, reliable and convenient lubrication mechanism.
1.5. Dust prevention:
1.5.1. The production line must have reliable dustproof facilities, and the dustproof facilities reserve the air intake; There should be material collection tank under each working face, which requires complete collection and convenient operation. Safety door of all dustproof cover should be firm and reliable, convenient to operate and maintain.
1.5.2. All electrical facilities, switches, sockets and plugs shall be dustproof and explosion-proof. The power cord shall have a protective cover.
1.6. After the design is completed, the construction drawings shall be confirmed and signed by party a and shall be attached to this technical agreement.

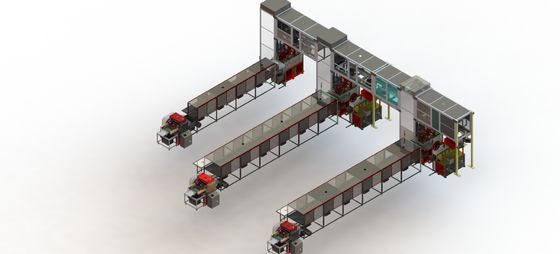

1.7．Plate automatic production line equipment:
| NO. | Process name | Devicename | Capacity of equipment | Quantity (Sets) | Remarks |
| 1 | Load material | Automatic powder feeder | 250kg /netx | 2 | Automatic loading |
| 2 | Package powder | Plate automatic powder wrapping machine | ≤20m/min adjustable | 2 | |
| 3 | loading | Loading station | 9m | 1 | No power roller conveyor belt |
| 4 | No power roller conveyor belt | Spline shear machine | ≥25次/min | 1 |
