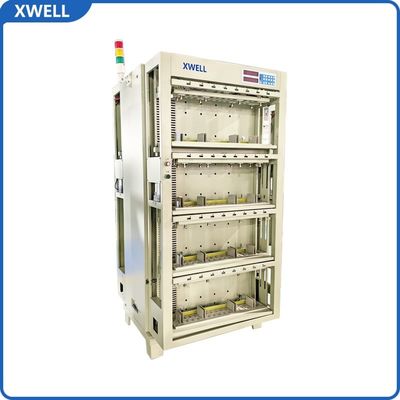

32 Channel 5V 120A Prismatic Cell Battery Grading Machine

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V120A64CH

Warranty:

Brand:

XWELL

Current Range:

Voltage:

Highlight:

32 channel battery grading machine

5V prismatic cell grading machine

120A battery grading machine with warranty

Product Description

32 Channel 5V 120A Prismatic Cell Battery Grading Machine

Features:

1) Energy feedback and energy saving

The prismatic cell battery grading machine adopts bidirectional AC/DC inverter modules, and the energy feedback technology can feed the electric energy discharged by the battery back to the power grid, which can save electricity costs and is environmentally friendly.

Compared with the traditional battery grading equipment, the power consumption is reduced by more than 40%.

2) Independent control for each channel

The prismatic cell grading machine has 128 channels, and each channel is equipped with independent constant current source and constant voltage source, so each channel can be independently controlled without interfering with each other.

3) High test accuracy

The prismatic cell grading equipment adopts four-wire test connection to ensure high measurement accuracy, voltage accuracy: ±(0.1%RD + 0.1%FS), current accuracy: ±(0.1%RD + 0.1%FS).

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery

Product Details
