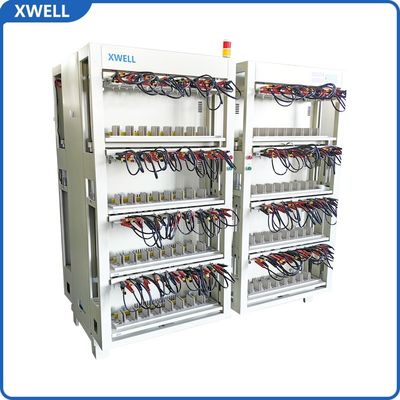

Prismatic Cell Battery Grading Machine

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V100A64CH

Warranty:

Brand:

XWELL

Current Range:

Voltage:

Highlight:

prismatic cell battery grading machine

battery grading machine with warranty

automated battery cell grading equipment

Product Description

Prismatic Cell Battery Grading Machine

Product Description

This prismatic battery cell tester is used to test the capacity of prismatic batteries through cyclic charging and discharging tests. the whole machine has 64 channels and can test 64 cells simultaneously. The voltage and current accuracy up to 0.5‰ and has energy-saving feedback function, and optional alligator clamps.

Equipment Features

This utility model opens up a capacity cabinet for square lithium battery tests, including: the main body of
the capacity cabinet, which has a cavity for placing multiple batteries and opening multiple batteries;

Multiple positioning components in the cavity body are used to locate the battery; multiple fast clamps,

the end of the ends of the telescopic rod is set for fixing boards for fixing positive heat dissipation

probes and negative heat dissipation probes; It is used to drive positive heat dissipation probes

and negative heat dissipation probes at the same time or downward; and the positive heat dissipation

probe and negative heat dissipation probe fixed on the fixed board. The positive heat dissipation probe

and the negative heat dissipation probe are in contact with the positive and negative columns of the battery,

respectively, and the attery test testing the battery, which significantly improves the efficiency of the capacity test test.

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery

Product Details

Tags:

Products

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V100A64CH

Warranty:

Brand:

XWELL

Current Range:

120A

Voltage:

Minimum Order Quantity:

1 pcs

Price:

$4000-$6000

Packaging Details:

wooden case

Delivery Time:

7-15days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union

Supply Ability:

100PCS a month

Highlight

prismatic cell battery grading machine

battery grading machine with warranty

automated battery cell grading equipment

Product Description

Prismatic Cell Battery Grading Machine

Product Description

Equipment Features

This utility model opens up a capacity cabinet for square lithium battery tests, including: the main body of
the capacity cabinet, which has a cavity for placing multiple batteries and opening multiple batteries;

Multiple positioning components in the cavity body are used to locate the battery; multiple fast clamps,

the end of the ends of the telescopic rod is set for fixing boards for fixing positive heat dissipation

probes and negative heat dissipation probes; It is used to drive positive heat dissipation probes

and negative heat dissipation probes at the same time or downward; and the positive heat dissipation

probe and negative heat dissipation probe fixed on the fixed board. The positive heat dissipation probe

and the negative heat dissipation probe are in contact with the positive and negative columns of the battery,

respectively, and the attery test testing the battery, which significantly improves the efficiency of the capacity test test.

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery
