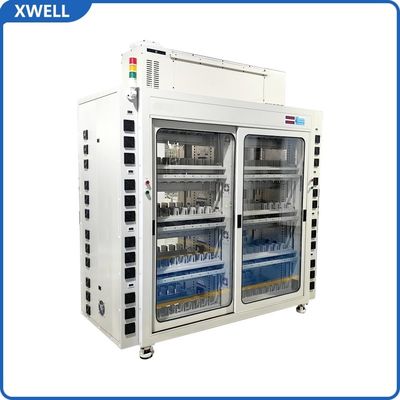

64 Channel Prismatic Cell Battery Grading Machine
  • name

64 Channel Prismatic Cell Battery Grading Machine

MOQ: 1 pcs
Price: $4000-$6000
Standard Packaging: wooden case
Delivery Period: 7-15days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 100PCS a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-5V120A64CH
Warranty:
1
Brand:
XWELL
Current Range:
120A
Voltage:
5V
Highlight:

64 channel prismatic cell tester

,

battery grading machine with warranty

,

prismatic cell capacity analyzer

Product Description

64 Channel Prismatic Cell Battery Grading Machine


Products Description



This utility model opens up a capacity cabinet for square lithium battery tests, including: the main body of

the capacity cabinet, which has a cavity for placing multiple batteries and opening multiple batteries;

Multiple positioning components in the cavity body are used to locate the battery; multiple fast clamps,

the end of the ends of the telescopic rod is set for fixing boards for fixing positive heat dissipation

probes and negative heat dissipation probes; It is used to drive positive heat dissipation probes

and negative heat dissipation probes at the same time or downward; and the positive heat dissipation

probe and negative heat dissipation probe fixed on the fixed board. The positive heat dissipation probe

and the negative heat dissipation probe are in contact with the positive and negative columns of the battery,

respectively, and the attery test testing the battery, which significantly improves the efficiency of the capacity test test.



Key Features

- Innovative Pressure-based Grading Mechanism: Setting a new standard in battery grading technology, our machine utilizes a pressure-based grading mechanism specifically tailored for prismatic batteries housed in aluminum shells. This innovative approach ensures precise and consistent grading results, enhancing overall battery quality and performance.

- Customizable Grading Parameters: Designed to accommodate the unique characteristics of prismatic aluminum shell batteries, our grading machine offers customizable grading parameters. Operators have the flexibility to adjust parameters such as pressure levels, cutoff voltage, and discharge characteristics to tailor the grading process to specific battery chemistries and performance specifications.

- Automated Grading Process: Engineered for seamless integration into production lines, our grading machine features an automated grading process. With advanced robotics and conveyor systems, batteries are efficiently handled and graded according to predefined criteria, minimizing manual intervention and maximizing throughput.







Technical Parameters



Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery



Product Details
64 Channel Prismatic Cell Battery Grading Machine 0
