64-Channel 5V 60A Prismatic Battery Cell Tester Capacity Grading Machine

MOQ:	1 pcs
Price:	$4000-$6000
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	100PCS a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-5V100A64CH

Warranty:

Brand:

XWELL

Current Range:

Voltage:

Highlight:

64-channel battery cell tester

5V 60A prismatic battery grader

battery capacity grading machine

Product Description

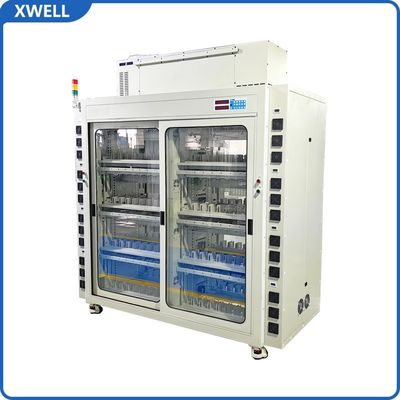

64-Channel 5V 60A Prismatic Battery Cell Tester Capacity Grading Machine

Product Description

This prismatic battery cell tester is used to test the capacity of prismatic batteries through cyclic charging and discharging tests. the whole machine has 64 channels and can test 64 cells simultaneously. The voltage and current accuracy up to 0.5‰ and has energy-saving feedback function, and optional alligator clamps.

Equipment Features

Single point independent, independent constant current and constant voltage source, stable without impact. Functions such as start, stop, pause, resume and protection can be realized.
The accuracy of the prismatic cell capacity grading machine is 0.05%, the data recording time is 1 second/time, and high stability.
The software has powerful functions and friendly man-machine interface.
Four-wire test interface to ensure high measurement accuracy. Modular design concept, easy to maintain.

Technical Parameters

Number of equipment channels	The whole machine has 32chs
Case color	Standard gray / black (customizable)
Clamp type	Custom
Working power supply	Three phase five wire AC380V土10%, 50Hz
Voltage measurement range	DC 0~5V
Current range	Charge DC 6120mA～120A; Discharge DC 120mA～120A
Negative pressure range	(-100KPa-0)adjustable
Data processing	Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file
Charging mode	Constant current; constant pressure; constant current & pressure
Charging cut-off conditions	Voltage, current, time, capacity
Protection function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery
