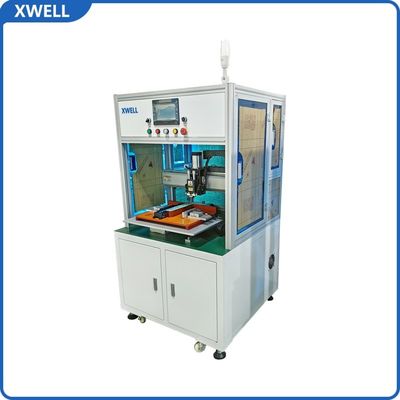

Single Head Electric Numerical Control Automatic Spot Welding Machine

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Type:

Automatic

Delivery Time:

7 Dyas

Warranty:

1 Year

Order(Moq):

Machine Size:

900L*1200W*1600Hmm

Highlight:

single head spot welding machine

numerical control spot welder

automatic battery spot welder

Product Description

Single Head Electric Numerical Control Automatic Spot Welding Machine

Automatic Battery Pack Spot Welder is a general platform of automatic processing technology based on CNC, suitable battery pack spot welding and assembly in the factory. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Features

1. Suitable for 18650, 26650…battery pack welding, like E-bike, scooter, and electromobile battery pack welding.

2. Induction load voltage, feedback mode to control the constant voltage, to achieve high-quality welding.

3. PRE HEAT, MAIN HEAT power mode, preheats before welding, to ensure a stable welding quality.

4. To maintain the continuity of energy density, welding time is short, reduce the base metal deformation and discoloration.

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
