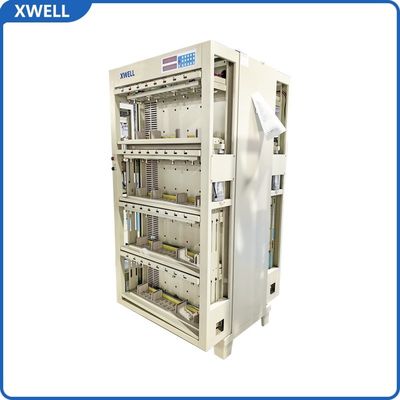

32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine

32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine

MOQ: 1 pcs
Price: $4000-$6000
Standard Packaging: wooden case
Delivery Period: 7-15days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 100PCS a month
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-5V120A32CH
Model:
XW-5V120A32CH
Brand:
XWELL
Current Range:
120A
Voltage:
5V
Product Description

     32 Channel 5V 120A Prismatic Cell Tester Capacity Grading Machine





Description

This equipment (TCSHT37-128/30A/25℃) is a thermostatic prismatic aluminum shell battery testing device designed specifically for regions with extreme weather conditions (heavy snow/extreme cold). It provides an optimal testing environment with a constant temperature of 25°C, enabling accurate testing of battery capacity, lifespan, and charge/discharge performance. This significantly enhances battery testing efficiency and accuracy.



Key Features

- Tailored for prismatic power batteries, ensuring compatibility with various sizes and chemistries.

- Designed for extreme weather regions, it can maintain a constant 25°C test temperature.

- Each battery test channel has an independent voltage and current loop design, which is stable and impact-free.

It can realize functions such as start, stop, pause, continue and protection for a single battery channel.

- Advanced energy-saving capacity grading technology for accurate assessment of battery performance.

- Customizable grading parameters to accommodate specific battery chemistries and performance specifications.

- Automated sorting processes streamline operations and maximize throughput.

- High-precision measurement tools provide reliable grading results in real time.

- Comprehensive safety features ensure operator safety and prevent accidents.

- Intuitive user interface simplifies operation and monitoring for enhanced efficiency.





Technical Parameters



Number of equipment channels The whole machine has 32chs
Case color Standard gray / black (customizable)
Clamp type Custom
Working power supply Three phase five wire AC380V土10%, 50Hz
Voltage measurement range DC 0~5V
Current range Charge DC 6120mA~120A; Discharge DC 120mA~120A
Negative pressure range (-100KPa-0)adjustable
Data processing Can record voltage, current, time, capacity etc,
automatically calculate constant current charging ratio,
capacity loss, discharge efficiency, average voltage, median
voltage, provide data curve and cycle diagram; can output text,
excel,word or mdb format data file
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity
protection, power off protection, data breakpoint recovery





Product Details
