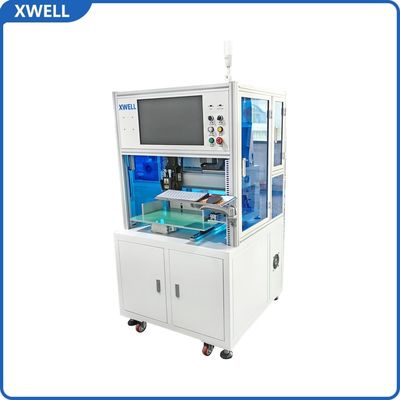

Transistor Single Sided Spot Welding Machine For Lithium Battery With PC

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Delivery Time:

7 Dyas

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Highlight:

single sided spot welding machine

lithium battery spot welder

PC controlled spot welding machine

Product Description

Transistor Single Sided Spot Welding Machine For Lithium Battery With PC

Product Description

Single sided spot welding machine is used to weld nickel sheets with many lithium batteries into a group pack, which is suitable for lithium battery pack assembly in the factory for 14500 18650 21700 26650 32700 etc multi-parallel multi-series combination.

Features:

This machine adopts three welding methods:

Fixed voltage welding : Control the voltage between electrodes, reduce the amount of current, and reduce the generation of sparks during welding

Fixed current welding: passing a certain amount of current, independent of the workpiece resistance, can stabilize welding

Fixed voltage&Fixed current welding: Welding is controlled by setting both current and voltage simultaneously

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
