Name: Automatic 18650 Cells Single Side Spot Welding Machine
Brand: GUANGDONG XWELL TECHNOLOGY CO., LTD.
SKU: XW-ADW
Price: 505,000.00 USD
Availability: InStock

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Delivery Time:

7 Dyas

Warranty:

1 Year

Order(Moq):

1set

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Highlight:

18650 battery spot welder

automatic spot welding machine

single side battery welder

Product Description

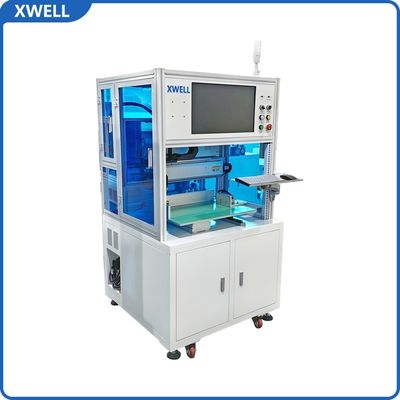

Automatic 18650 Cells Single Side Spot Welding Machine

This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.

Features :

1.Support break point start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
