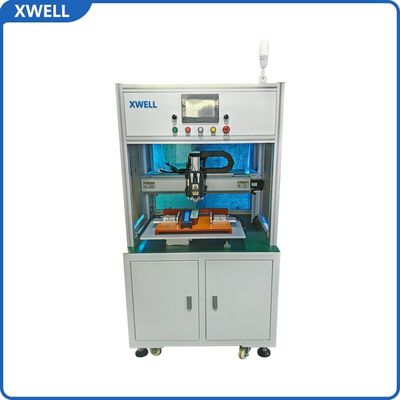

Single Side Cylindrical Battery Spot Welder Machine With Rotary Welding Head

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Delivery Time:

7 Dyas

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Highlight:

single side battery spot welder

cylindrical battery spot welding machine

rotary welding head spot welder

Product Description

Single Side Cylindrical Battery Spot Welder Machine with Rotary Welding Head

Description

Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.

Features

1.Using Motion Controller, Support arrays and non-arrays Rapid Programming for Simple Operation of Battery Pack.

2.Self-contained current welding alarm,Effective solution rosin joint.

3.Welding head rotation Effective solution Sticking Needle Problem of Nickel Plate and Pure Nickel Plate for Battery.

4.Welding needle compensation function Water-cooled heat dissipation system,Reducing the loss of welding needles.

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
