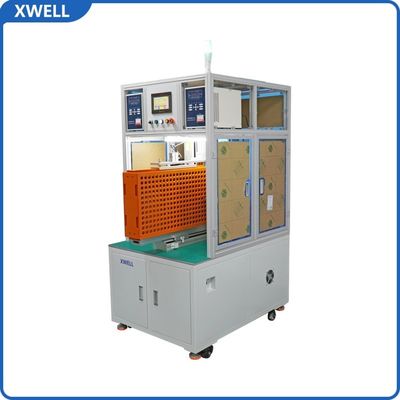

Automatic Double-Side Spot Welding Machine For 18650 Battery Pack

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Delivery Time:

7 Dyas

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Product Description

Automatic Double-Side Spot Welding Machine For 18650 Battery Pack

Product Description

This double-sided spot welding machine is equipped with a 10000A transistor welding power supply, which has the function of detecting the contact resistance between the weldment or the weldment and the welding needle. It can be well utilized to detect the welding resistance before spot welding, avoiding damage to the weldment and the welding needle during welding, and achieving high-precision and high reliability welding.

Features

1. Support breakpoint startup and Manual Start Mode Conversion.

2. High efficiency of double-sided automatic welding.

3. With welding current monitoring system, it can monitor welding current in real time.

4.Water-cooled circulating heat dissipation system is used in the self-contained welding needle compensation function to effectively reduce the loss of welding needles.

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
