Automatic Double Side Spot Welding Machine For Battery Pack
  • name

Automatic Double Side Spot Welding Machine For Battery Pack

MOQ: 1
Price: 10000-1000000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 7-15days
Payment Method: D/A,D/P,T/T,L/C
Supply Capacity: 30 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-ADW
Model:
XW-ADW
Delivery Time:
7 Dyas
Warranty:
1 Year
Order(Moq):
1set
Payment:
L/C D/A D/P T/T Western Union
Machine Size:
900L*1200W*1600Hmm
Product Description

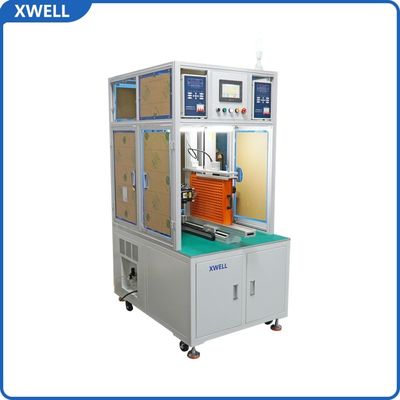

Automatic Double Side Spot Welding Machine For Battery Pack

Working process

The double-sided automatic spot welding machine consists of working power supply, working platform, servo motor, operating system and so on.

Manually put the cell into the fixture, place the nickel sheet; push it into the automation platform, and then set the relevant parameters, array, etc., the welding work can be realized.


Technical Specifications
Welding Head Number 2
Welding Head Types Rotary Welding Head
Rotation Function of Welding Head The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head R:180º
Adjustment Range The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel Y: 500mm; Z; Z2:350mm
Welding Speed 0.35s/spot,3600pcs/h
Welder Power Suppler 5000/8000A Inverter Spot Welder
Max Motor Speed 1000mm/s
Max Battery Number 200-600 pcs cells
User Interface Touch screen
Power Supply 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material Pure nickel sheet: 0.03-0.2mm
Nickel-plated steel strip: 0.03-0.3mm
Automatic Double Side Spot Welding Machine For Battery Pack 0
