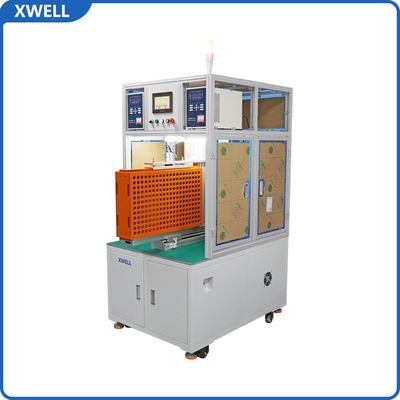

Double Sided Spot Welding Machine For Lithium Battery Pack

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Model:

XW-ADW

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Highlight:

double sided lithium battery spot welder

battery pack spot welding machine

lithium battery spot welder with warranty

Product Description

Double Sided Spot Welding Machine For Lithium Battery Pack

Double Sided Spot Welding Machine For Lithium Battery Pack is a high-performance solution designed for efficient battery pack assembly with precision and reliability.

Key Features

Support breakpoint start, automatic start, and manual start
Cold solder joint and sealing off alarm
Easy program, support matrix, array and point program, can store 99 group parameters
Welding needle abrasion alarm
Build-in welding current monitor, can display real time welding current
Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other lithium battery packs spot welding
High productivity: 0.35s/spot
Can be matched with the production line of lithium battery group
Automatic battery pack spot welder adopts traditional pneumatic single point dynamic, ensuring welding accuracy and improving welding appearance quality and reliability
Can store dozens process of different battery packs product, switching products without re-setting parameters
Can match a variety brand of spot welders

Application Area

With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.

Technical Specifications

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º
Adjustment Range	The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip: 0.03-0.3mm
