5V20A Battery Cell Charge & Discharge Capacity Tester

MOQ:	1 pcs
Price:	1000-100000USD/Negotiable
Standard Packaging:	Wooden box
Delivery Period:	10-15 working days
Payment Method:	T/T
Supply Capacity:	100 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

XWELL

Certification

Model Number

XW-5V3A512CH

Voltage Range:

2.5V–5V

Current Accuracy:

±0.1% FS.

Temperature Control:

25±2°C (critical For Stable Readings).

Channel:

Lead Time:

7-15days

Product Description

5V20A Battery Cell Charge & Discharge Capacity Tester

1. Overview

hree key technologies: 1. Energy saving: comprehensive energy saving of more than 70%, high-power inverter technology 2. High efficiency: labor efficiency increased by 50% 3. High quality: accuracy deviation <0.5% after 500 consecutive charging and discharging, high precision and stable detection technology Energy-saving battery based on high-frequency power feedback technology The working principle of chemical composition equipment:

Charging mode: PWM switching power supply mode is adopted to realize constant current and constant voltage charging of the battery. Advantages: high power conversion efficiency, generally above 85%.

2. Product features
(1) Subverting the traditional battery charging and discharging mode
The traditional linear regulated power supply charging mode is changed to PWM switching chopping charging mode, which greatly improves the charging conversion efficiency of the battery;

The discharged electric energy of the battery is recycled to the AC power grid by the electric energy feedback technology to realize the electric energy reuse, which effectively overcomes the shortcomings of the traditional battery discharge mode. The traditional mode of discharge is to convert the discharged electric energy of the battery into heat and waste it.

On the realization method of electric energy feedback, the high-frequency PWM rectifier technology can realize bidirectional energy transfer, which is ingeniously applied to the field of electric energy recovery. In principle, it can overcome the phenomenon that the traditional thyristor phase control device is prone to reverse and cause DC circuit.

Specification:

Channel voltage and current	5V/3A
Channel number	512 Channnels
Parallel unit number per channel	1
Input AC type	3 phase AC380V ±10%/50Hz
Maximum input power	14KW
Noise	≤65dB
AC power supply wiring mode	Three-phase five wire connection
The power factor of power supply	≥0.99(The load power is more than 30% of rated power)
Total current distortion rate	THD≤5%
Constant voltage setting range	Charging:0.02V~5V
Minimum discharge voltage	Discharging:1V~5V
Measuring range	0V~5V
The voltage resolution	0.1mV
The voltage resolution	0.1mV
Charging current setting range	0.02A~3A
Discharging current setting range	0.02A~3A
Measuring range	0A~3A
Single channel maximum output power	30W

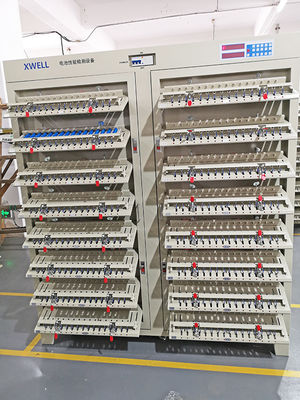

Machine picture:

5V20A Battery Cell Charge & Discharge Capacity Tester 0
