512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester

MOQ:	1 pcs
Price:	1000-100000USD/Negotiable
Standard Packaging:	Wooden box
Delivery Period:	10-15 working days
Payment Method:	T/T
Supply Capacity:	100 pcs per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

XWELL

Certification

Model Number

XW-5V3A512CH

Voltage Range:

2.5V–5V

Current Accuracy:

±0.1% FS.

Temperature Control:

25±2°C (critical For Stable Readings).

Channel:

Lead Time:

7-15days

Product Description

512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester

This battery testing machine can be used for cylindrical battery capacity, internal resistance, charging and discharging test, etc.(Optional: Battery tester with tray loading and Energy feedback function.)

1. Each channel can be started and stopped at a single point, and the response speed is fast.

2. The operation is simple, convenient and intuitive.

3. Modular design, easy to maintain..

4. The digital current and voltage automatic calibration function.

5. Using network connection and SQL database.

6. The hardware technology is advanced, stable and durable.

7.Suitable for testing 18650,21700,26650,32650,32700 battery cell.

Specification:

Channel voltage and current	5V/3A
Channel number	512 Channnels
Parallel unit number per channel	1
Input AC type	3 phase AC380V ±10%/50Hz
Maximum input power	14KW
Noise	≤65dB
AC power supply wiring mode	Three-phase five wire connection
The power factor of power supply	≥0.99(The load power is more than 30% of rated power)
Total current distortion rate	THD≤5%
Constant voltage setting range	Charging:0.02V~5V
Minimum discharge voltage	Discharging:1V~5V
Measuring range	0V~5V
The voltage resolution	0.1mV
The voltage resolution	0.1mV
Charging current setting range	0.02A~3A
Discharging current setting range	0.02A~3A
Measuring range	0A~3A
Single channel maximum output power	30W

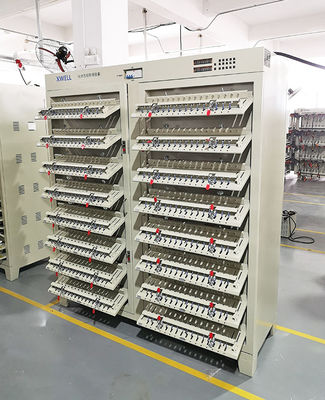

Machine picture:

512 Channel 5V 6A Lithium Polymer Battery Charge Discharge Capacity Tester 0
