Prismatic Battery Cell Stacking Compress Machine 1.5kw 220V
  • name

Prismatic Battery Cell Stacking Compress Machine 1.5kw 220V

MOQ: 1 pcs
Price: 10000-1000000USD/Negotiable
Standard Packaging: wooden case
Delivery Period: 7- 15days
Payment Method: L/C,D/A,D/P,T/T
Supply Capacity: 50 pcs a month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
XWELL
Certification
CE
Model Number
XW-12
Input Power:
1.5kw
Warranty:
One Year Warranty With Lifetime Support
Payment:
T/T
Highlight:

220V Prismatic Battery Compress Machine

,

1.5kw Prismatic Battery Compress Machine

,

1500w stacking compress machine

Product Description

Prismatic  Battery Cell Stacking Compress Machine



Description



XW-PC12 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.



Features



  • 7-inch touch screen with PLC for control, easy to operate.
  • Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
  • Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
  • Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy.



2.11 Real time monitoring of extrusion distance and extrusion pressure dual protection, each parameter can be adjusted through PLC；



Ⅲ,Equipment environmental conditions requirements :
3.1 Ambient temperature:5ºC-35 ºC
3.2 Humidity:20%-90%
3.3 Air Pressure :0.5～0.6 Mpa
3.4 Supply voltage:220V-50Hz/60Hz
3.5 Area to weight ratio:≤200kg/M²
3.6 Grounding type: direct grounding type
  • Specication
  • Equipment Efficiency 50 groups/hour (10PCS battery cells)
    Equipment grafting rate ≥98%
    Extrusion stroke 1000mm
    Stacking maximum pressure 100KG
    Adaptable size range L:50~250mm；W:20~100mm；H:100~300 mm
    Pressure control error  0.1KG
    Control system PLC+touch screen
    Input power supply AC220V/50HZ
    Weight 300kg
    Equipment appearance reference size  L*W*H=1570*500*1400mm
  • Picture

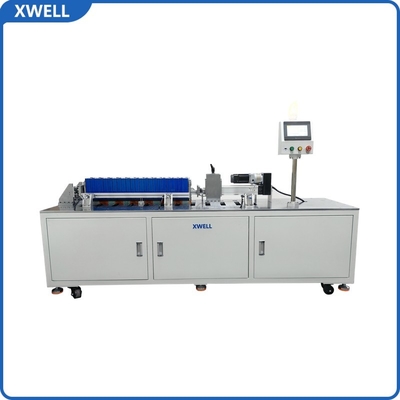

  • Prismatic Battery Cell Stacking Compress Machine 1.5kw 220V 0
