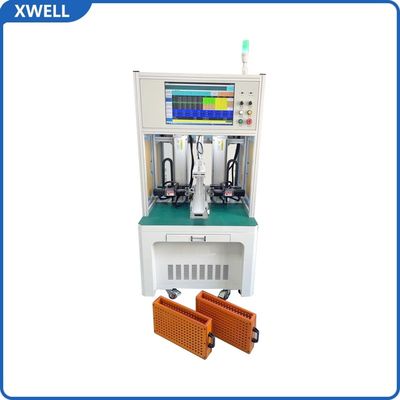

Double Side Numerical Control Spot Welding Machine With 5000A 8000A Inverter Spot Welder

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Warranty:

1 Year

Order(Moq):

Payment:

L/C D/A D/P T/T Western Union

Machine Size:

900L*1200W*1600Hmm

Highlight:

Automatic Battery Spot Welding Machine

Numerical Control Battery Spot Welding Machine

8000A automatic battery spot welding machine

Product Description

Automatic Double Sides Numerical Control Spot Welding Machine With 5000A/8000A DC Inverter Welding Power Supply

quipment Introduction

It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!

Features

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. Simple programming, support any point programming and array programming, can realize jump spot

welding, single point, double point mode fast switching, spot welding path optimization, improve efficiency, local disk can store 99 groups of programming files, USB interface can import graphics.

3. The spot welding head takes the center point of two welding pins as the circle center, and the angle is continuously adjustable, which is suitable for spot welding of various special-shaped split connection pieces.

4. The system is divided into operator, administrator, super user and so on. It is convenient to use, manage and maintain butt welding machine.

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm


Double Side Numerical Control Spot Welding Machine With 5000A 8000A Inverter Spot Welder 0
