Double Sided Battery Powered Spot Welder For 18650 Battery Electrode Sheet

MOQ:	1
Price:	10000-1000000USD/Negotiable
Standard Packaging:	wooden case
Delivery Period:	7-15days
Payment Method:	D/A,D/P,T/T,L/C
Supply Capacity:	30 pcs a month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

XWELL

Certification

Model Number

XW-ADW

Order(Moq):

Input Power:

Payment:

L/C D/A D/P T/T Western Union

Delivery Time:

7 Days

Highlight:

Double Sided battery powered spot welder

18650 battery powered spot welder

2KW 18650 battery spot welding machine

Product Description

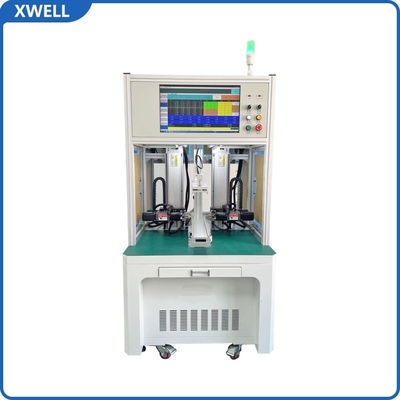

Double-sided Spot Welding Machine For 18650 Battery Electrode Sheet

Description

ACEY-D300A is suitable for battery pack double-sided spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. The operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.

Features

1. Support breakpoint start, automatic start, and manual start.

2. Cold solder joint and sealing off alarm.

3. Easy program, support matrix, array and point program, can store 100 group parameters.

4. Welding needle abrasion alarm.

5. Build-in welding current monitor, can display real time welding current.

6. Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other

lithium battery packs spot welding.

7. Can be matched with the production line of lithium battery group.

8. Can store dozens process of different battery packs product, switching products without re-setting parameters.

Specification

Welding Head Number	2
Welding Head Types	Rotary Welding Head
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Rotary Welding Head	R:180º The distance between tooling platform and welding needle can be adjusted by 30 mm.
Travel	Y: 500mm; Z; Z2:350mm
Welding Speed	0.35s/spot,3600pcs/h
Welder Power Suppler	5000/8000A Inverter Spot Welder
Max Motor Speed	1000mm/s
Max Battery Number	200-600 pcs cells
User Interface	Touch screen
Power Supply	220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm


Double Sided Battery Powered Spot Welder For 18650 Battery Electrode Sheet 0
