6PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine

1
MOQ
Negotiable
Price
6PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: 6 PPM/min
Qualified: 99.5%
Weight: 1200KG
Voltage: AC220±10%
Warranty: One Year
High Light:

Ultrasonic Lithium Battery Production Line

,

Lithium Battery Production Line 5KW

,

Lithium Battery Production Line 6PPM/Min

Basic Infomation
Place of Origin: China
Brand Name: Zecehng
Model Number: ZC-CC-05
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

6 PPM/Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine



1. Brief introduction of equipment
After winding or lamination is completed, the lithium electrode lug is preliminarily welded by an ultrasonic welding machine.
2. Equipment composition

NO.



Name



Quantity



Unit



Remarks



1



Frame and cover



1



Set





2



Feeding mechanism



1



Set





3



Rotary table mechanism



1



Set





4



Electric core positioning mechanism



1



Set





5



Welding mechanism



2



Set



Equipped with 2 sets of popular science 5.6KW ultrasonic wave and vacuum cleaner



6



Safety grating



1



Set





7



Cutting mechanism



1



Set





8



Shaping and dedusting mechanism



1



Set





9



Electronic control system



1



Set

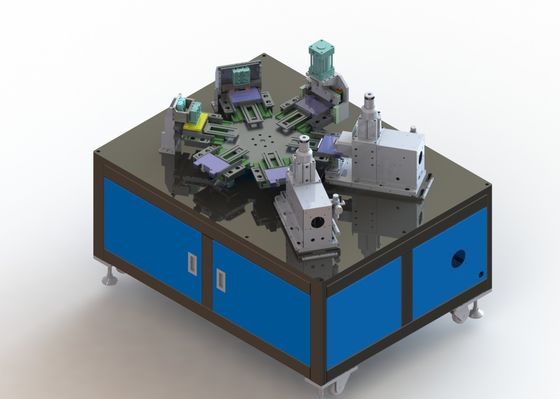

3. A six-station layout is adopted, and the battery core and the fixture are fixed and then processed in each sequence. The precision divider is used to drive each station to rotate. The whole process of the equipment is equipped with accompanying clamps. The battery core is pressed and fixed on the clamps by a pre-tightening plate without displacement, which can reliably improve the welding accuracy.

6PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine 0

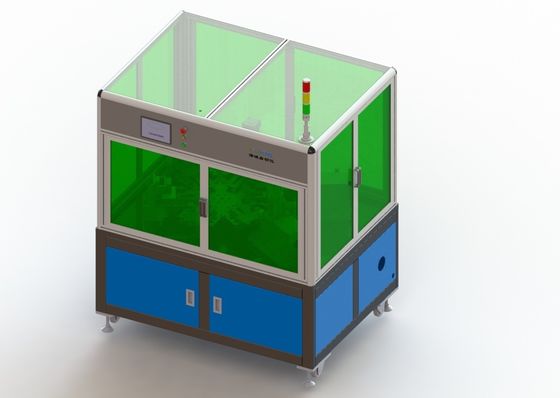

6PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine 1

Commitment

1. New equipment promise

Our company guarantees that all the components of equipment will be in completely new condition, none used components.

2. Confidential commitment.

Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.

3. After-sales service commitment

Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.

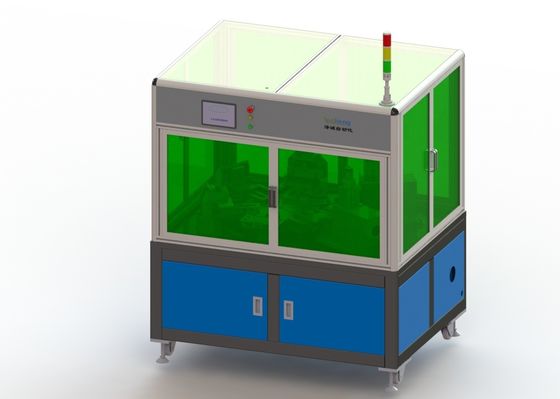

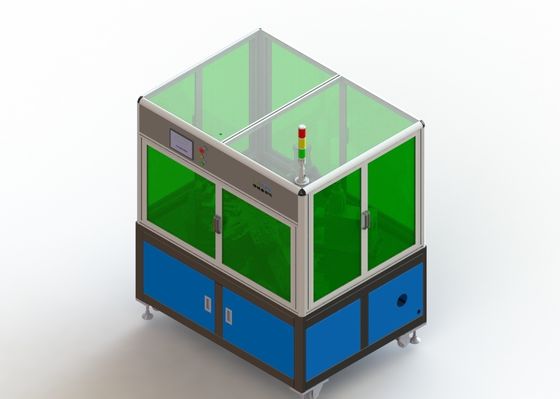

6PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine 26PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine 36PPM/ Min Lithium Battery Production Line 5KW Ultrasonic Cell Pre Welding Machine 4



FAQ

Q1: Are you factory or trading company?

A: We are factory, with our R&D team, production department, from battery welding machine, etc design , drawing, process, assembly,commission, and final package and shipping.

Q2: Do you accept customization?

A2: YES. we accept customized machine. our R&D team with 10+year experience can do customization.

Q3: About Price?

A3: Price is negotiable. The price depend on battery type and welding process ,and also related to order quantity.



Q4: About delivery?

A4. Standard welding machine can be delivered within 10days. Customized battery assembly machine can be delivered within 40 working days or negotiable.
