10ah 1.65v Nickel Zinc Battery XNF10 Battery Production Line

10
MOQ
Negotiation, email communication
Price
10ah 1.65v Nickel Zinc Battery XNF10 Battery Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Voltage: 1.65v
Nominal Capacity: 10ah
Internal Resistance: 2.5mΩ
Discharge Cut-off Voltage: 1.3v
High Light:

1.65v Nickel Zinc Battery

,

10ah Nickel Zinc Battery

,

XNF10 Battery

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: XNF10
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per months
Product Description

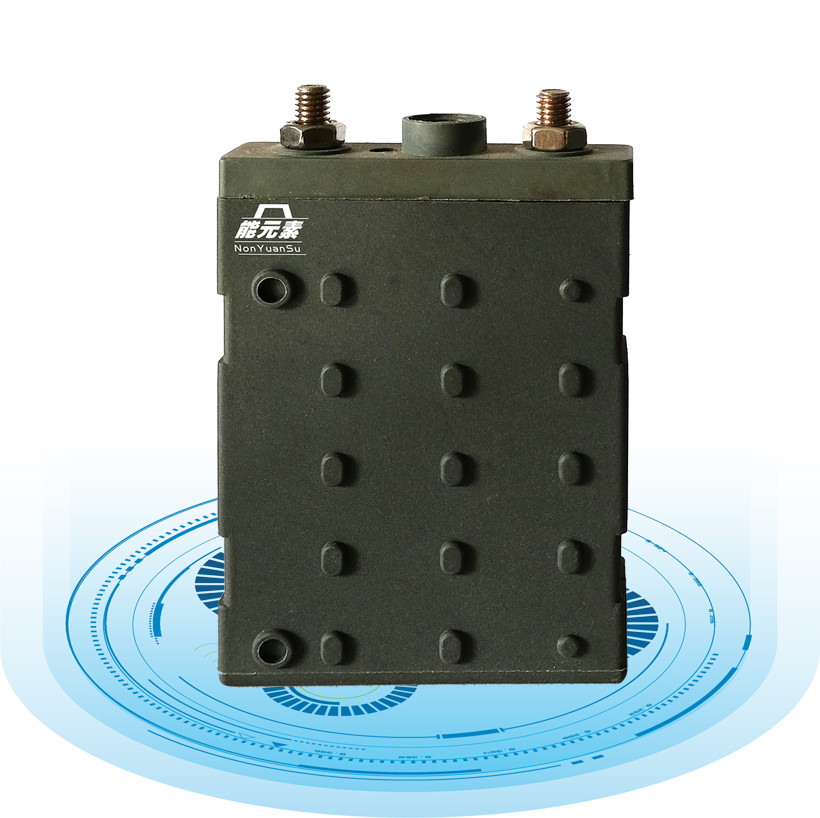

Nickel zinc battery XNF10 Battery



Properties:

High Energy density
zinc nickel battery energy density can reach: 100Wh /kg, much higher than lead acid battery, nickel hydrogen battery 30Wh/kg-60Wh /kg, more portable, occupy less space;

High discharge rate
zinc-nickel battery has excellent discharge performance at high current, with discharge rate greater than 100C (A). Compared with other batteries, the battery only has A discharge rate of 25C-40C, which can provide more lasting power under the same discharge capacity.

Quick charge
zinc-nickel battery can be charged within 2 hours during quick charging, which is faster than the previous lithium ion battery in 2-4 hours and lead-acid battery in 6-8 hours

Wide range of working temperature
Zinc-nickel battery to adapt to the temperature range :-40 ~55, excellent temperature suitability is very important to battery performance, will not occur combustion explosion, battery activity is still very good at low temperature,-20 can release 90% of the normal temperature,-40C can release 60% of the power

Green environmental protection
zinc nickel battery main raw materials are zinc, nickel, copper, etc., other raw materials are non-toxic and pollution-free, its production and use process does not produce toxic and polluting substances. Fully in line with the national and world environmental protection trend;

Safe and reliable
zinc nickel battery even in extreme conditions, including external short circuit, puncture, fall, extrusion, overcharge, etc., and even the shooting battery itself will not burn, explosion, to ensure the personal safety of users;

Recyclable
it is with the same Recovery value after the end of value Battery life



Product model: XNF10Ah
Size L * W * H mm 67*22*106
Rated voltage v 1.65
Nominal capacity Ah 10
Internal resistance 2.5
Discharge cut-off voltage v 1.3
Standard discharge current A 2
Standard charging current A 2
Quick charge current A 10
Charge cut-off voltage v 1.9
The weight of the kg 0.25
Specific weight energy wh/kg 66
Working temperature C -40~65
Cycle life cycle 500 or more



10ah 1.65v Nickel Zinc Battery XNF10 Battery Production Line 0









Commitment

1. New equipment promise

Our company guarantees that all the components of equipment will be in completely new condition, none used components.

2. Confidential commitment.

Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.

3. After-sales service commitment

Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.





FAQ

Q1: Are you factory or trading company?

A: We are factory, with our R&D team, production department, from battery welding machine, etc design , drawing, process, assembly,commission, and final package and shipping.

Q2: Do you accept customization?

A2: YES. we accept customized machine. our strong R&D with 10+year rich experience can do customization.

Q3: About Price?

A3: Price is negotiable. It can be changed according to each battery welding or sorting machine internal configuration ,and also your order quantity.

Q4: About delivery?

A4. Standard welding machine can be delivered within 10days. Customized battery assembly machine can be delivered within 40days or negotiable.
