200W Laser Pole Cutting Machine Lithium Ion Battery Production Line

200W Laser Pole Cutting Machine Lithium Ion Battery Production Line
Features Gallery Product Description Request A Quote
Laser Power: 200W
Speed: 800mm/s
Power: 18KW
Percent Of Pass: 99.8%
Voltage: AC220±10%
Warranty: 1 Year
High Light:

Li Ion Battery Laser Pole Cutting Machine


Lithium Ion Battery Laser Pole Cutting Machine


200W Battery Laser Pole Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZCCA03B
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

200W Laser Pole Cutting Machine Lithium Ion Battery Production Line

1. Products and materials suitable for the equipment

1.1. The device completes the lamination or winding process of the pole slice laser pole cutting ear of lithium ion battery.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic Adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the laser cutting plate location, the laser will be extremely ear forming, cutting through the CCD detection plate surface quality and dimension, defect position to stick logo;

1.2. The specification of adaptive materials is as follows:




Material sheet length(mm) Material width(mm) Thickness of the material(μm)

The largest diameter


The inner diameter


Size range Size range tolerance Size range tolerance
Positive plate coil --- 100-300 0.1 100~280; 3 φ400 φ 76.2
Cathode Plate coil --- 100-300 0.1 100~280 3 φ400 φ76.2



1.3 material requirements

1.3.1. The rewinding error of pole sheet is less than ±1mm

1.3.2 the snaking bending error of the pole sheet is less than 0.3mm/m

1.3.3 the thickness difference of the pole slices is less than 5um

2. External dimensions of the equipment:

2.1 Overall size: W3800×H2000×D1400 (for reference)

2.2. Equipment weight: 2000Kg;

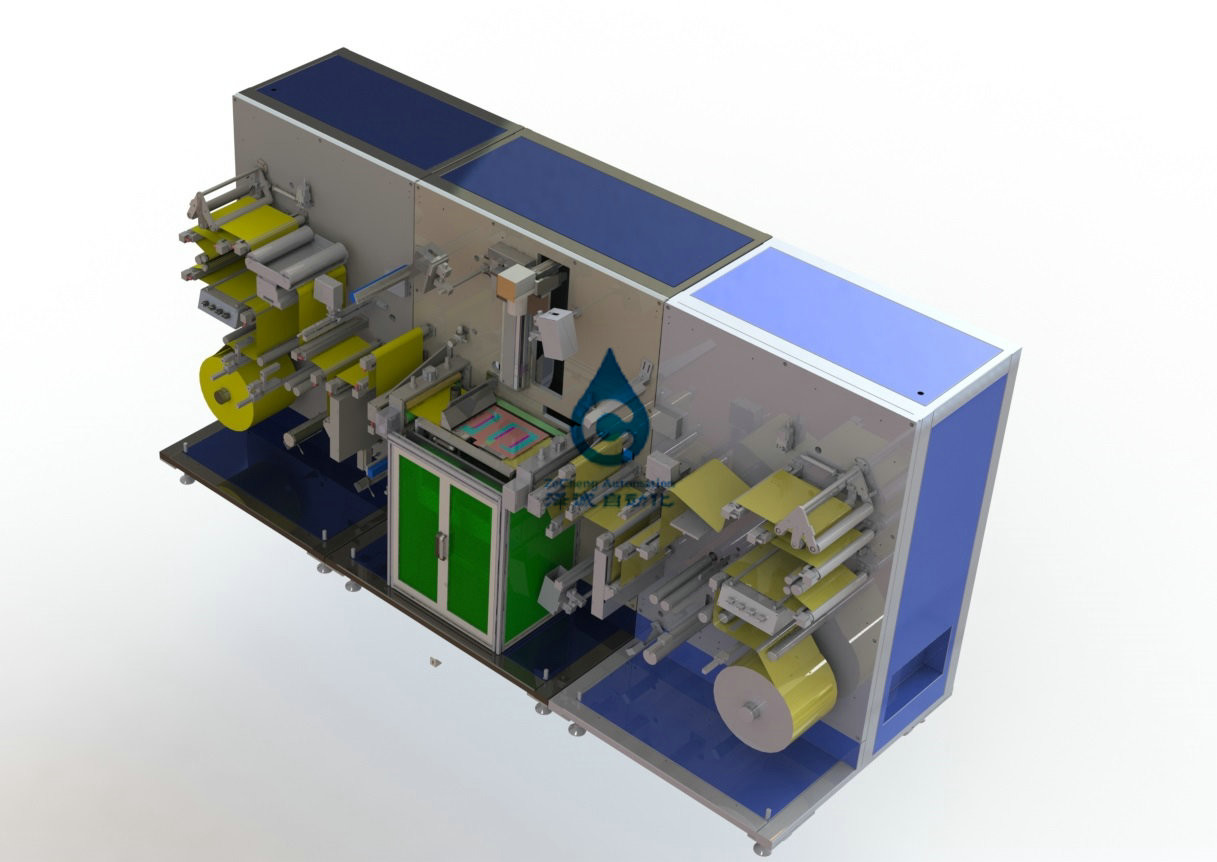

200W Laser Pole Cutting Machine Lithium Ion Battery Production Line 0

3, the technical parameters

3.1, Sheet coil material feeding, automatic correction;Rectifying error: + / - 0.1 mm

3.2, Automatic adjustment, automatic winding, winding error is + / - 1.0 mm;

3.3, Laser cutting sheet was extremely ears, can automatically adjust pole spacing.After cutting burr height is less than 0.005 mm, very ear cutting position error: less than + / - 0.2 mm, the size of the pole ear error: + / - 0.2mm

3.4, Cutting speed: 800-1200mm/s

3.5, automatic tension, tension control in 0.1-1.5Kg, adjustable;The relative error is 5%.

3.6, reserve the position of CCD inspection pole quality function and the position of automatic labeling;

3.7, brush powder, dust absorption function;

3.8, automatic waste collection and cutting function;

4, Requirements for working conditions of equipment

4.1, Power supply: single-phase AC220V 3.8kva, voltage fluctuation range: ± 10%;

4.2, Compressed air: 0.4-0.6mpa;

4.3, Ambient temperature: 20-35℃;

4.4, Relative humidity: 30-55% HR;

4.5, Environmental cleanliness shall not be lower than 100,000;

4.6, No corrosive gas, liquid, explosive gas on site.

200W Laser Pole Cutting Machine Lithium Ion Battery Production Line 1200W Laser Pole Cutting Machine Lithium Ion Battery Production Line 2



1. New equipment promise

Our company guarantees that all the components of equipment will be in completely new condition, none used components.

2. Confidential commitment.

Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.

3. After-sales service commitment

Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
