18650 Cylindrical Battery Production Machine Three Way 380V 50HZ 3KW

18650 Cylindrical Battery Production Machine Three Way 380V 50HZ 3KW
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.5%
Weight: 1650KG
Voltage: AC220±10%
Warranty: 1 Year
High Light:

18650 Cylindrical Battery Production Machine


Three Way Battery Production Machine


50HZ Battery Production Equipment

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZC-GA-01-03
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 80-100 Working day
Payment Terms: L/C, T/T
Product Description

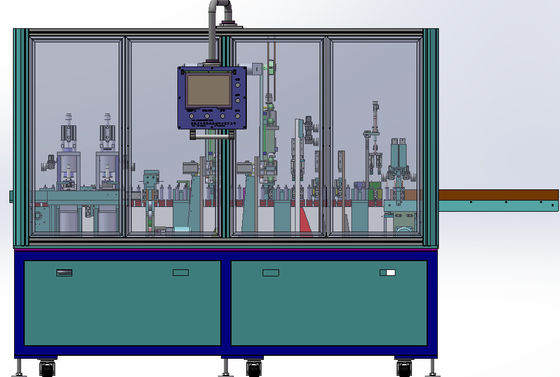

Three Way 18650 Cylindrical Battery Production Machine


1: introduction of device function and principle


Used for spot bottom welding, pin shifting, tension testing, punching top insulation sheet and rolling groove of cylindrical 18650 battery.


2: device action flow


Belt feeder (a 2) -> artificial plug welding needle batteries shunt or two into the material at the bottom of the mouth - batteries into the tape pull - automatic spot welding to stir welding needle, pull test - NG out - second rotational positioning pole ear to automatically into the insulation slices, detect the presence of insulating piece - NG out - the wheel to roll into the slot location, battery roll groove (a) and discharging.


3: technical parameters of the equipment

The basic parameters
Single machine efficiency ≥50PPM (one out two)
Welding materials needle Aluminum oxide copper
Product pass rate 99%
Device rotation rate 95%
Precision stampings +/- 0.2MM
Blunt knife life 500000 times or more
Hob life 800000 times or more
Up and down shaft life 800000 times or more
The noise 60db or less
Plant configuration
The compressed air Acuity 0.6MPa
The input voltage 380V/50HZ,3KW (excluding welding machine)


18650 Cylindrical Battery Production Machine Three Way 380V 50HZ 3KW 0



18650 Cylindrical Battery Production Machine Three Way 380V 50HZ 3KW 1


4.Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. En

(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
