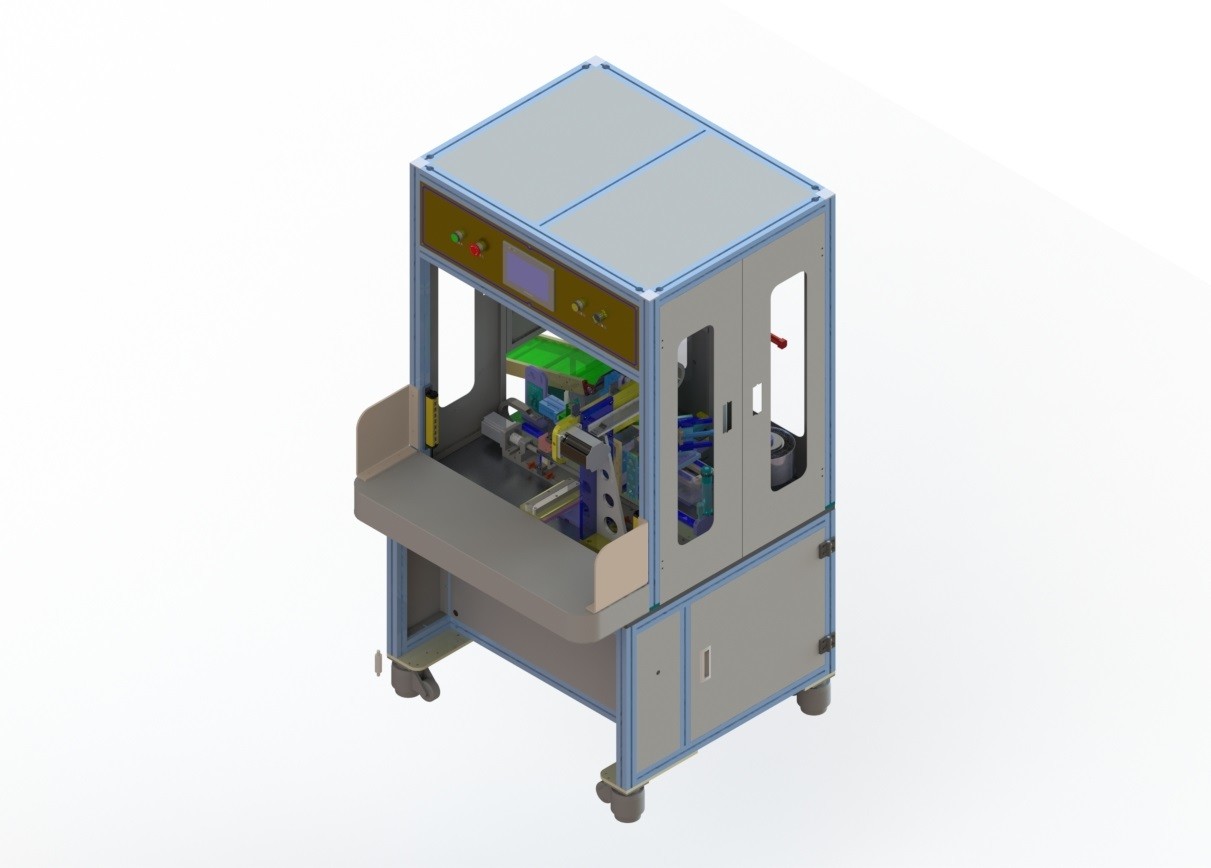

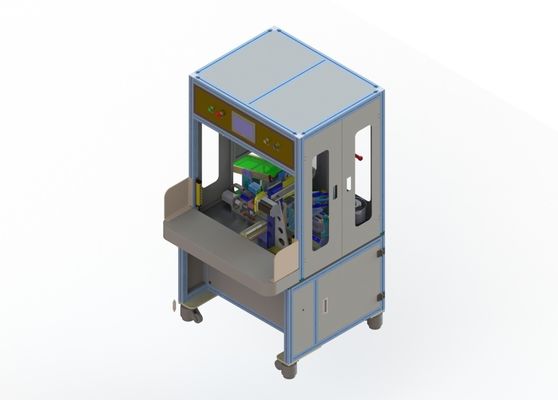

AC220V Lithium Ion Battery Production Line 500KG Simplex Tape Wrapping Machine

Negotiation, email communication
AC220V Lithium Ion Battery Production Line 500KG Simplex Tape Wrapping Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 500KG
Warranty: 1 Year
Voltage: AC220±10%
Film Sticking Accuracy: +/-0.5mm
Voltage/pressure: 0.6-0.8 KGF /cm.AC220V
High Light:

AC 220V Lithium Ion Battery Production Line


Tape Wrapping Lithium Ion Battery Production Line


500KG tape wrapping machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-31
Payment & Shipping Terms
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Lithium Ion Battery Polymer Battery Simplex Tape Wrapping Machine 500KG


1. Purpose:

It is suitable for semi-finished film (with airbag) and protective film of finished battery

2. Product features:

2.1: it can adapt to different specifications of polymer flexible cell envelopment, suitable for battery envelopment of different lengths, widths and thicknesses. The corresponding parameters of different batteries can be set through man-machine interface

2.2: the method of laminating adopts the u-type laminating method, which can be applied to the battery laminating (finished products and semi-finished products) of different specifications with simple and convenient operation and low maintenance cost.

2.3 laminating efficiency 500-600pcs /h, manual continuous feeding, automatic laminating, automatic blanking, laminating effect consistency is good, easy to understand the operation (or link the automatic line).

2.4 application of batteries: polymer soft-coated battery semi-finished film and finished battery protective film. 2.5 scope of application: polymer soft-coated battery electrical core envelope


3. Technical parameters:

Battery thickness Battery height Battery width
2-15mm 50-110mm 60-100mm

3.4. Film sticking accuracy: +/-0.5mm

3.5 product yield: ≥99%, under normal conditions. Failure rate ≤ : 3%/

3.6. Laminating method: manual feeding (or automatic feeding of assembly line or pallet), automatic laminating (package laminating), and automatic feeding.

3.7 material and specification: coil PE protective film, inner diameter: 78mm, outer diameter 180mm

3.8. Mechanical efficiency of equipment: 9-10ppm.

3.9. Voltage/pressure: 0.6-0.8 KGF /cm.AC220V

3.10 machine size: length 940mm wide *820mm* height 1850mm.

cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
