High Speed 30PPM Metal Die Cutting Machine 220V For Battery Pole Piece

Negotiation, email communication
High Speed 30PPM Metal Die Cutting Machine 220V For Battery Pole Piece
Features Gallery Product Description Request A Quote
Condition:: New
Year: 2022
Dimension(L*W*H):(kw): 7500*1780*2395
Voltage: 220V
Effectiveness: 30PPM
Weight: 6500 KG
High Light:

220V battery metal die cutting machine


battery pole piece metal die cutting machine


battery pole metal slitting machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

High-speed battery pole piece metal die cutting machine

1equipment profile:

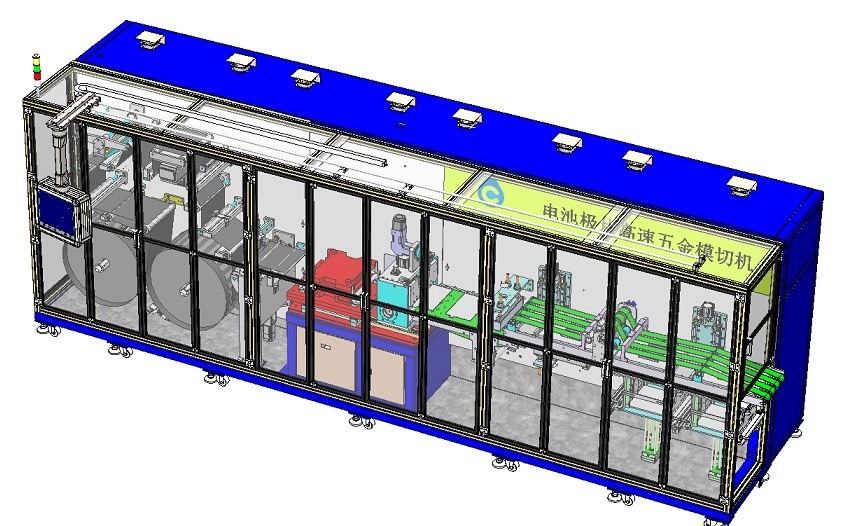

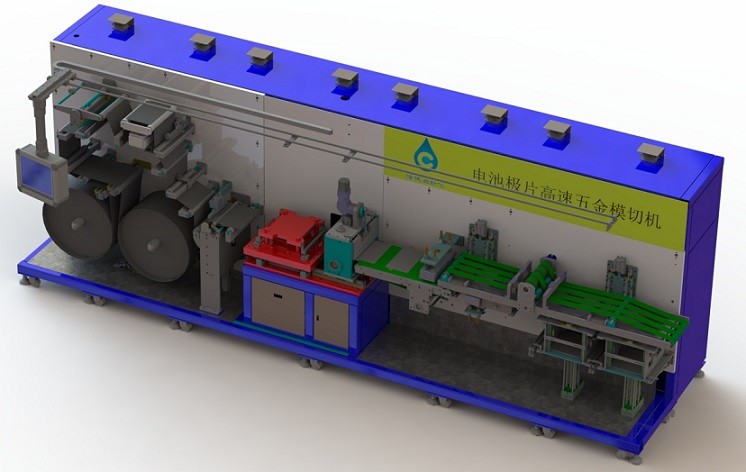

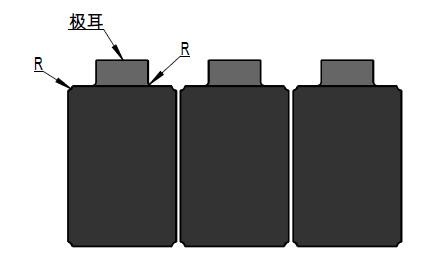

This equipment completes the lamination type lithium ion battery pole metal mold slicing process, the continuous coil material is cut into a single pole.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the sheet metal die cutting station, hardware die will be extremely ear and arc Angle cutting forming, cutting location with a cutting knife for sheet cutting into single pole piece, then to dust removal of single pole piece, through CCD detection plate surface quality and dimension, bad product has been dropped into the waste box, non-conforming material was sent to the material collecting box.

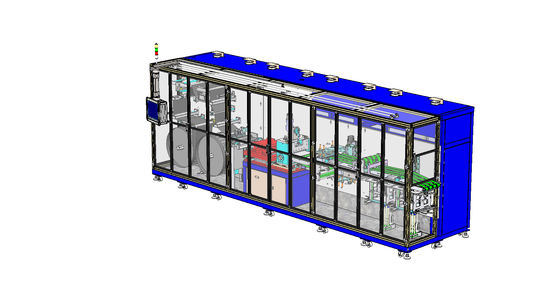

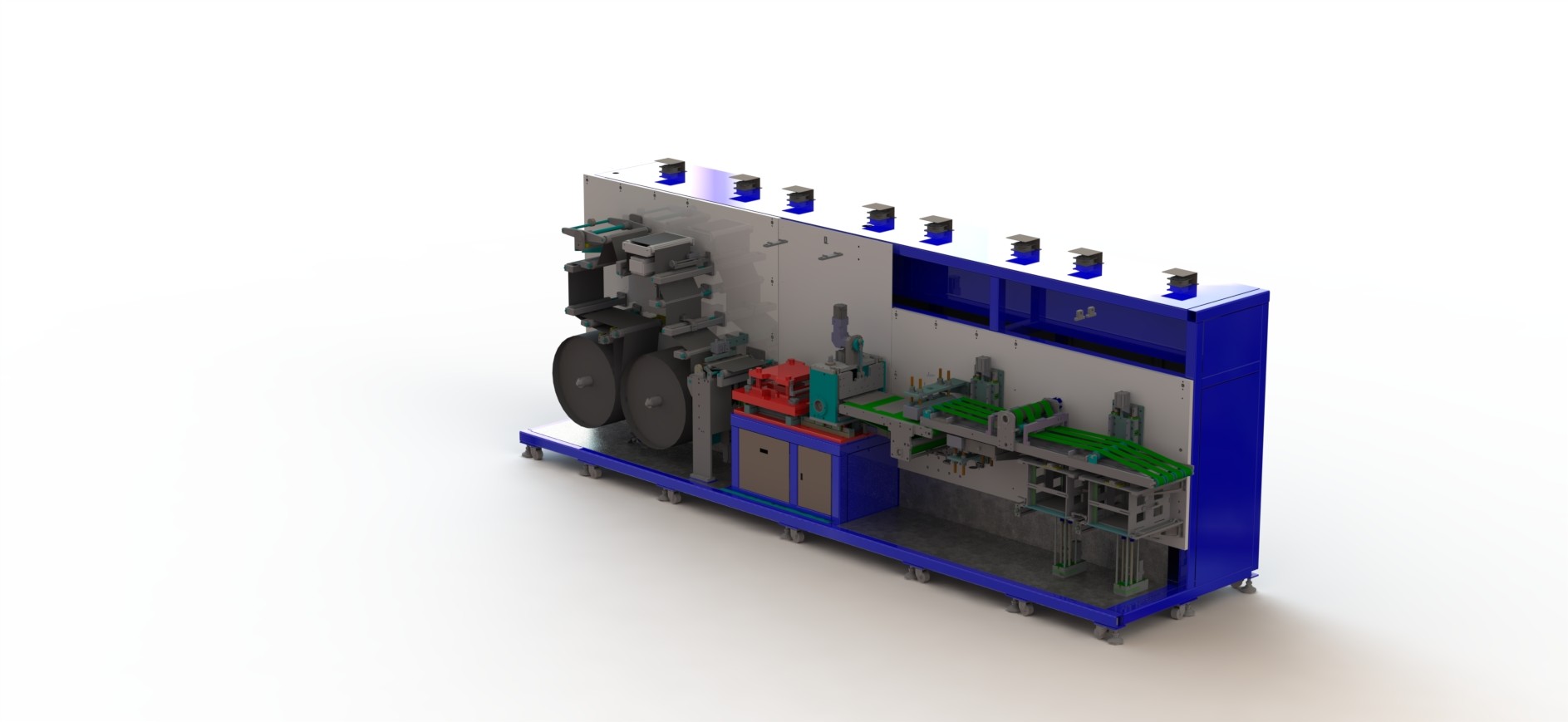

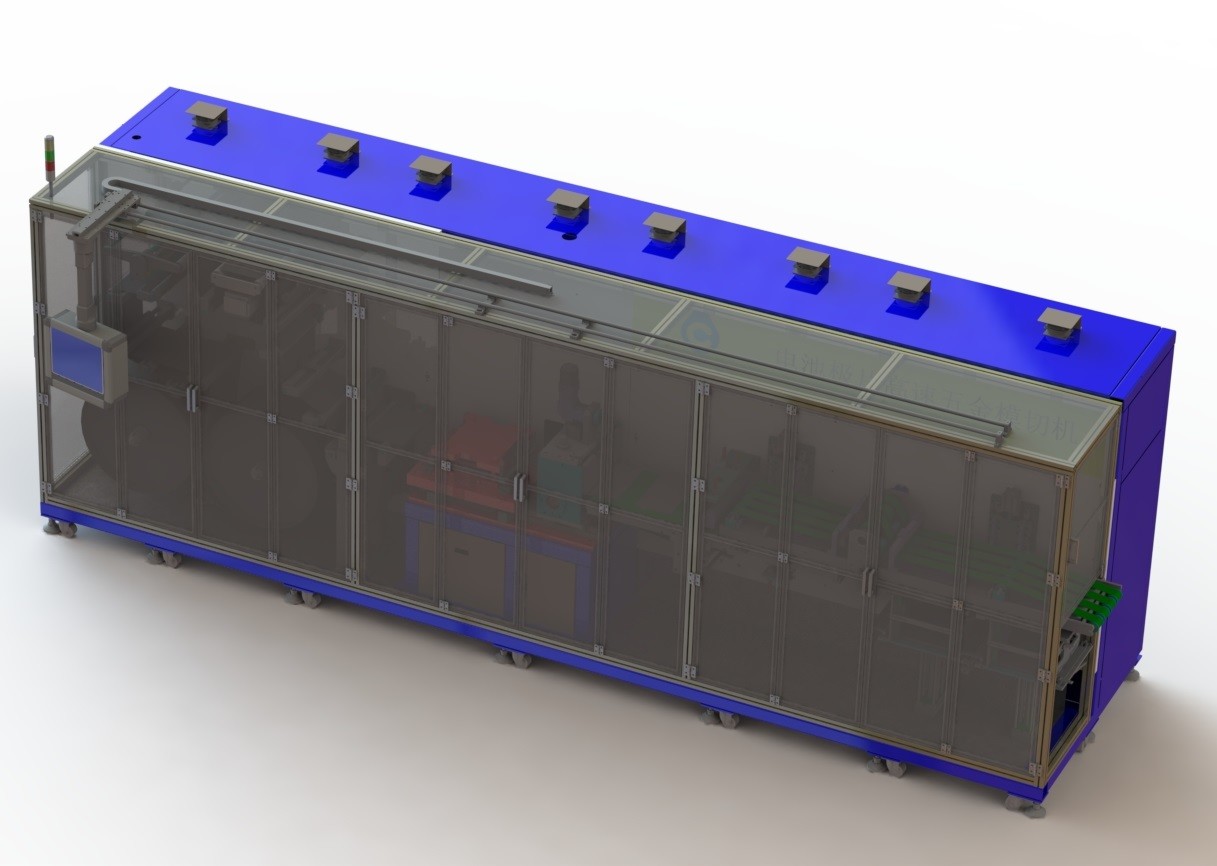

1.1external dimensions of the equipment:Overall size (mm) : length * width * height 7500*1780*2395 (including protective cover and vacuum cleaner)Equipment weight: 6500KG
High Speed 30PPM Metal Die Cutting Machine 220V For Battery Pole Piece 0
2.Scope of equipment adaptation and technical parameters 2.1 the specification of adaptive materials is as follows:
Material specifications
Pole piece
The largest diameter(mm)
The inner diameter(mm)
Maximum weight of coil
2.2 material requirements: 1. Incoming material must be continuous coating 2.Rewinding error of pole sheet: ±5mm; 3.Snaking bending error of pole sheet: ±0.5mm/1000mm;
2.3 technical parameters and functions of the equipment: 2.3.1 equipment technical parameters:
Technical parameters
Pole width W range/precision
Pole height H range/accuracy
Polar ear shoulder width Dt range/accuracy
Polar ear width Wt range/accuracy
Polar ear height Ht range/accuracy
10-30mm/±0.5mm(According to the size of the incoming material)
Total life of hardware mould
>100000 hours
Grain rate (failure caused by equipment only)
Qualified rate (except defective incoming materials)
3,Equipment operating environment 3. Power supply: three-phase 380V;Voltage fluctuation is less than ±10%;The maximum power of the equipment is 16kw; 2. Gas requirements: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, drying; 3. Total weight of the equipment: 6500kg; 4. Plant floor bearing: > 800kg/㎡; 5. Ambient temperature: 20 ~ 35℃; 6. Relative humidity: 5 ~ 55% HR; 7. Operating environment requirements: the environmental cleanliness shall be no less than 100,000, and there shall be no corrosive gas, liquid or explosive gas on the site;
