PLC Auto Starter Lithium Mobile Phone Battery Production Line
Auto Starter Lithium Battery Production Mobile Phone Battery Production Line
Auto starter battery, mobile phone battery, energy storage battery, automatic production equipment

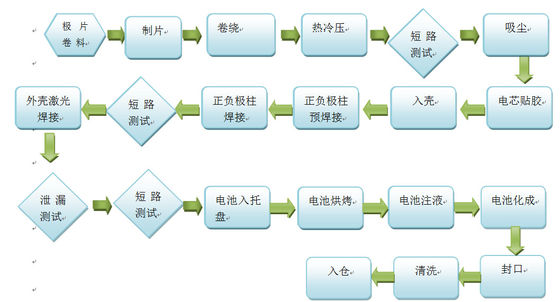

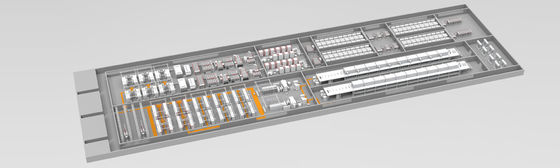

I. lithium battery production line:
1. Automatic production line of aluminum battery
1.1. Design requirements of complete equipment for lithium ion battery production
1.1.1 Production capacity requirements:
| NO. | Capacity requirement (per minute only) | Working hours/day |
| 1 | 6PPM | 20hours |
1.1.2. The whole line is fully automatic production, and all stations realize automatic feeding and unloading of the manipulator.
1.1.3. Features:
1.1.3.1 automatic feeding, automatic weighing, automatic filtering of iron powder, automatic mixing and mixing, to achieve dust-free production.
1.1.3.2 coating paste automatic feeding, automatic coating, baking.
1.1.3.3. Hardware mold cutting and lamination with high speed.
1.1.3.4 lamination process.
1.1.3.5, the battery cell is automatically completed in all processes after lamination, and the equipment in all processes has its own detection function, effectively solving the quality control problems of the power battery product line. With the function of data analysis, the format of the database is consistent with the requirements of the central control system of the buyer. During the whole production process, the electrode and the cell are not touched manually.
1.1.3.6 each single machine is equipped with an independent PLC and touch screen. The entire production line can be operated by a single machine or the whole line can be automatically produced. The single machine will start to move after the detection of the electric cell , and the single machine will not move after the detection sensor is cancelled.

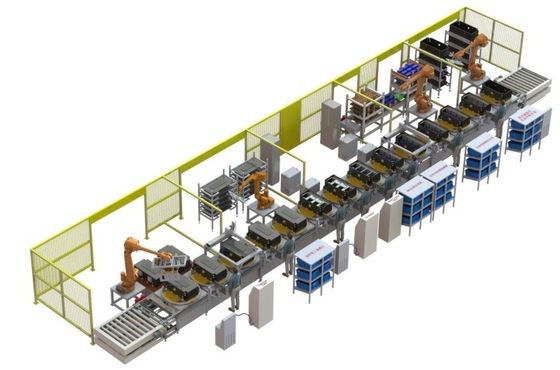

1.1.3.7 gripper carrier is adopted for battery transportation to effectively avoid friction pollution caused by flat belt transmission.
1.1.3.8, the model is easy to replace, the fixture carrier can be adjusted according to the need, save cost.
1.2 the production system meets the following material specifications:
| model | W width (mm) | L height (mm) pole column | H thickness (mm) |
| ZDAD01A | 130 | 155 | 36 |
| 120 | 187 | 45 | |
| 112 | 207 | 59 | |
| 90 | 110 | twenty two |

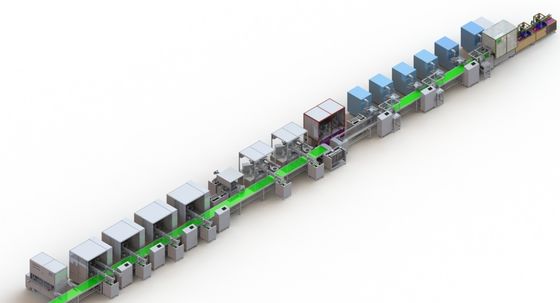

1.3 Device configuration:
| NO. | Process name | Device name | Efficiency | Quantity |
| 1 | feeding | Fully automatic feeding machine | 2 | |
| 2 | stir | Vacuum mixer | 300L | 2 |
| 3 | coating | coating machine | 15m/min | 2 |
| 4 | Roller pressure | High precision roller press | 15m/min | 2 |
| 5 | Article points | Slitting machine | max50m/min | 2 |
| 6 | production | Die cutting machine | 100 | 2 |
| 7 | laminated laminated | Automatic laminating machine | 0.5 s/piece | 6 |
| 8 | preweld | Cell pole ear pre-welder | 5 | 1 |
| 9 | Cover plate welding | Cover plate welding machine | 5 | 1 |
| 10 | Into the shell | Automatic shell feeder | 5 | 1 |
| 11 | transport | Double speed chain conveyor belt | 2 | |
| 12 | Batteries handling | Cell carrier | 8 | |
| 13 | Blister tray | Blister tray | 400 | |
| 14 | Alloy plate | Automatic cap closing machine | 5 | 1 |
| 15 | X - RAY detection | X - RAY testing machine | 5 | 1 |
| 16 | Laser welding | Laser welding machine | 5 | 1 |
| 17 | Leak detection | Fully automatic helium mass spectrometer | 2 | 3 |
| 18 | bake | oven | ||
| 19 | Note liquid | Fully automatic liquid injection machine | 2 | 3 |
| 20 | sprigging | Automatic nailing machine | 5 | 1 |
| twenty one | Let stand | 5 | 1 | |
| twenty two | nail | Automatic nail extractor | 5 | 1 |
| twenty three | into | Into a tank | ||
| twenty four | The sealing | Laser sealing machine | ||
| 25 | Leak detection | Fully automatic helium mass spectrometer | 2 | 3 |
| 26 | cleaning | Automatic cleaning machine | 5 | 1 |
| 27 | detection | Fully automatic testing machine | 5 | 1 |
| 28 | coated coated | Fully automatic coating machine | 5 | 1 |
| 29 |
Paste PVC slices
|
Fully automatic insulation laminating machine | 5 | 1 |
| 30 | battery transfer | Battery transfer manipulator | 5 | 1 |
| 31 | battery transfer | Feeding manipulator | 5 | 2 |
| 32 | battery transfer | Conveyor belt | 5 | 3 |
2,Product
