18650 Battery Spot Welding Machine Lithium Battery Production Line

18650 Battery Spot Welding Machine Lithium Battery Production Line
Features Gallery Product Description Request A Quote
Product Name: 18650 Battery Spot Welding Machine
Spot Welding Speed: 0.3s / Point; 5000pcs / H
Y-axis Travel: 500mm
Z-axis Travel: 400mm
Power Supply: Single-phase 220V ± 10% / 50Hz ± 10%
Air Supply: 0.3 ~ 0.4Mpa
High Light:

18650 Battery Spot Welding Machine


18650 Battery Production Line


0.4Mpa Lithium Battery Production Line

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 80-120Working day
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTHS
Product Description

18650 Battery Spot Welding Machine Lithium Battery Production Line


Description Of 18650 Battery Spot Welding Machine

Spot Welder Machine battery assembly welding power source is used the latest welding technology "polarity switching" welding way, so far it is the advanced level high performance inverter resistance welding machine, it is special designed for the production of high-end mobile phone batteries, power battery, digital battery, mobile power battery, nickel metal hydride, nickel cadmium cell.


Feature Of 18650 Battery Spot Welding Machine

Spot Welding Machine is used for cylindrical battery pack automatic spot welding, it can weld both side together with high speed and good effect.

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. Battery Spot Welding Machine has a false spot welding and out of spot welding alarm function.

3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4. Welding needle replacement forecast reminder.

5. Own welding current monitoring system, real-time monitoring of welding current.

6. High speed and high precision micro processor (MCU) control, provide highly stable repeat welding.

7. High speed welding: quick start with high speed polarity switch reduces the temperature effect so that keep the welding surface clean and beauty.

8. Polarity switching: inhibition asymmetric effect makes the two point weld strength uniform and extend the electrode life.



Specification Of 18650 Battery Spot Welding Machine

Model ZCAD-20000
Y-axis travel 500mm
Z-axis travel 400mm
Spot welding speed 0.3s / point; 5000pcs / h
Maximum speed of motor drive 1000mm/s
The maximum number of batteries loaded 300pcs (standard 18650 lithium battery)
Number of groups for storing files 999 groups
Operating system Embedded system + man-machine screen
Transmission Stepper + imported precision linear guide (optional servo + screw)
Power supply Single-phase 220V ± 10% / 50Hz ± 10%
Air supply 0.3 ~ 0.4Mpa
Weight 400KG
Dimensions 900mm*1100mm*1800mm


Introduction of equipment functions and principles:

This equipment is suitable for the welding process of cylindrical battery after rolling groove production. The device is seamlessly connected with a groove rolling machine or an assembly all-in-one machine; Automatic completion of welding cap process. The cap is automatically arranged and loaded, and the front is connected with the discharge port of the groove rolling machine (assembled one integrated triplet machine) → the equipment is automatically loaded → identification of alignment by the direction of a pole ear → pole ear rubbing and straightening → two pole ears correction → welding cap → tension test → discharging and manual material collection (can be on the receiving machine). The front can be docked with orvance assembly triad. Adopt PLC control system; Touch screen man-machine interface; Human operation.


Advantage Of 18650 Battery Spot Welding Machine

1. Welding stroke can be customized

2. Suitable for various kinds of battery pack

3. High speed welding

4. 7-inch touch screen, more convenient operation, clearer display

5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.

6. Can store up to 999 groups of files, the file issimple to call,

does not require complicated line changing process

7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons

8. Electric or pneumatic spot welding machine is optional


Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.

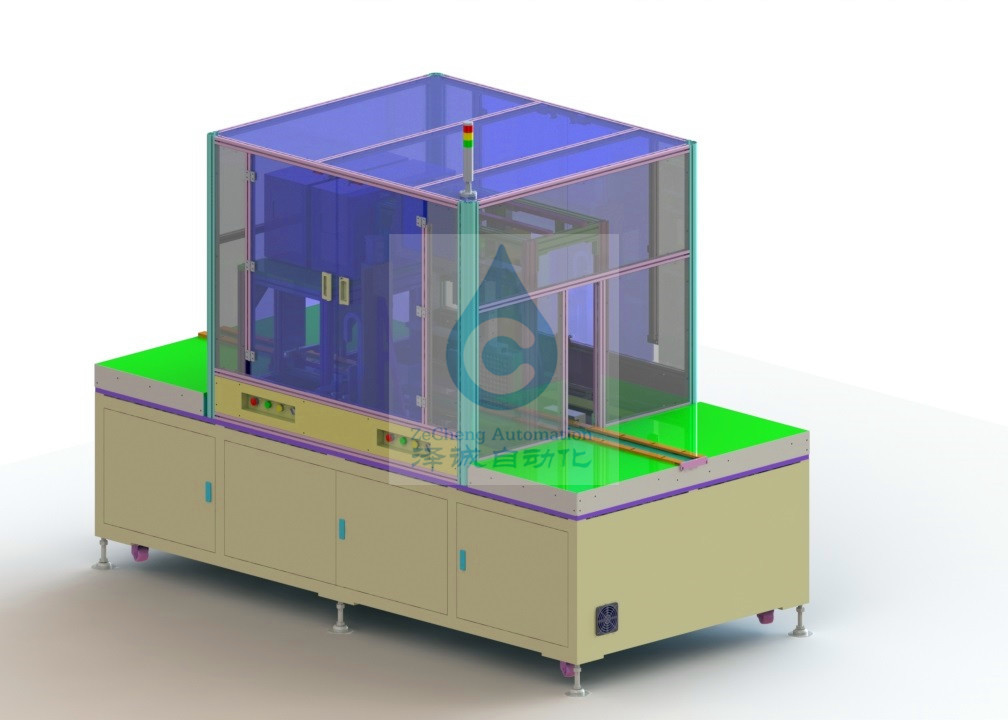

18650 Battery Spot Welding Machine Lithium Battery Production Line 0

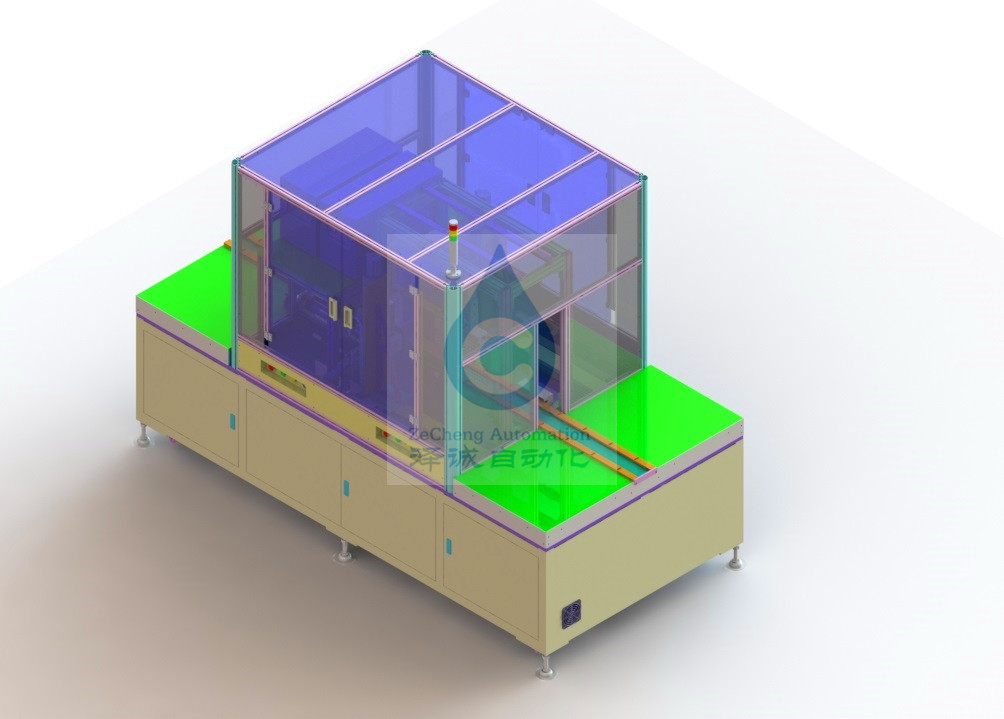

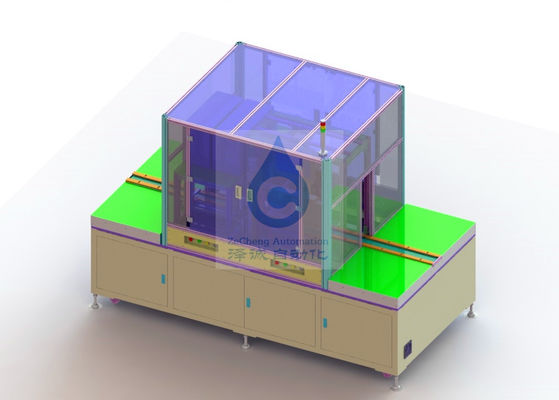

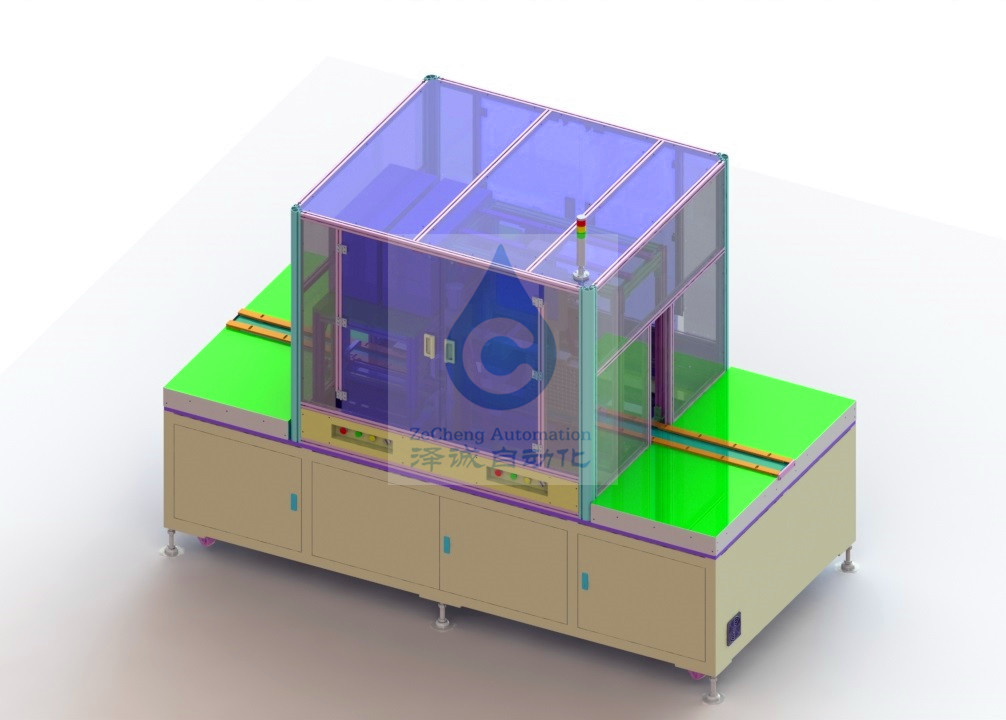

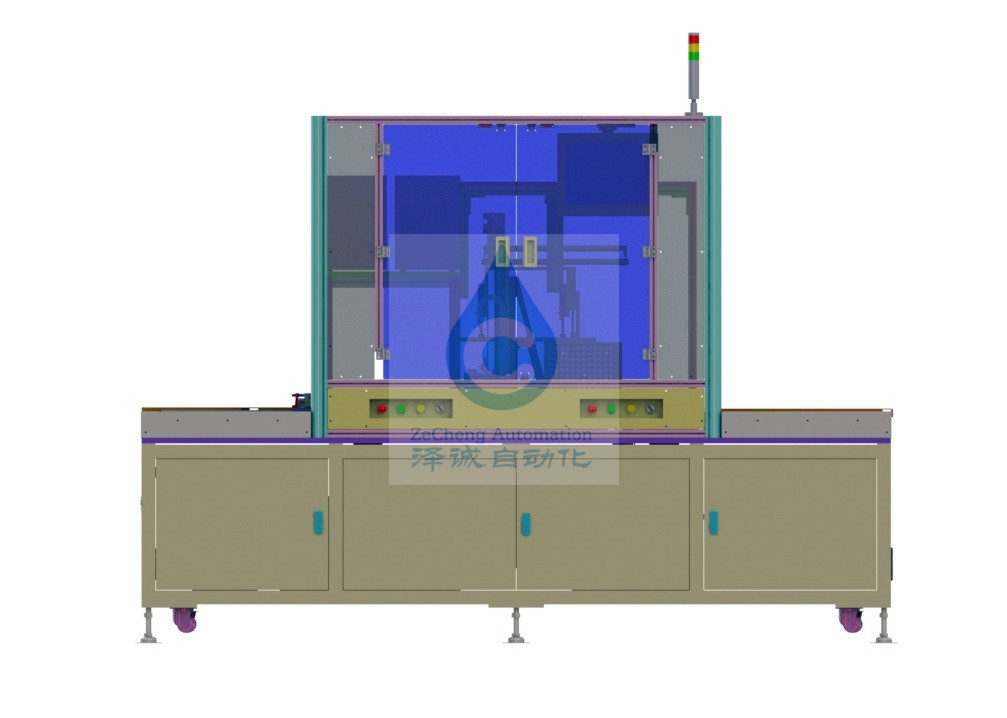

18650 Battery Spot Welding Machine Lithium Battery Production Line 118650 Battery Spot Welding Machine Lithium Battery Production Line 218650 Battery Spot Welding Machine Lithium Battery Production Line 3



Q1: Are you factory or trading company?

A: We are factory, with our R&D team, production department, from battery welding machine, etc design , drawing, process, assembly,commission, and final package and shipping.

Q2: Do you accept customization?

A2: YES. we accept customized machine. our strong R&D with 10+year rich experience can do customization.

Q3: About Price?

A3: Price is negotiable. It can be changed according to each battery welding or sorting machine internal configuration ,and also your order quantity.


Q4: About delivery?

A4. Standard welding machine can be delivered within 10days. Customized battery assembly machine can be delivered within 40days or negotiable.
