10 PPM Lithium Ion Battery Production Line Touch Screen Operating System

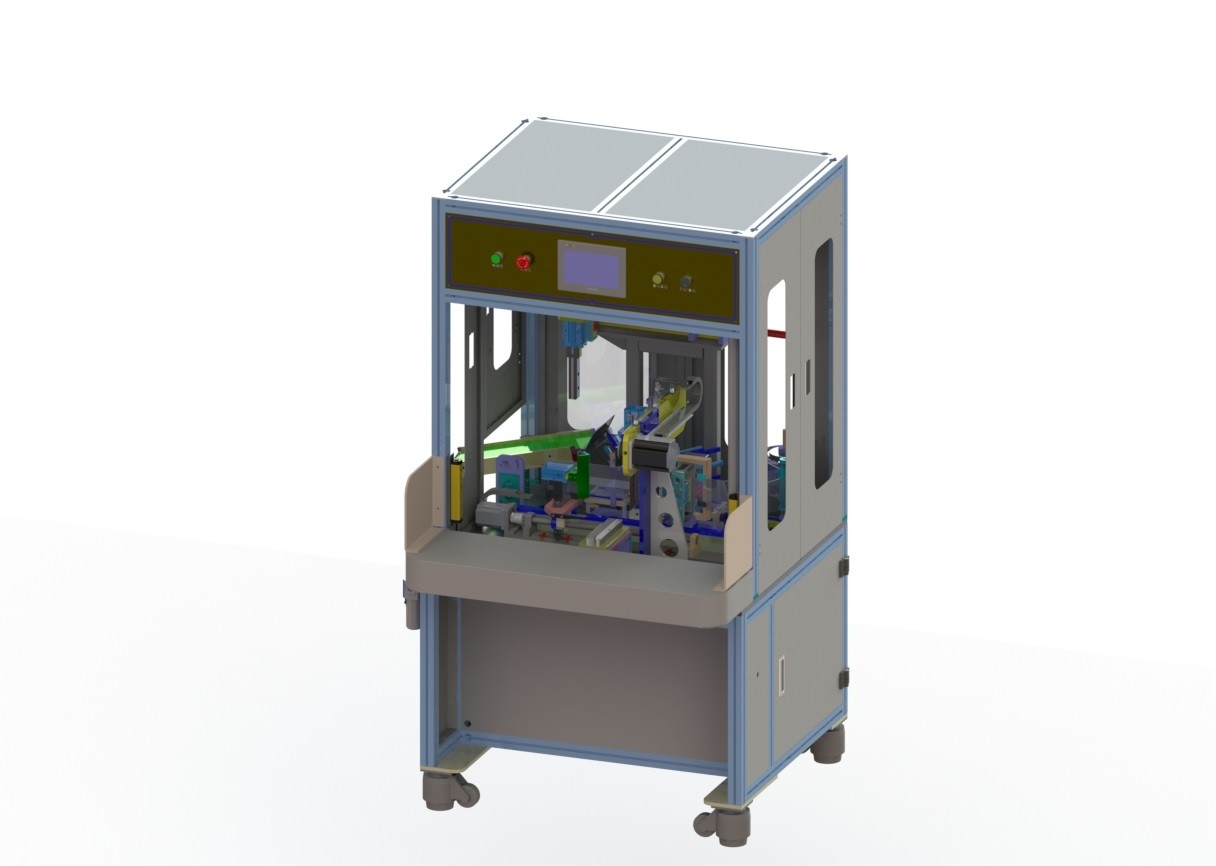

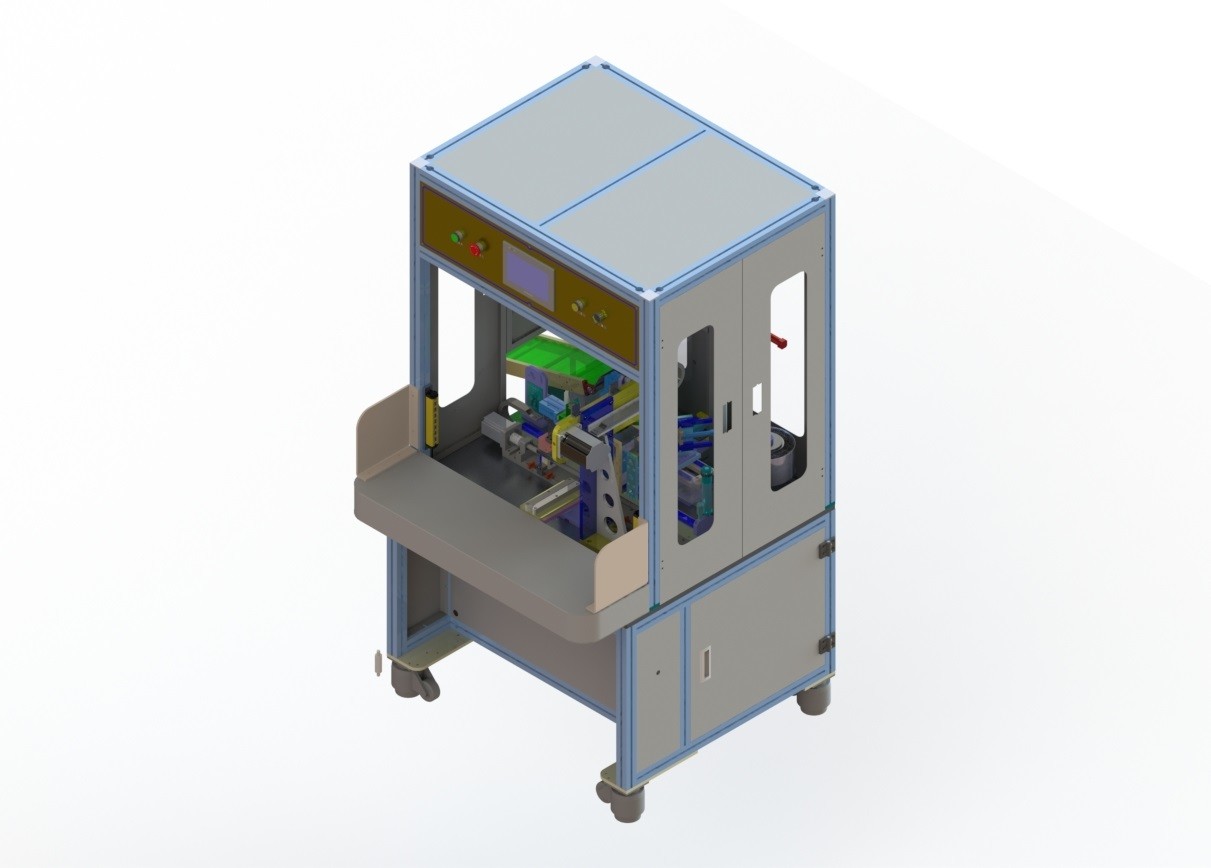

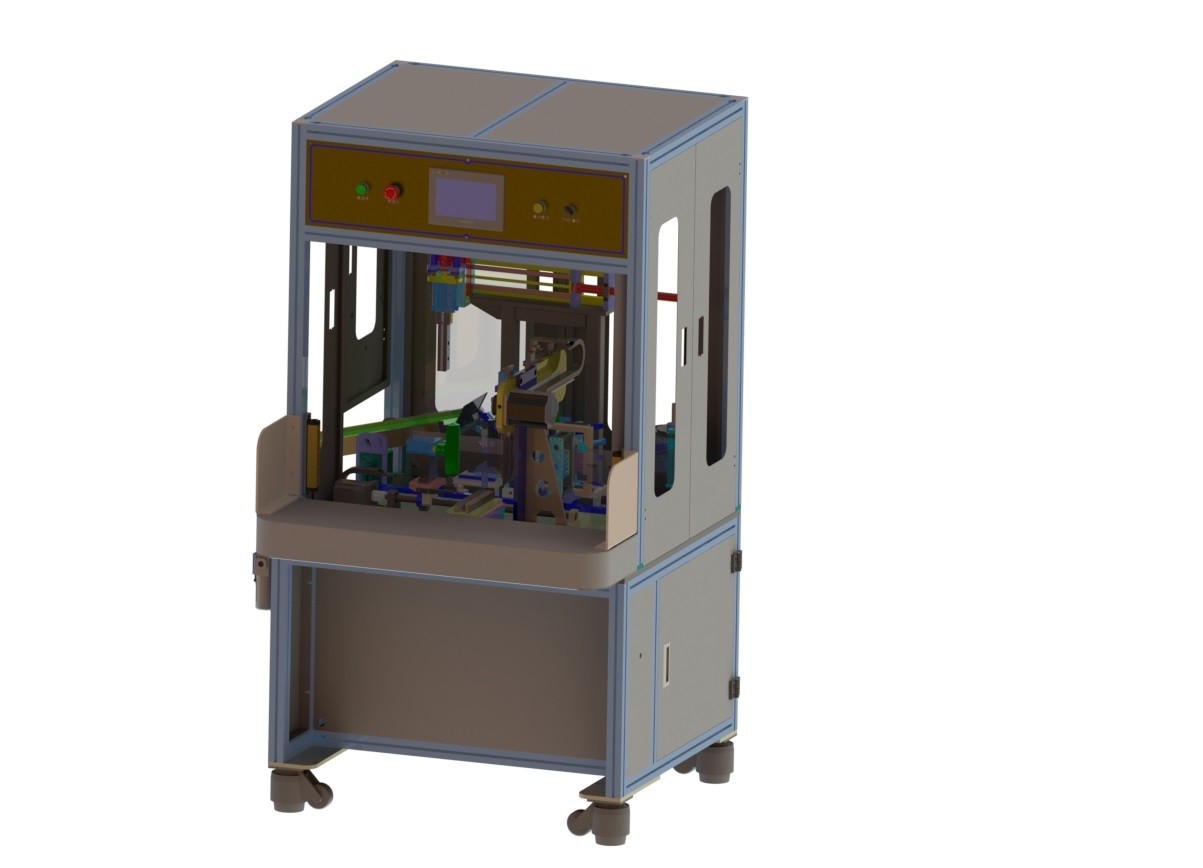

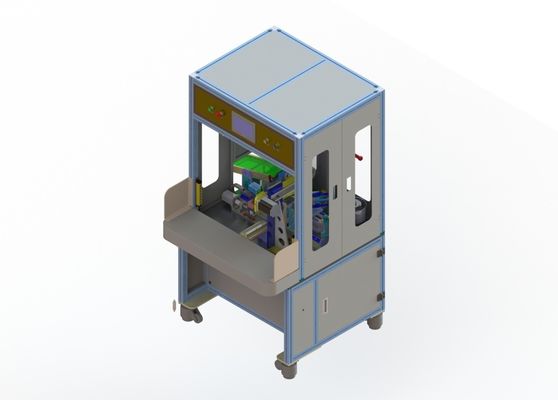

Lithium Ion Battery Production Line Laboratory semi-automatic aluminum-plastic film forming
1. The profile
The equipment USES the principle of gas-liquid supercharging to realize the output required for stamping forming, so as to convert the smaller air pressure into the larger hydraulic output, so as to drive the die to form the aluminum film
Characteristics -
-- manual feeding and automatic stamping.
-- high efficiency: 10PPM
-- low operating costs
The equipment has a high degree of automation and simple manual operation. One worker can operate 2-3 sets of equipment at the same time.
.
2.. Constitute a
The composition is shown below
| NO. | System composition | System configuration | Quantity |
| 1 | Rack system | 1 set of | |
| Welded skeleton construction | 1 | ||
| Substrate (plate plating) | 2 | ||
| 2 | Tensile system | 2 sets of | |
| Gas-liquid booster cylinder | 2 | ||
| Stretching mold | 2 | ||
| 3 | Cut off the system | 5 | |
| cylinder | 5 | ||
| Cut off the mold | 5 | ||
| 4 | Safety protection system | 1 | |
| Safety light curtain | 2 | ||
| Door protection | |||
| 5 | The operating system | 1 set of | |
| Touch screen - | 1 | ||
| 6 | Control system | 1 set of | |
| PLC of mitsubishi - | 1 |
3. To adapt to the specifications
3.1 adaptive objectsThe battery size
| Model | W width (mm) |
L length (mm)
|
The thickness of the H |
| ZFD01 | 40-100 | 80-200 | 5-20 |
3.2 technical parameters of the equipment
|
Machine specifications project |
ZLA01A | |
| Technical parameters | Efficiency (PPM) | 10 |
| Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
| Auxiliary time (S) | 2-4(transposition time) | |
| Working pressure (T) | 5 | |
| Temperature control accuracy | +/-1℃ | |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 2 | |
| Normal operating power (kw) | 1.5 | |
1. New equipment promise
Commitment
1. New equipment promise
Our company guarantees that all the components of equipment will be in completely new condition, none used components.
2. Confidential commitment.
Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.
3. After-sales service commitment
Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
