Automatic Simplex Laminating Machine Lamination Process Of Power Battery



1. equipment profile:



1.1 introduction to device functions and principles:

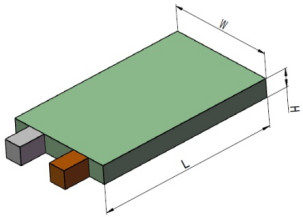

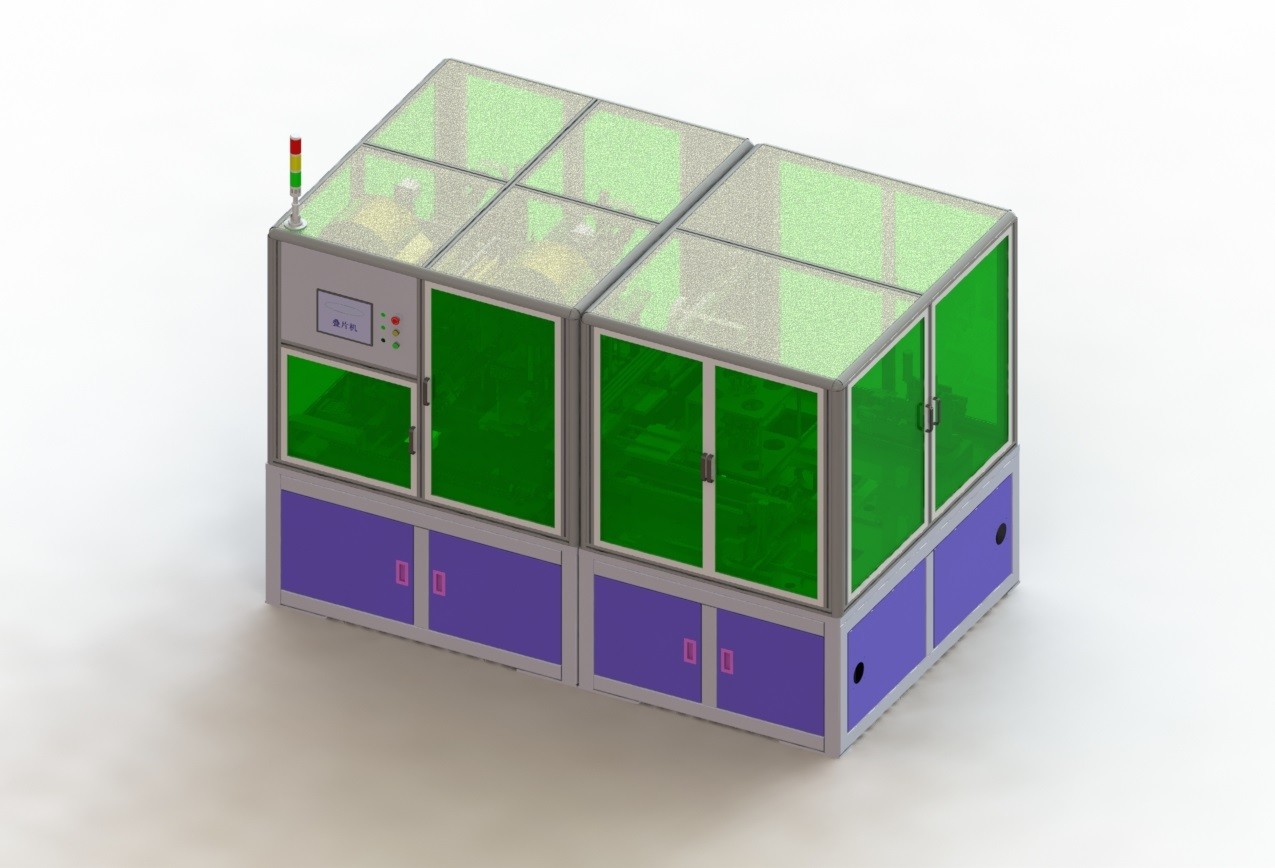

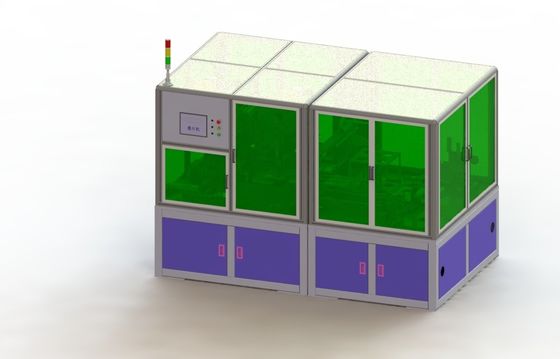

This equipment completes the automatic lamination process of power battery, and its main functions include pole sheet feeding, lamination, tail coil, adhesive and blanking. Diaphragm active unwinding, through the transition roller, the vertical tension mechanism into the main laminating table. The main lamination table drives the diaphragm to move back and forth, folding in a Z shape and placing the pole. Positive and negative manipulator from the positive and negative pole film box to take out the pole film, through the secondary positioning platform positioning, accurately stack on the main lamination platform. After stacking to the set number of pieces, stop laminating, automatic tail coil, edge bag U tape, automatically down to the discharging platform.



2. Equipment functions and technical parameters



Machine specifications

project

ZCCE04A-01
Stacking speed (S/ chip) 1.2 seconds/piece
Accuracy of alignment between pole and diaphragm Center deviation ≤±0.5mm (longitudinal)
Diaphragm to diaphragm alignment accuracy The end alignment deviation is less than ±0.3mm
Single chip alignment accuracy + / - 0.3 mm
Overall alignment accuracy of poles + / - 0.5 mm
Auxiliary completion time of a single cell (S) Single lap tail winding time ≤5s (if winding time is accumulated over many turns), and wrapping time ≤70s
Working time of once installed electrode (h) 0.5
Number of laminated Can be set
Outsourcing the diaphragm Diaphragm number adjustable
Finishing way Edge wrap U tape





3. Equipment use environment



(1) compressed air: 0.4 ~ 0.8mpa (4-8kgf/cm2), flow rate: 280L/min;



(2) equipment vacuum requirements: vacuum degree: -101kp ~ -50kp, flow rate: 8L/S;



(3) dust collection: party b shall have an exhaust fan in the equipment and set aside a dust removal interface;



(4) ambient temperature: 20 ~ 35℃;



(5) relative humidity: 5-55% HR;



(6) environmental cleanliness: no corrosive gas, liquid or explosive gas on site;



(7) power supply: AC220V, single-phase; Voltage fluctuation is less than ±10%; Power supply:6KVA.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
