Helium Spectrometer Device Automatic Ultrasonic Welding Cutting Forming


This equipment mainly solves the functions of pre-welding, cutting, vacuuming, short-circuit test, welding, cutting, protective tape and bending forming of flexible packaging power lamination batteries. Manually place the cell on the fixture of the machine for positioning, the machine to the multi-layer pole ear of the cell for automatic ultrasonic welding, cutting, automatic forming, automatic protection tape and other functions.


2. Device functions and parameters:




2.1 cell size range: L50~200mm; W50 ~ 150 mm; T3.0 ~ 12 mm


2.2. Positive electrode ear width 8~15mm AL, thickness:


2.3. Width of anode ear 8~15mm nickel thickness:


2.4. Center distance shall be ±1mm


2.5. Production beat: 5ppm.


2.6. Number of layers of electrode: ≤60 layers, thickness of positive electrode: 0.01mm, thickness of negative electrode: 0.01mm,


2.7. Welding area: 10X4,


2.8. The equipment can be operated manually or connected with the automatic production line.

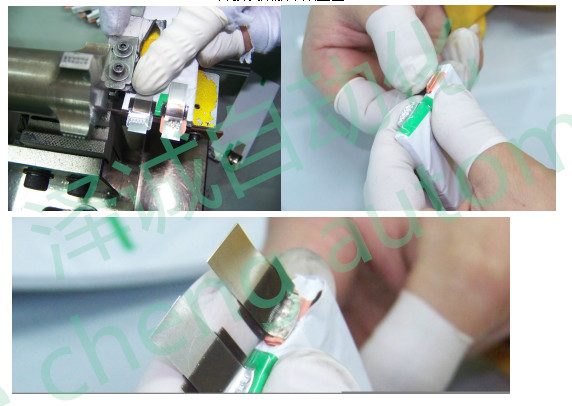

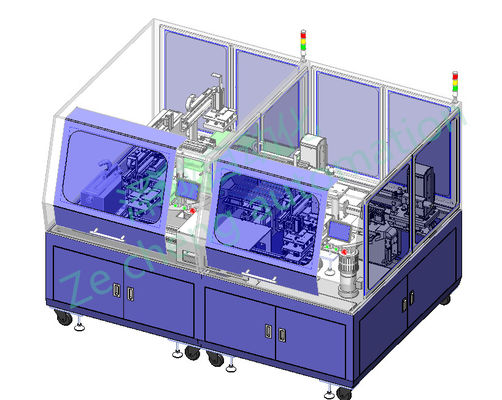

As shown in figure 1 below, therefore, the battery after lamination will be manually or mechanically placed on the feeding station position, positioning mechanism lifting, battery positioning, battery positioning, cylinder clamping battery. Turntable rotate 90 degrees, is the cathode welding machine will be extremely ear for welding, after welding, the turntable rotate 90 degrees, cut to cut very ear neatly, turntable rotate 90 degrees, strong dust collection agencies to dust collection pole ear position, after the turntable rotate 90 degrees, the manipulator automatically grab the battery, the feed conveyor belt, into the manipulator automatically grab the battery, the welding station into an ear wheel, wheel rotate 90 degrees, very ear feeding (the entire disk or disk material, need to customize according to customer's requirements), welding pole ear. After welding, the ultrasonic welder is returned, the turntable rotates 90 degrees, the powerful dust collector will vacuum the position of the earring, the turntable rotates 90 degrees, the battery short-circuit test, manual blanking.

2. Description of main equipment


1. Positioning system: a positioning system. After the battery is put into the clamping mechanism, the positioning mechanism rises and the cylinder moves to position the battery from three sides. The positioning push-plate adopts POM material to avoid damaging the electric cell.


2. Welding system of positive and negative lugs: the positive and negative lugs are fed with coil material. The inner diameter of the coil material is 76.2mm, and the width of the positive and negative lugs is 8-15mm. When the sensor detects the CELLING piece, the stepper motor sends the fixed length, the mechanical finger clips the pole ear, and the cutter cuts off the pole ear. When the electric cell rotates in place, the ultrasonic welding machine and the mechanical finger move forward. The mechanical finger sends the pole ear to the top of the pole sheet, and the ultrasonic welding machine welds.


3. Pole cutting ear system: after welding the electric cell of the positive and negative ears to the pole cutting station, the pole cutting mold moves forward, the cylinder moves, and the battery pole cutting ear is cut off, and the shape R is cut off.


4. Vacuum system: the powerful vacuum cleaner is placed in the case, the vacuum mouth is shaped like a trumpet, and the positive pole ear is cut off to absorb dust.


5. Manipulator system: the servo motor drives the grasping manipulator to grab the battery and place it on the welding turntable for positioning.


6. Turntable system: the turntable system is controlled by a 4-station precision CAM splitter, and the stepper motor drives the CAM splitter by sprocket wheel. Each station adopts cylinder clamping mechanism to clamp the electric cell. There are two sets of turntable system, one for pole lug pre-welding and one for pole lug welding.


7. Frame system: 40X80 square welding forming, surface baking paint (color according to customer's color plate requirements). The substrate is made of 25mm thick steel plate and its surface is electroplated.


8. Control system: the machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, omron PLC, relay, motor control device for control. And external connection, using connectors and terminal table. The ceiling of the power cable is partially perforated. Cables and air ducts between other equipment are wired and piped below.


Operating system


Touch screen operation. There is power on, emergency stop, manual, automatic button.


3. System composition


The serial number 2. Description of main equipment The system configuration The number of
1 System composition   1 set of
2 Rack system 40*80 square welding frame 1
    25mm substrate (plate plating) 1
    40*40 aluminum profiles, plexiglass 1
3 Positioning system (GPS)   1 set of
SMC cylinder - 4
Positioning plate - the POM 3
4 Welding system   2 sets of
Ultrasonic welding machine - new building force 2 (customer's own)
Pole ear winding mechanism 2
Polar ear calibration mechanism 2
Pole feeder - stepping motor handelbao 2
Precision ball screw -THK 2
Precision linear guide rail - silver loading 4
SMC cylinder - 6
5 Tangential ear system   1
Pole ear mold 1
SMC cylinder - 1
6 Dust collection system   1
Powerful vacuum cleaner 1
Dust collection agency 2
7 Manipulator system   1
SMC cylinder - 4
Linear guide - silver 2
Servo motor - panasonic 1
8 Turntable system   2
Electrical - handball 2
CAM splitter - warren 2
9 The operating system   1 set of
Touch screen - kunlun tong tai 1
10 Control system   1 set of
PLC, omron 1

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
