1800KG Helium Mass Spectrometer Fully Automatic Polymer Battery Coating Machine

1
MOQ
Negotiation, email communication
Price
1800KG Helium Mass Spectrometer Fully Automatic Polymer Battery Coating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1800KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

helium spectrometer

,

batch weighing machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-466
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

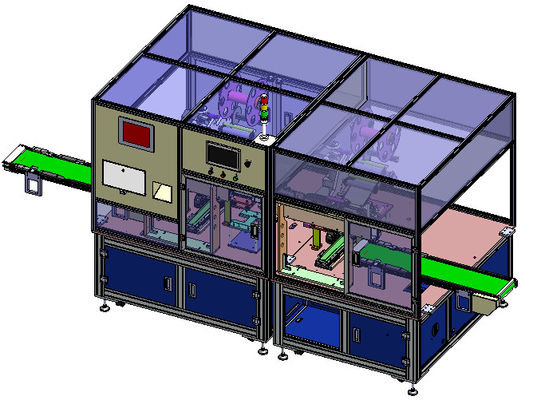

1800KG Helium Mass Spectrometer Fully Automatic Polymer Battery Coating Machine



1. Purpose:



It is suitable for semi-finished film (with airbag) and protective film of finished battery



2. Product features:



2.1: it can adapt to different specifications of polymer flexible cell envelopment, suitable for battery envelopment of different lengths, widths and thicknesses. The corresponding parameters of different batteries can be set through man-machine interface



2.2: the lamination method adopts the lamination method from the top to the bottom, which can be applied to the battery lamination (finished product and semi-finished product) of different specifications. The operation is simple and convenient, and the maintenance cost of the equipment is low.



2.3 laminating efficiency: 600PCS/h, manual continuous feeding, automatic laminating, automatic blanking, laminating effect consistency is good, easy to understand the operation (or link the automatic line).



2.4 application of batteries: polymer soft-coated battery semi-finished film and finished battery protective film.



2.5 scope of application: polymer soft-coated battery electrical core envelope



3. General requirements:



3.1 safe and reliable design and perfect protection facilities.



3.2. Easy operation and simple maintenance.



3.3 choose accessories as brand standard parts, durable, flexible interchangeability.



3.4 reasonable design of the workpiece, qualified quality, easy to fabricate the workpiece for detailed drawings.



3.5 the equipment adopts the concept of environmental protection and energy saving. The power source and driving parts are in line with low-power and low-energy electricity, and the off-standard components prohibited by the state are rejected



3.6 the materials used in the equipment and the noise generated during use shall comply with the national standards



4. Introduction of functional components

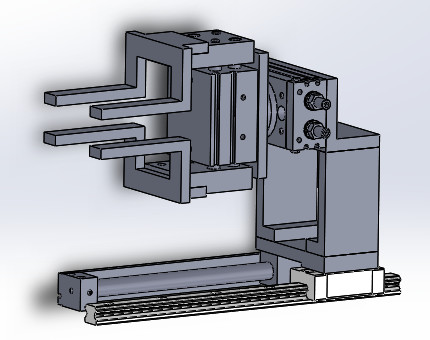

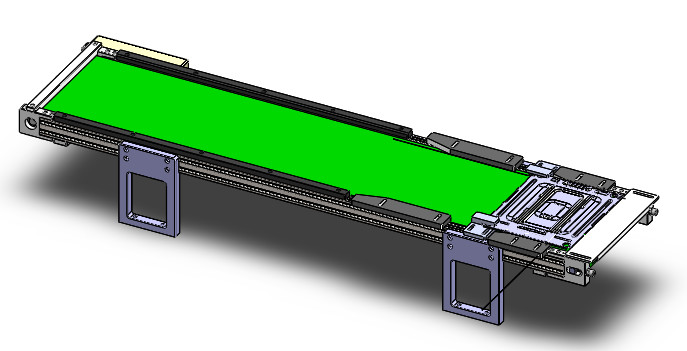

Batteries by feeding water feeding, sensors detect the battery in place after the manipulator automatically grab the batteries to sticker position, fixture locating battery, positioning platform driven by servo motor to move to the sticker position, pet membrane to expect cell surface, roller pressure on the diaphragm, servo motor, the pet film on the surface of the battery, at the same time, the rubber roller will pet film formation on the battery, after to set size, cutting knife cutting the pet film, servo motor to move, complete pet leftover material posted on the surface of the battery. The manipulator will paste the above battery grasp into the flip station, clamp the cylinder to clamp the battery to flip 180 degrees, the manipulator will pick up the battery, put into the next film station, paste the other side of the battery.



5. Technical parameters:



The serial number Technical parameters
1 Battery thickness 8-15mm.
2 Battery height 100-300mm.
3 Battery width 80-200mm.
4 Film precision +/-0.5mm
5 Product yield ≥99%, under normal conditions.
6 Failure rate ≤3%/3.6. Laminating method: manual feeding (or automatic feeding), automatic laminating (package laminating), and automatic blanking.
7 Material and specification coil PE protective film, inner diameter: 78mm, outer diameter 180mm
8 Mechanical efficiency of equipment 10PPM.
9 Voltage/pressure 0.6-0.8 KGF /cm. AC220V
10 Machine size length 1100mm wide *900mm* height 1250mm.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
