Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine

1
MOQ
Negotiation, email communication
Price
Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1200KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

helium spectrometer

,

automatic batch weighing system

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-396
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine



2.1.1.Brief description of pole sheet punching machine

The equipment is suitable for the blanking process of pull-type electrode belt of various alkaline batteries such as cadmium-nickel battery, zinc-nickel battery, nickel-hydrogen battery, iron-nickel battery, etc.There are two working modes: automatic and manual.Automatic working mode of the basic workflow, rolling machine, rolls installed in polar zone through the conveying mechanism, conveying mechanism according to the length of the pole piece dimension clearance feeding, bring into the pack on the punch mould, the mould of the upper die is installed in the press slide block, block up and down motion on the drive mode will be located in the mould of extremely belt cutting into slices.Through the blanking hole in the center of the die and punch table, the pole pieces are dropped into the belt conveyor under the punch. The belt conveyor transmits the pole pieces to the sorting station.The finished pole strip is formed into incomplete porous strip waste, which is wound on the reaping machine and collected into coil.

2.1.2. Design requirements

2.1.2.1.The maximum width of pole band is 220mm.2.1.

2.2.The maximum shear speed is no less than 80 times /min (when the length of the pole sheet is 75mm), and the shear speed is adjustable.

2.1.2.3. The maximum shear length is 300mm.

2.1.2.4. The device has at least two working modes: point movement and automatic operation.Set up two - handed safety console.

2.1.2.5. The safety door protection device is provided on the front and back of the equipment workbench. Only when the safety doors on both sides are closed can the equipment operate in the automatic working mode.

2.1.2.6. The operation control panel of the equipment has such functions as power switch, monitoring data of the running status of the equipment and LCD display of fault indication.

2.1.2.7 the sliding and rotating parts of the equipment, such as guide rail and spindle, are equipped with perfect lubrication devices.The equipment has the function of stroke, batch, maintenance count and so on.The equipment is equipped with the interface of distribution with the receiving, discharging machine, feeder and belt conveyor.

2.1.2.8 the rewinder is electrically driven to collect clearance, which is suitable for frequent starting.Voltage 220V (380V),50Hz.

2.1.2.9. After punching and shearing, when the pole strip wastes are stretched to the upper limit, the uncoiler stops collecting materials.When the waste strip falls to the lower limit, the winder unloads the material.The feeder must have a counterweight to ensure sufficient tension on the scrap strip to ensure the speed of the feeder.The diameter of the waste tape reel mounting shaft of the rewinding machine is 38mm.The rewinder shaft is provided with a waste reel orientation device.The position of the pole band position detection sensor is adjustable.The installation axial position of the speed reducer of the feeding device is parallel to the vertical axis of the feeding device.The receiving device has an independent electrical operation mechanism.

2.1.2.10. Coordinate the work movement of each part of the production line of pole shears, and each part has the function of independent operation and debugging.

2.1.2.11. The design, manufacture, installation and debugging of pole shears are in line with the relevant national and industrial specifications.

2.1.2.12. The manual working mode of pole plate puncher is used for equipment maintenance and debugging, new mold debugging and initial work.During the initial work, the manual drawing pole belt enters the feeding mechanism, and the manual guiding pole belt enters the punch mold. After several times of point operation, the waste material is wrapped around the feeding machine shaft and can be transferred to the automatic working mode when the normal feeding tension is generated by the rewinding machine.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.

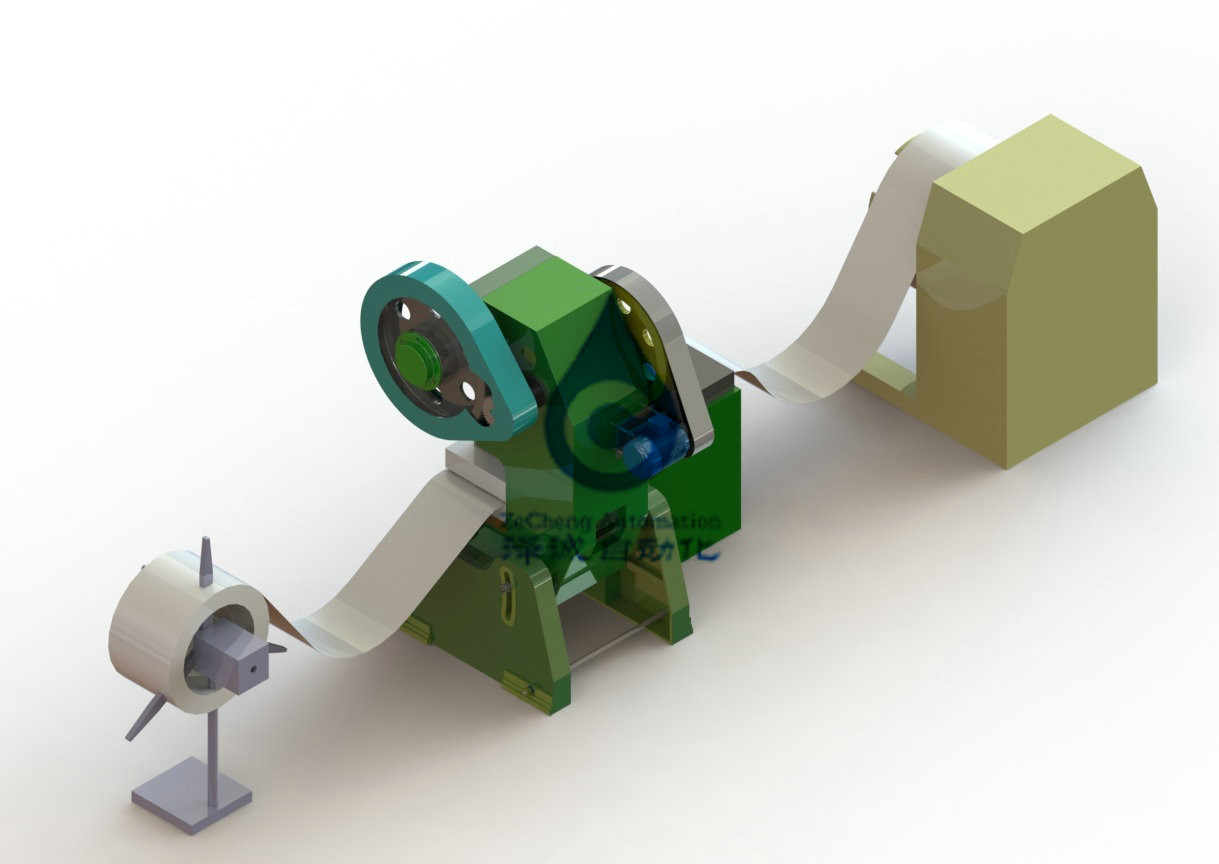

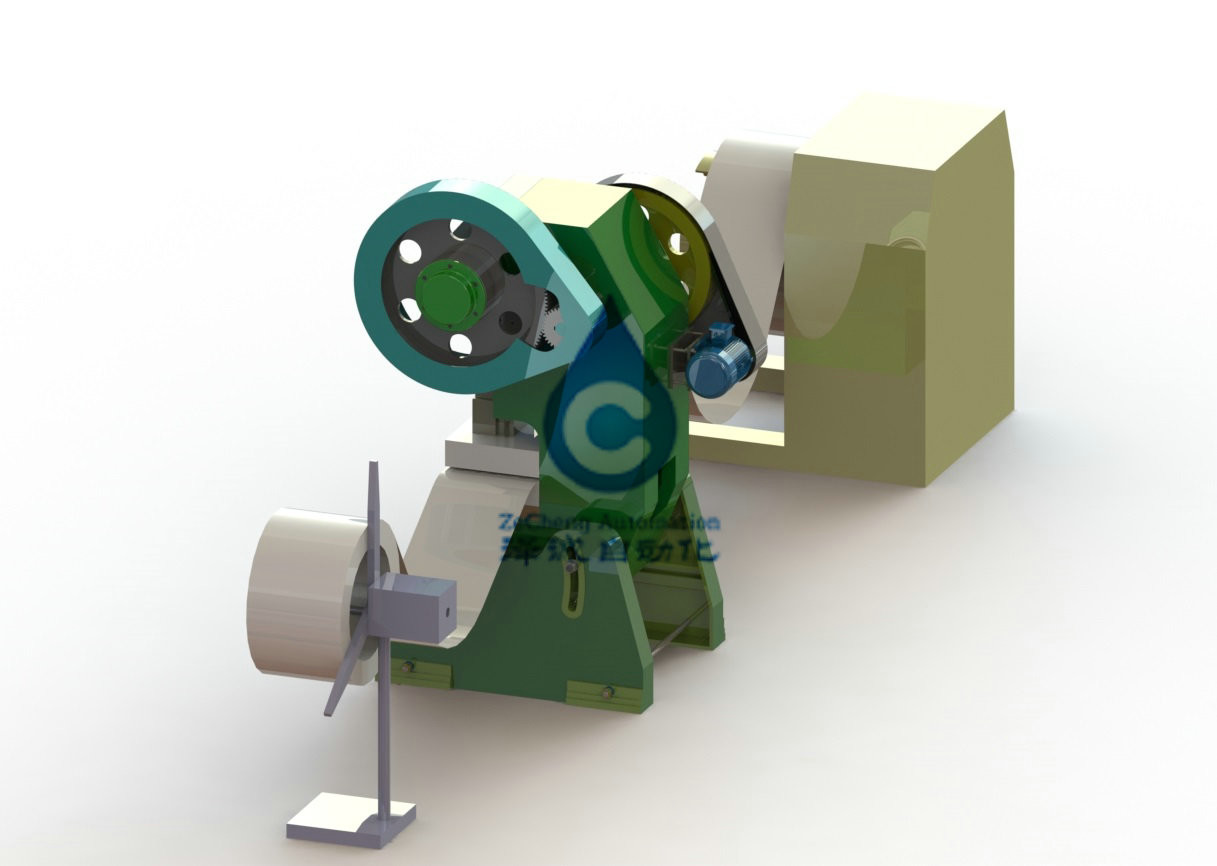

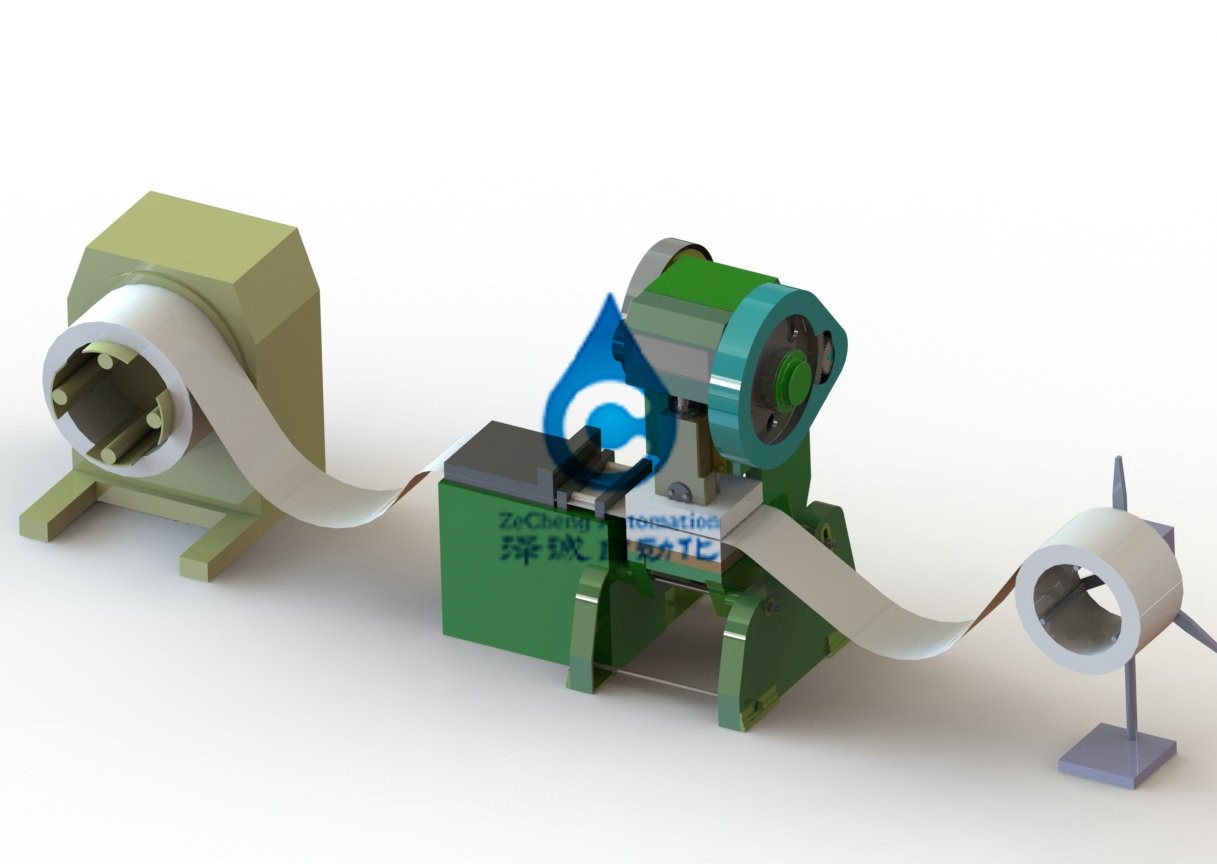

Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine 0Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine 1Cadmium Nickel Die Cutting Machine Zinc Nickel Battery Plate Blanking Machine 2
