Low Noise Battery Production Equipment Power Battery Adhesive Automatic Line

1
MOQ
Negotiation, email communication
Price
Low Noise Battery Production Equipment Power Battery Adhesive Automatic Line
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 3000KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

battery assembly equipment

,

battery pack assembly equipment

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-12
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

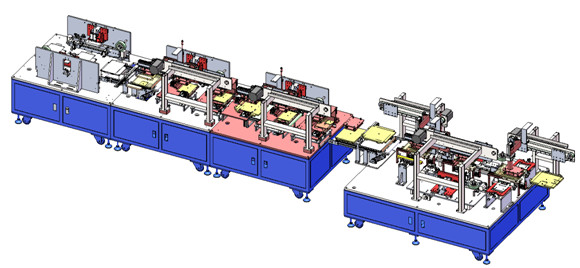

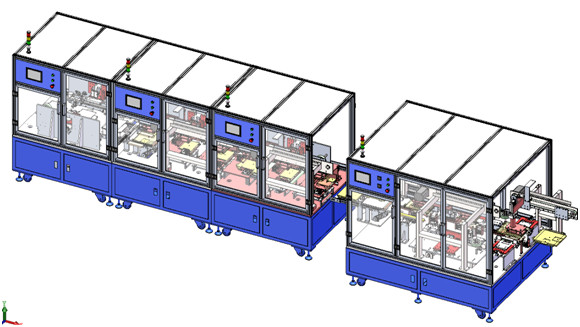

Low Noise Battery Production Equipment Power Battery Adhesive Automatic Line



Power battery adhesive automatic line 1, device function

It is mainly used for the adhesive of the periphery of the polymer battery cell in soft package. The main functions include: attaching adhesive tape at both ends of the battery, attaching u-shaped adhesive tape at both sides of the battery, folding at both sides, and then attaching u-shaped adhesive tape after folding at both sides. Achieve the whole process section without hand contact battery operation, improve the image of customers, reduce the poor operation of personnel, improve the consistency of quality.

2. Process requirements

2.1. Basic technical parameters of the equipment:



project Machine specifications note
The efficiency of 400PCS/H
The yield 99% No damage can be caused to the battery during the process of adhesive tape. The damage rate of the battery is less than 0.1%. After the repair of the defective adhesive tape, the quality rate is greater than 98%.
Rate of grain or move More than 97%


2.2 acceptance model:

2.3. Scope of specifications:

Functional sequences Equipment function Applicable battery range Efficiency (PPM) Width and precision of adhesive paper
Automatic top adhesive Tape the top ends to each other

L 100-260mm

W80-250mm

H5-15mm

400

10-15 mm + / - 0.5 mm



(standard with 12mm)

Automatic gluing of weld on both sides For both sides of the soft pack battery weld U

L 100-260mm

W80-250mm

H5-15mm

400

10-15 mm + / - 0.5 mm



(standard with 12mm)

Automatic gluing and rolling of both sides For both sides of soft-pack batteries

L 100-260mm

W80-250mm

H5-15mm

400

10-15 mm + / - 0.5 mm



(standard with 12mm)



2.4 size and specification of incoming battery:

Table 1: battery dimensions before gluing
The serial number The name of the

18/5000

Size (mm)

Accuracy (mm) note
A The width of the battery 80-250 -0.5~0
B Battery cell length 100-260 -0.5~0
C The length of the battery 110-270 -0.5~0
D Flanging height 5-15 -0.5~0
T The thickness of the battery 5-15 -0.4~0



2.8. The device can realize the function of battery adhesive tape as shown in the figure above. The adhesive tape is firmly stuck, and the adhesive tape has no bubbles or wrinkles.

  1.
  2. 2.9 the equipment has the counting function, which can record the total number of production per shift and the cumulative total number of production. The operator cannot change the above data, so password protection can be achieved.
  3.
  4. 2.10. During the whole project of the battery operation, no damage to the battery or the battery surface caused by battery rupture or scratch shall occur.
  5.
  6. 2.11. By replacing the corresponding jig, the side adhesive of all types of batteries within the required size range can be realized. The jig is easy to replace and the replacement cycle is less than 1 day.
  7. 5. Environmental requirements
  8. 5.1. Compressed air: 0.4 ~ 0.7mpa
  9. 5.2. Ambient temperature: 20 ~ 35℃
  10. 5.3. Relative humidity: 5 ~ 55% HR
  11. 5.4 power source: AC220V, single-phase; Voltage fluctuation is less than ±10%; Power supply: 11KVA
  12. 5.5, truth: -101kp ~ -70kp, provided by party a.
  13. 6. Installation and debugging
  14. 6.1 when the equipment arrives at the demand site, the demander shall provide the site power, air source, vacuum and acceptance materials for installation and debugging free of charge. The supplier shall be responsible for the installation and debugging of the equipment, and carry out trial production of 100, 500, 1000 and 5000PCS to gradually increase the production capacit
  15. Cooperation commitment

    1. New equipment promise

    Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

    2. Confidentiality commitment

    Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

    3. After-sales service commitment

    (1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

    (2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

    (3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
