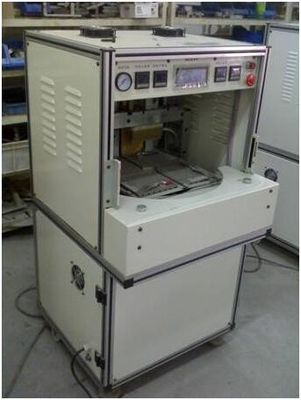

8 PPM Lithium Ion Battery Production Line Laboratory Top Side Sealing Machine
1. The profile
The device USES hot melt to fuse the aluminum-plastic film to seal the battery.
Characteristics -
-- manual up and down battery, machine automatic rotation, automatic fusion aluminum plastic film.
-- high efficiency: 8PPM
-- visual operation, temperature and time can be set from the touch screen.
-- low operating costs
This equipment automation equipment degree is high, manual operation is simple, a worker can operate 1 equipment at the same time. .
2.. Constitute a
The composition is shown below
| The serial number | System composition | The system configuration | The number of |
| 1 | Rack system | 1 set of | |
| Aluminum frame structure | 1 | ||
| Substrate (plate plating) | 2 | ||
| 2 | Rotary table system | 1 set of | |
| CAM splitter | 1 | ||
| The motor | 1 | ||
| Back to the table | 1 | ||
| 3 |
Heat sealing system
|
1 set of | |
| cylinder | 1 | ||
| Heat sealing knife | 3 | ||
| Linear bearing | 6 | ||
| 4 | The clamping system | 2 sets of | |
| The clamping components | 2 | ||
| 5 | Safety protection system | 1 | |
| Safety light curtain | 2 | ||
| Door protection | |||
| 6 | The operating system | 1 set of | |
| Touch screen - | 1 | ||
| 7 | Control system | 1 set of | |
| PPLC of mitsubishi - | 1 |
3. To adapt to the specifications
3.1 adaptive objects
The battery size
| model | W width (mm) | L length (mm) | The thickness of the H |
| ZGA01 | 40-100 | 80-200 | 5-20 |
3.2 technical parameters of the equipment
|
Machine specifications project |
ZGA01A | |
|
Technical parameters |
Efficiency (PPM) | 8 |
| Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
| Auxiliary time (S) | 1(transposition time) | |
| Working pressure (T) | 5 | |
| Temperature control accuracy | +/-1℃ | |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 2 | |
| Normal operating power (kw) | 1.5 | |
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
