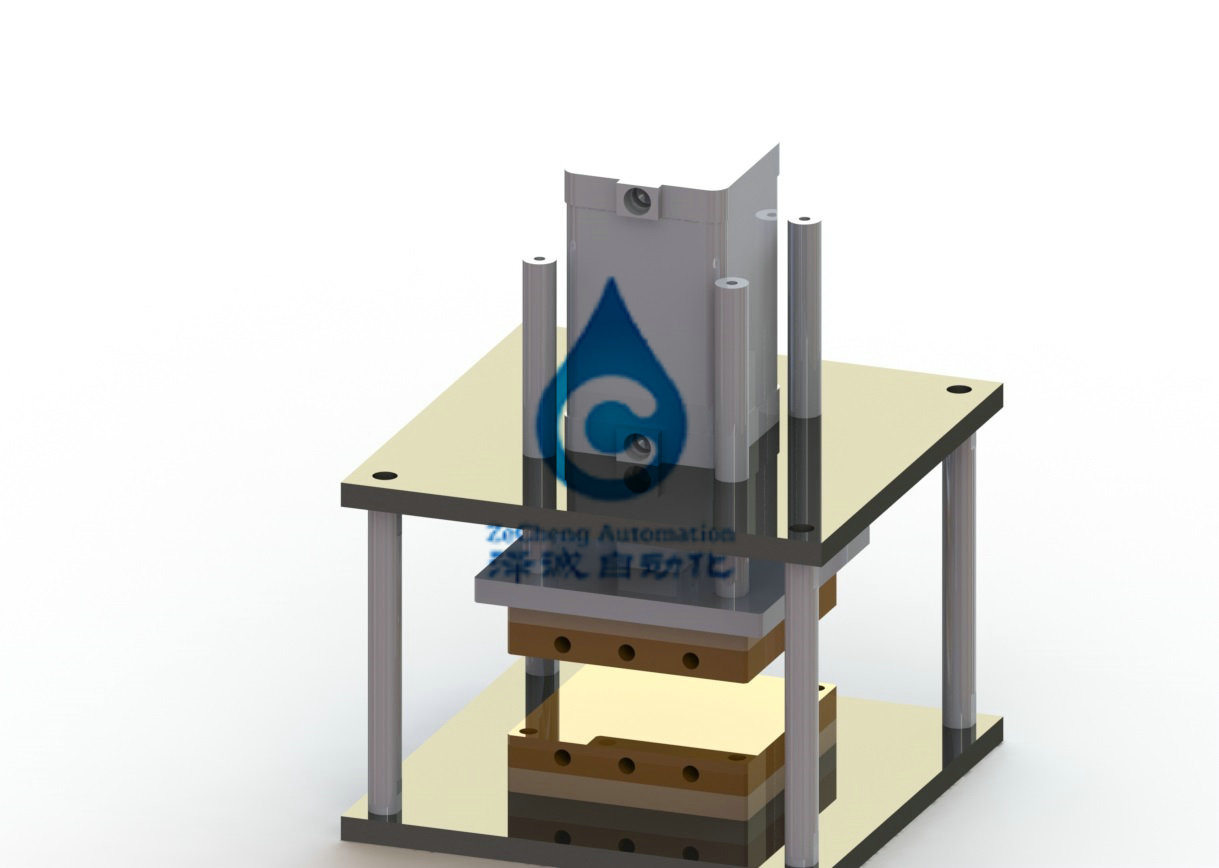

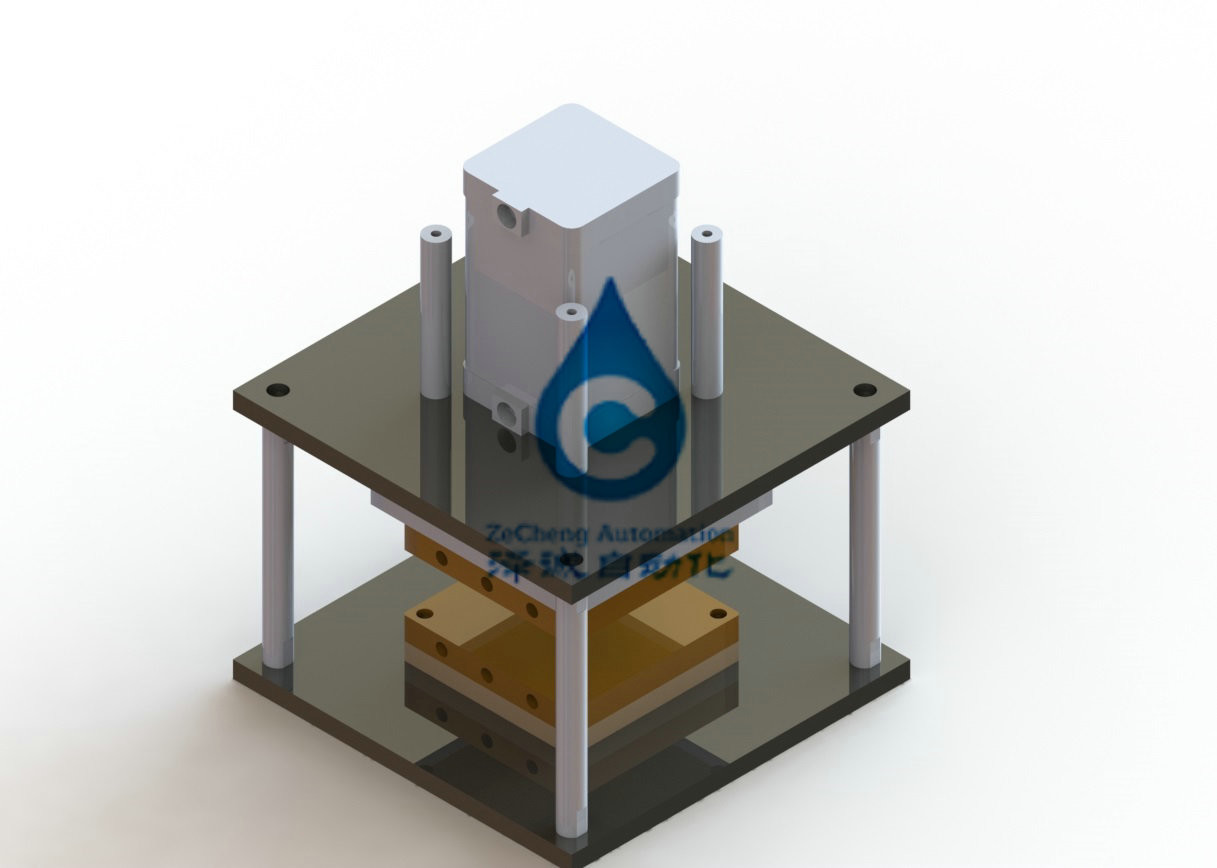

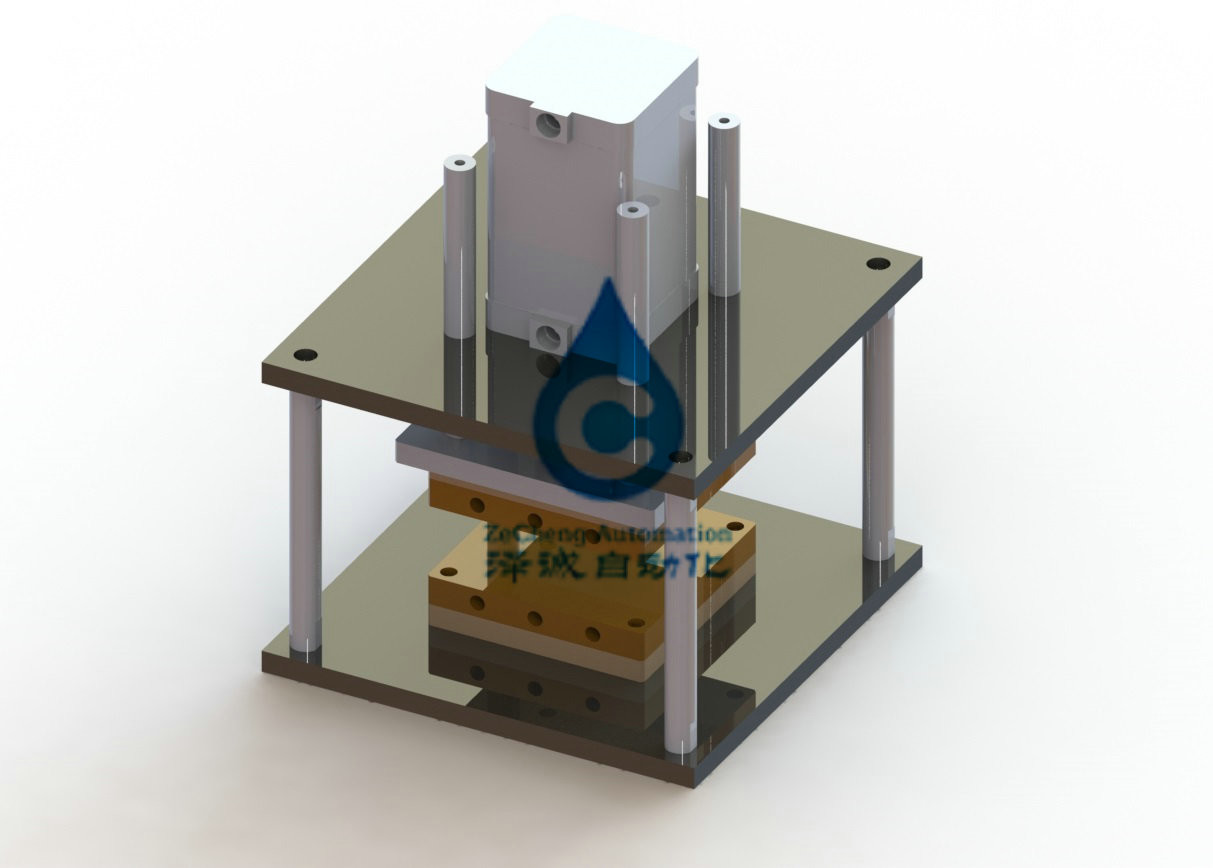

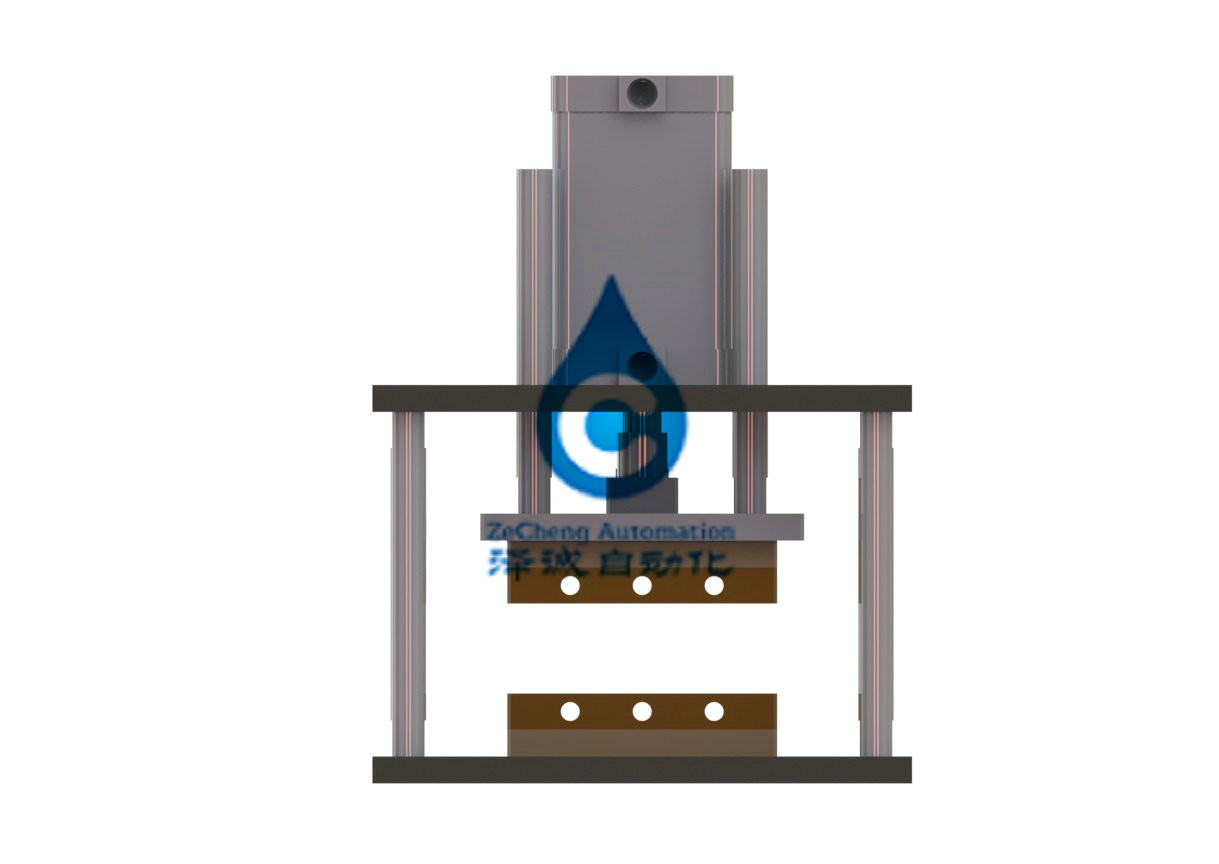

The device is mainly used to flaten the rolled square cell or the square cell after lamination. The pressure and temperature can be adjusted according to the needs.
Characteristics -
-- gas-liquid booster cylinder controls the pressure, and the pressure can be adjusted.
-- low operating costs
This equipment automation equipment degree is high, manual operation is simple, a worker can operate 1 equipment at the same time. .
2. To adapt to the specifications
2.1 adaptive objects
The battery size
| model | W width (mm) | L length (mm) | The thickness of the H |
| ZFD01 | 40-100 | 80-200 | 5-20 |
2.2 technical parameters of the equipment
|
Machine specifications project |
ZLA01A | |
| Technical parameters | Efficiency (PPM) | 10 (according to hot pressing time and battery size) |
| Fixture width adjustable range | Adjustable or replacement, reference to adapt to the battery model | |
| Auxiliary time (S) | 2-4(manual loading and unloading time) | |
| Working pressure (T) | Max. 1 or 3T | |
| Temperature control accuracy | +/-1℃ | |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 2 | |
| Normal operating power (kw) | 1.5 | |
3. Mechanical specifications
3.1 frame system
The device has a square welding frame, and the substrate is a steel plate with a thickness of 25-30mm. The surface is electroplated.
3.2 hot pressing system
The upper and lower pressure plate is heated through the heating pipe, the temperature controller controls the temperature, the hot pressing time is set from the touch screen, and the pressure of the gas-liquid pressure cylinder can be adjusted.
3.3 operating system
There is power on, emergency stop, manual, automatic button.
3.4 control panel
The machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, control PLC, relay, motor control device, etc. And external connection, using connectors and terminal table. PLC adopts mitsubishi. The ceiling of the power cable is partially perforated. Cables and air ducts between other equipment are wired and piped below.
5. Energy medium
Please provide the following energy medium
5.1 power supply
1) instantaneous change of voltage AC220V± 10% counterphase
2) frequency: 50Hz±1Hz
5.2 air
1) pressure 0.5mpa 5kgf/cm2
2) capacity 201/min
6. Environmental conditions
The device can operate without barrier under the following environmental conditions.
1) temperature dynamic temperature: 5-35℃
Storage temperature: 0-40℃
2) humidity 30-80% but should not dew.
3) environmental cleanliness shall not be lower than 100,000;
4) there is no corrosive gas, liquid or explosive gas on the site
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
